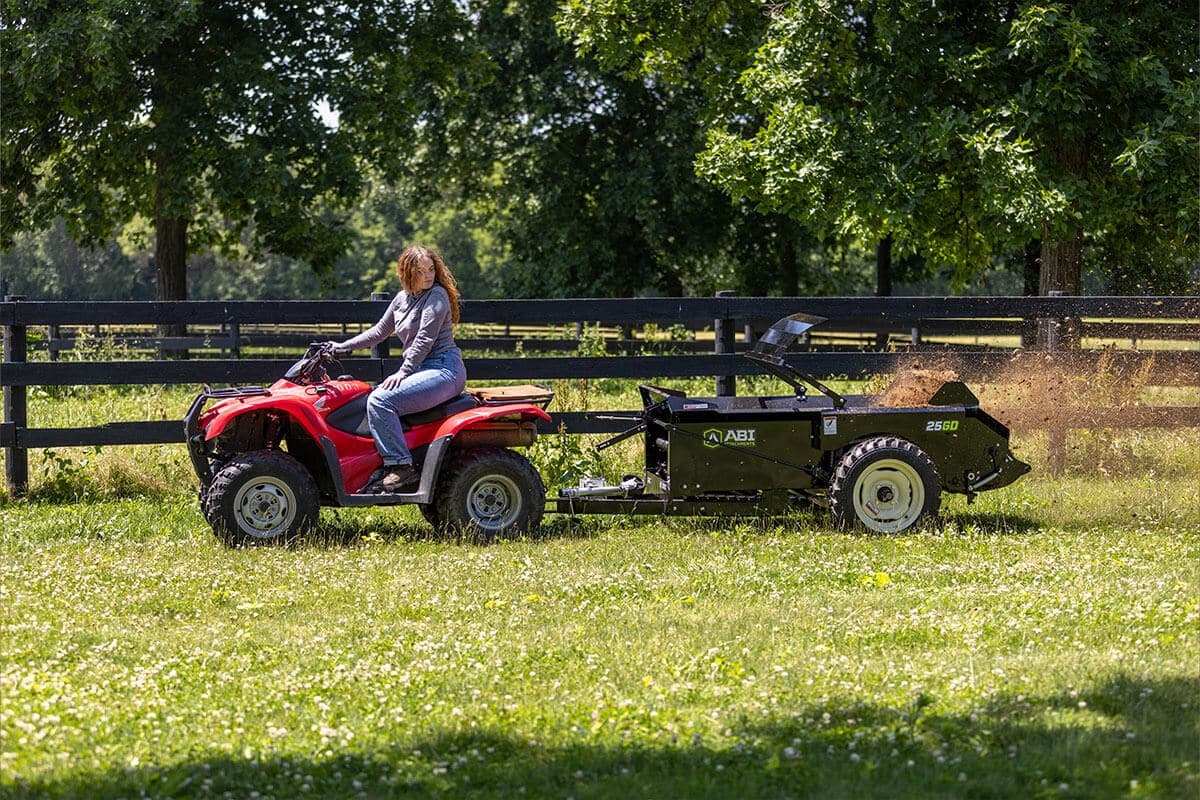

25ft³ Compact Ground Driven Manure Spreader

Create an Eco-Balanced Pasture

The 4-Speed Application Flow Control enables you to control the flow and volume of manure your muck spreader applies to the ground. Using the spreader’s front manual levers, adjust the rate of manure fed to the beater bars via the apron web between four different speeds to speed up or slow down your spreading. By controlling the output of manure, users can choose to empty their manure as fast as possible or slowly apply manure to maximize fertilization to specific areas in the pasture. Variable flow control also helps you adjust your mini manure spreader to pulverize a broader range of manure types, consistencies, bedding materials, and stages of decomposition without causing damage to your ground driven manure spreader. Improve the eco-balance and growth of your pasture with controlled applications of manure from your ABI 25ft³ manure spreader.

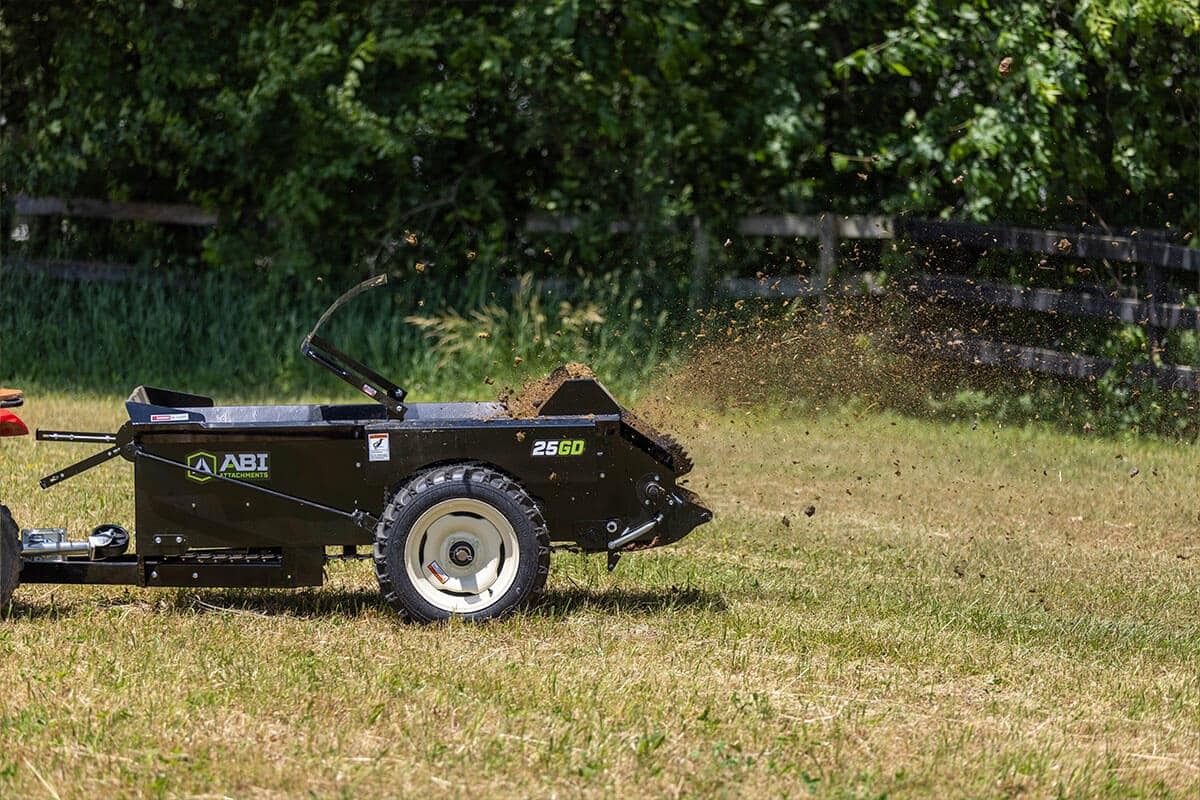

Shred Before You Spread

What makes ABI’s mini manure spreader unique is how its 2-stage inline shred and spread system can pulverize manure into fine shreds to evenly spread fertilizer over the ground. The system includes two beater bars fitted with 32 blades to ensure every bit of manure is thoroughly shredded. Once the manure is fed through the beater bars, the manure fines are evenly distributed in a fine layer over the ground via eight spreading paddles on the back of your dung spreader. By finely shredding manure before you spread it, more manure is exposed to the sun’s UV rays, helping it break down faster to encourage better pasture growth and reduce the risk of colic, odors, or pests from affecting your animals.

An Industrial-Grade Seal to Guard Your Steel

Each ABI mini manure spreader box comes standard with an industrial-grade box liner to create a better seal against manure leakage. Our engineers use a special epoxy liner to coat the inside of the mini spreader box, giving it an impermeable and smooth protective seal that can resist severe corrosion or abrasion from urine-filled manure. Since epoxy liners are often used to protect underground sewage tanks and pipelines, you operate your lawn tractor manure spreader with ease knowing the spreader box is secured from corrosion due its heavy-duty protective liner.

For Maximum Manure Loading & Towing

The bottom flooring of our mini manure spreaders is made of a premium tongue-and-groove polyvinyl lumber. The spreader’s poly-lumber flooring is extremely thick to ensure your muck spreader can support heavy manure loads, allowing you to load your attachment up to maximum capacity. Better yet, the tongue-and-groove construction of the poly-boards prevents excessive warping, wear, or damage to the apron web. While our poly-lumber flooring is built to last long, ABI also offers a limited lifetime flooring warranty to support customers.

Rust-Resistant Chains and Slats

Assembled using interlocking chains and slats, the apron web ensures your mini manure spreader releases a stable, consistent rate of fertilizer at your desired speed. Better yet, the chains and slats are made from high-quality stainless steel, making the web chemically resistant to corrosion from urine-laced manure. When operating your spreader, the apron web is driven via the advanced ground drive system from the left wheel, causing it to move and push manure towards the back. With the right wheel running the beater bars, the apron web pushes manure out the back, ensuring everything is finely shredded and spread over the soil as you tow.

Protect Components from Extreme Corrosion

All components on our mini manure spreaders get a premium 2-ply commercial-grade coating for additional protection against corrosion. After being sand-blasted to ensure perfect adhesion of the paint, the components are coated in a black gloss acrylic urethane paint (PPG AUE-370) that’s twice as thick as Rust-Oleum which can be easily repaired or touched up during future maintenance. What’s unique about this special finish is how it makes your mini manure spreader impermeable to moisture or animal urine from manure, eliminating the risk of rust forming underneath the finish layer and damaging your spreader.

Drive Power to Multiple Components

ABI utilizes an advanced ground drive system to provide power to our mini manure spreaders. The ground drive system works by connecting the wheels of the muck spreader to operate and drive power to specific components. The right wheel drives the beater bars system that shreds and spreads manure, while the left wheel drives the apron chain in the spreader box which pushes manure towards the beaters and out of the spreader. What’s more, the wheels are designed to move in unison, keeping the components at compatible operating speeds while also maximizing traction for your dung spreader. From tight turns on rough pastures to wet or icy ground, this advanced ground drive system gives you the power to properly spread wherever and whenever you need it.

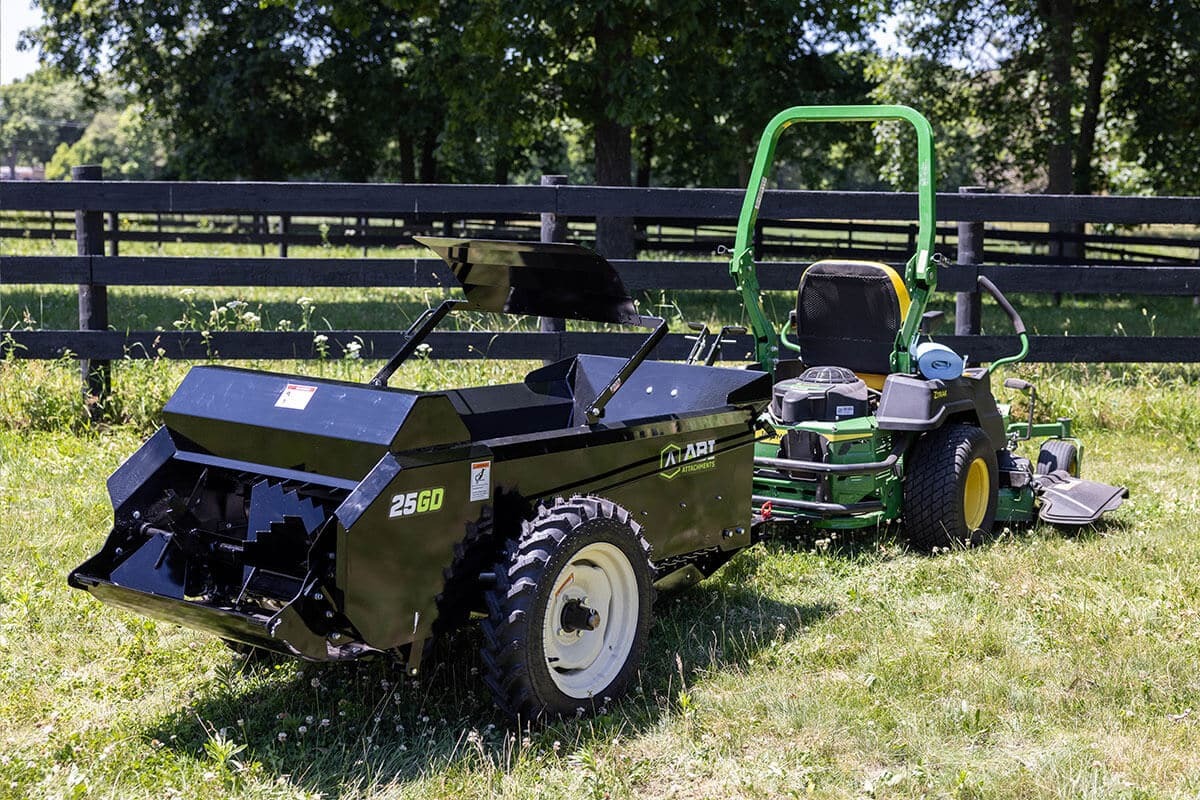

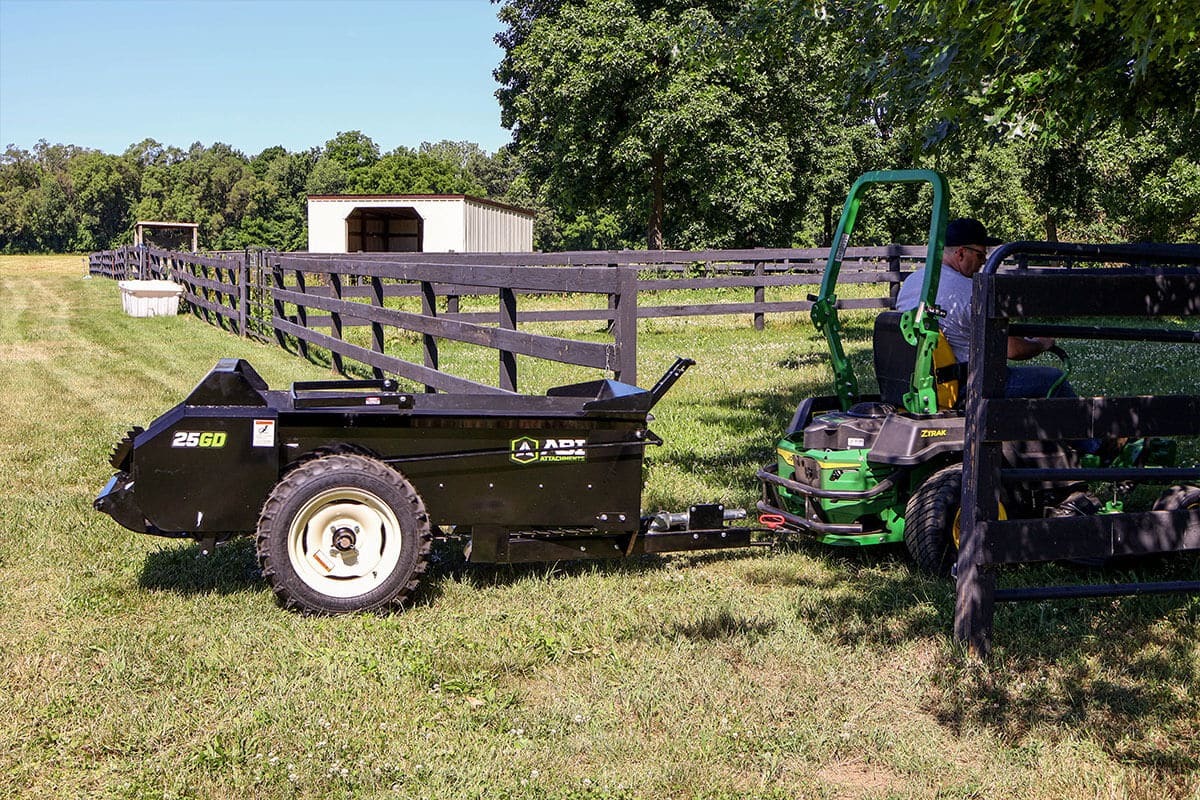

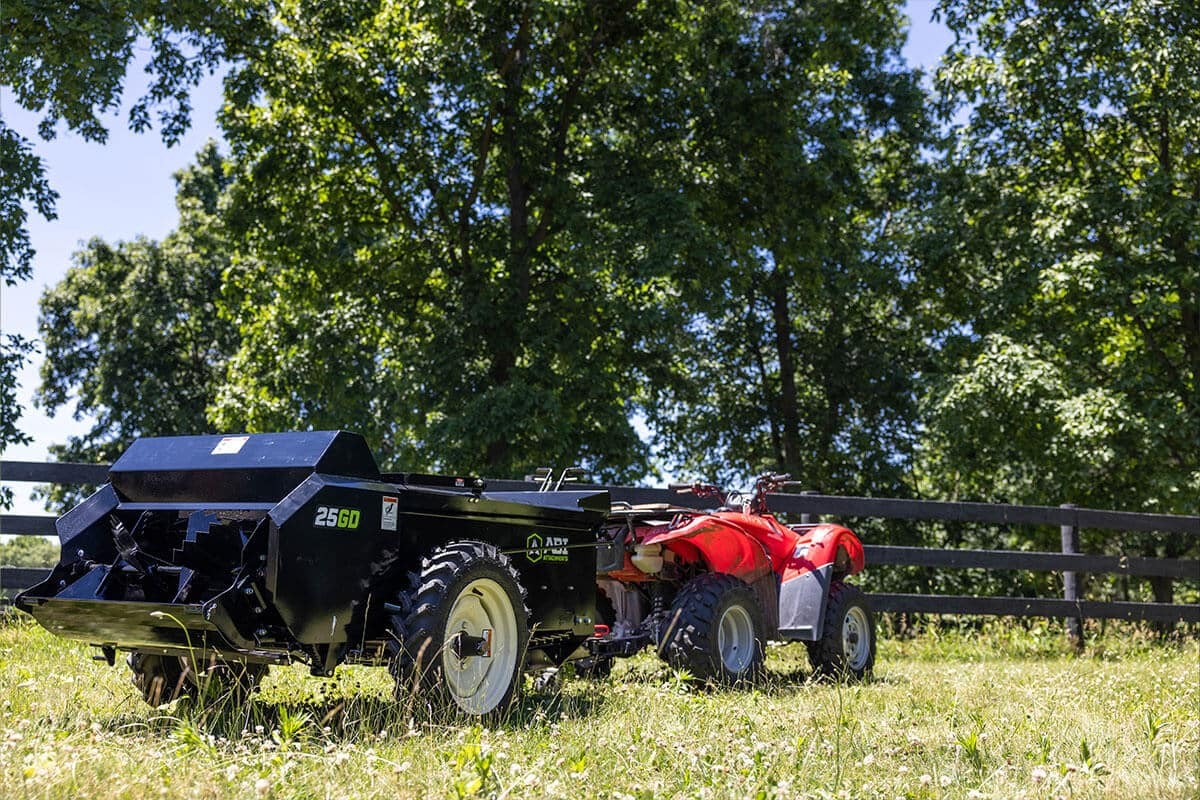

Quick & Easy Hookup to Small Tow Vehicles

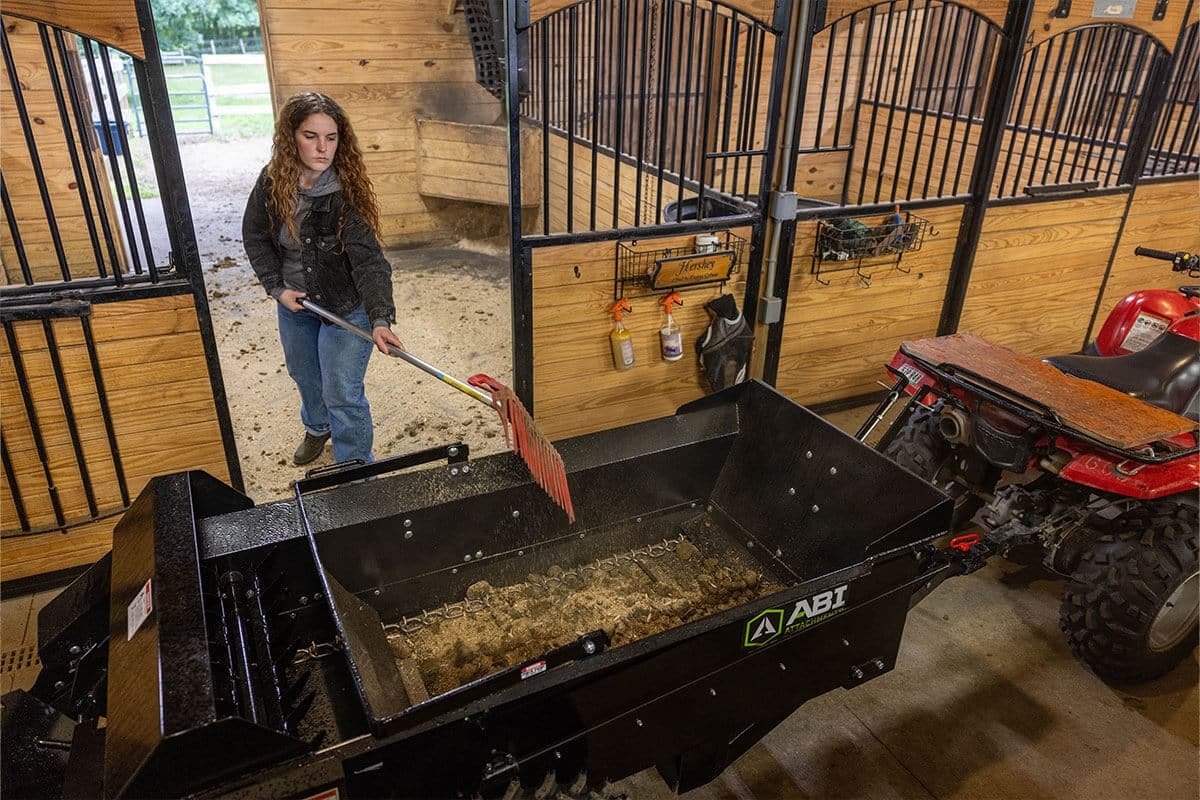

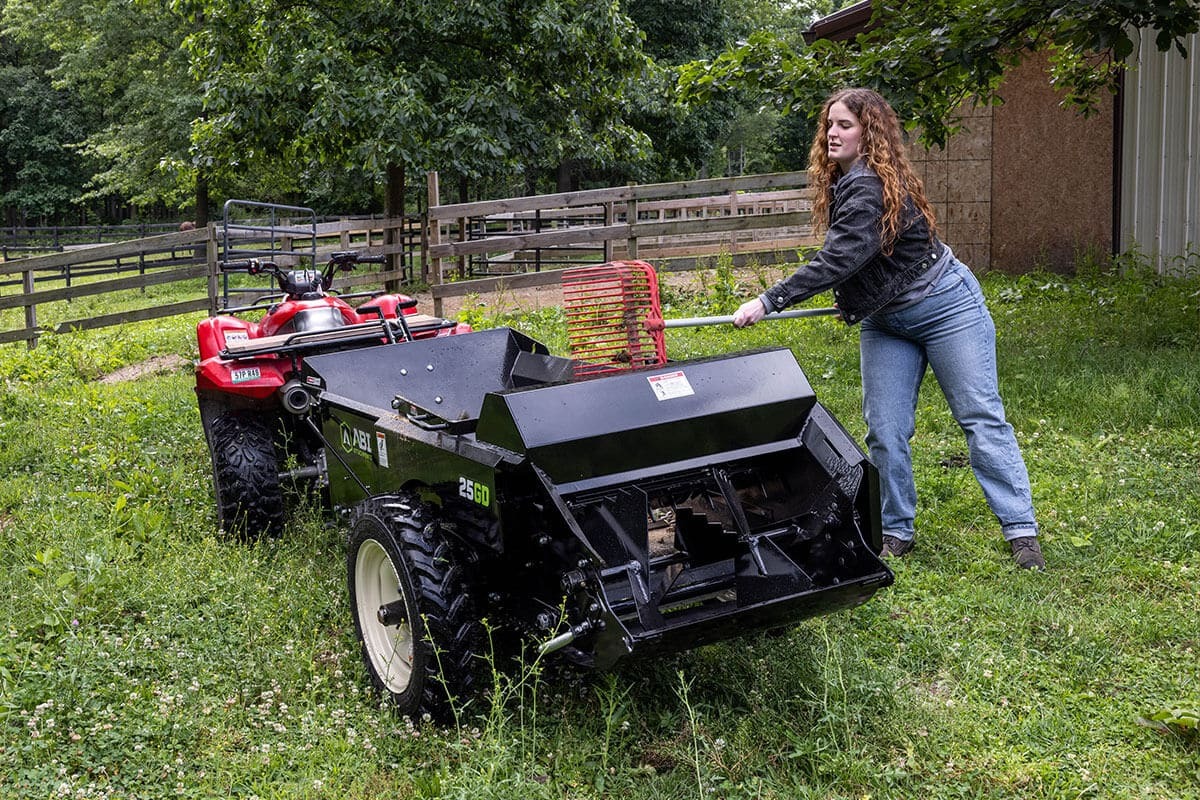

The swing-away jack crank makes it easy for operators to hookup or detach an ABI mini manure spreader to a lawn tractor or other small tow vehicle. It also comes with a wheel dolly that can be used to manually maneuver the attachment into a garage, tool shed, barn, or other tight spaces for storage. If your barn lacks pass-through aisles, the swing-away jack with wheel dolly enables you to manually push your dung spreader between paddocks so you can conveniently muck manure directly from the stall to the spreader.

Advantages of Small Manure Spreaders

ABI spreaders are fully-welded with COR-TEN steel to be tank-tough through and through. Our extremely thick COR-TEN steel provides tremendous longevity without the ridiculous expense of stainless steel. So yes, our spreaders aren’t shiny like your kitchen appliances for good reason: stainless steel is not as structurally sound as COR-TEN. Below we have detailed out why our spreaders are built to outlast the barn; and the competition.

Built in Lancaster, Pennsylvania, by highly skilled craftsmen with decades of small manure spreader building experience, these compact manure spreaders are crafted for daily farm-use conditions and made of the most durable components we know of. Materials such as grade-5 bolts, serviceable greaseable bearings, oil-impregnated bronze bushings, heavy-duty size 60 roller chain (nearly 1″ wide), stainless steel T-Rod apron chain, and hardened sprockets ensure longevity. You can judge a ground driven manure spreader’s materials and components quality by its overall unit weight; the heavier, the better. The ABI compact manure spreader weighs nearly 1/3 more than equivalently sized competitors’ small manure spreaders. Now that is tangible quality you can feel!

We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will last a very long time. And to back that up, we offer a limited warranty on this product. See the limited warranty documentation for details.

1. Apron Chain Limited Warranty* (10 Year for Farm & Ranch/ 3 Year for Commercial)
2. Manure Spreader Box & Frame Limited Warranty* (10 Year for Farm & Ranch/ 3 Year for Commercial)
3. 3 Year Mechanical & Construction Limited Warranty*
4. Lifetime Poly-Lumber Flooring Limited Warranty* – *See Documentation.

You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.

Block Off Flying Debris

To protect operators and equipment from flying manure, add on the optional manual end gate and shield. By closing off the back of the mini manure spreader, the end gate acts as a shield to block you and your tow vehicle from being covered in flying manure or debris leftover in the spreader box. An additional benefit to closing the back of your lawn tractor manure spreader is the end gate prevents manure from clogging the beater bars during loading, allowing you to fill your spreader to maximum capacity without issue.

Keep Clumps Out of Your Pasture

Using the optional fines pan, be sure to shred every bit of manure in your mini manure spreader and prevent stray clumps from hitting the ground. Attached directly behind the spreader, the fines pan catches and brings any fallen clumps of manure back into the beaters to be finely shredded. Including a fines pan is especially useful for catching smaller litter produced by poultry. The optional pan also features a release for easy cleaning or replacement.
