SportPro M1
Starting At: $116/mo.*
67.5" Width
Save $500 on total order
Get a Quote
Request Factory Direct PricingThe SportPro M1 – Premier Equestrian Edition was designed so you can get professional-level results in a smaller facility—no matter what kind of synthetic additives you’re working with. For smaller ATVs, zero turn mowers, or utility golf carts that have a rear hitch, the SportPro M1's unique structure is made to perfectly suit the requirements for your specific arena moisture and additives. 67.5" Width.

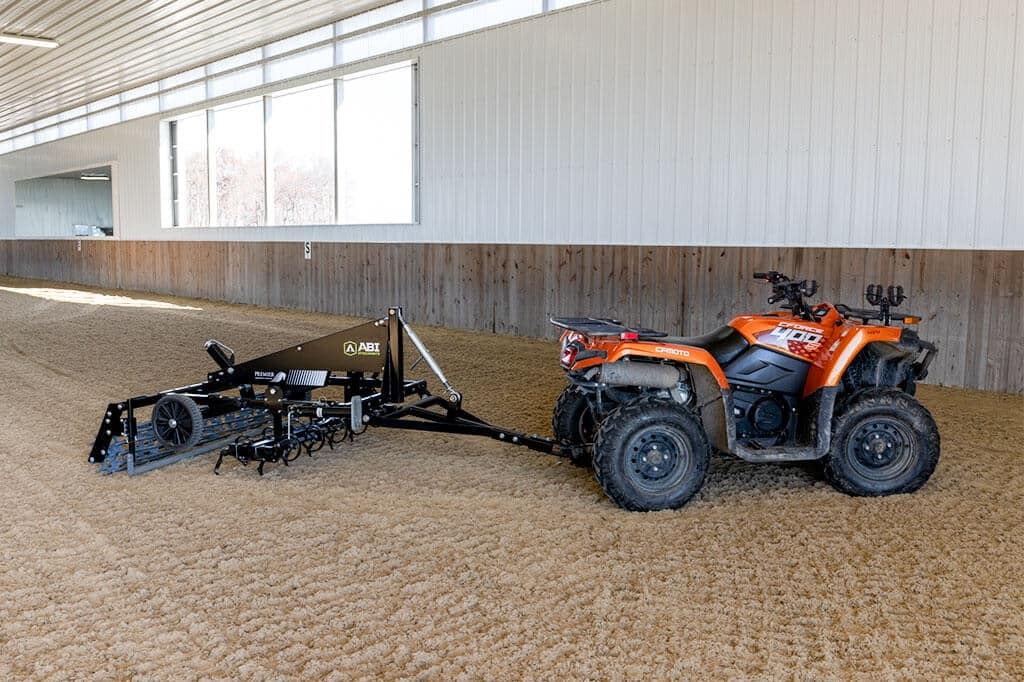

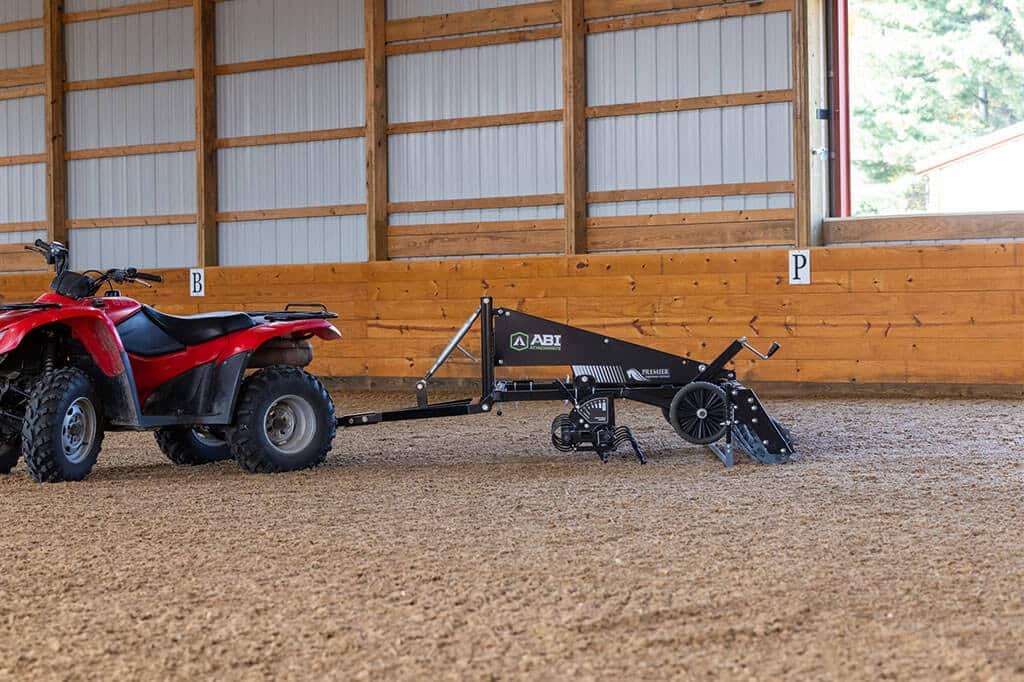

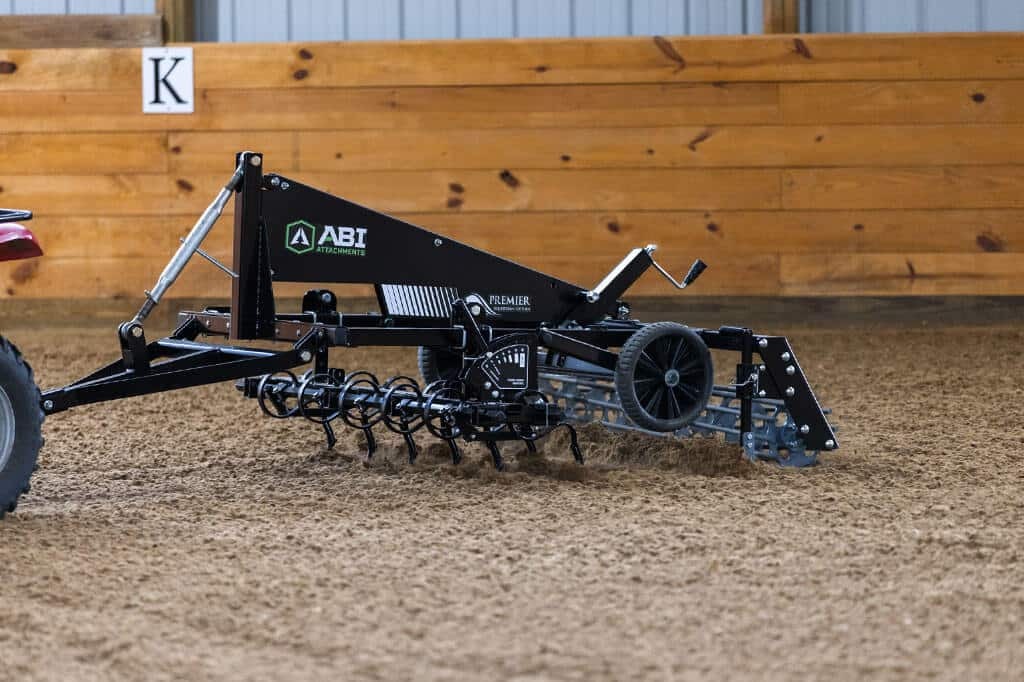

SportPro M1 – ATV horse arena drag for sand footing
SportPro M1 – ATV horse arena drag for sand footing

YOUR IDEAL FOOTING STARTS HERE
The S-Tines and smoothing bar are conveniently adjustable so you can set your implement to perfectly groom your specific arena. Once you have the groomer configured for everyday use for your arena, lock the tool in place, so you can count on consistent, repeatable results, no matter who's in the driver's seat.
BETTER FLOW MEANS BETTER FOOTING
The SportPro is built with extended space between each component from front to back to maximize the flow of footing material so you can be sure you’re getting the comprehensive blending, with every pass. The component spacing, length increases maneuverability, so you can groom your entire arena surface faster than ever before, while significantly elevating the overall quality of the arena footing.
INTENTIONALLY CRAFTED WITH YOU IN MIND

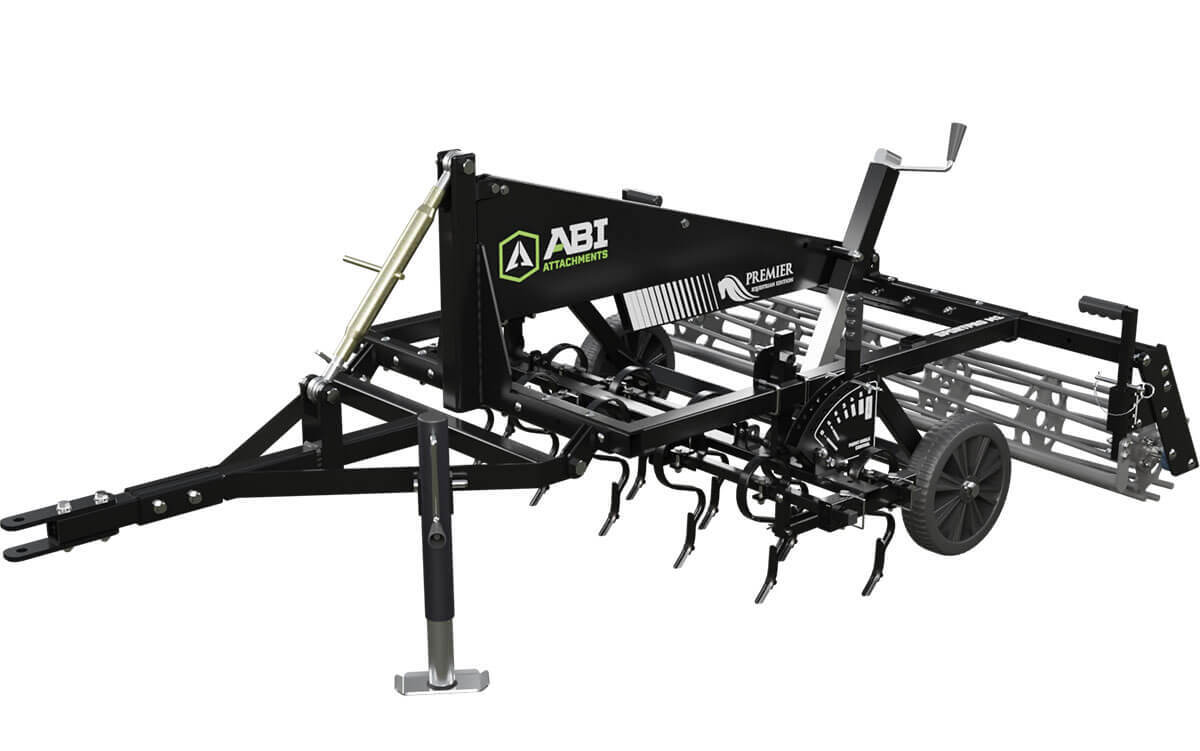

The tough steel frame is built without a shell for increased visibility and to make it easier to reach the individual components for any needed adjustments or upkeep. The majority of groomers on the market have brunt of the force on their adjustment linkages, which makes them wear down faster. We decided to eliminate this unnecessary wear on the implement by building the stress points into the high quality rugged steel frame.
A Safer Way to Go Deeper
If you have a limited amount of water in your arena or your additives require frequent mixing, the S-tines will provide holistic blending for your everyday grooming. The Sport Pro M1’s danish-styled S-tines act intuitively in synthetic footing, their springy give loosens and mixes material without causing damage to the base. S-Tines offer a safer way to go deeper, pulling up small fines and fibers that have settled to the bottom. S-tines are also suited for self-amending or self-installing additional materials or fibers.
Conveniently AdjustableGet the Best Out Of Your Footing
Adjust the pitch of the S-tines and the depth of the smoothing bar to get exactly what you want out of your footing. With its easy adjustment capabilities, you can change the surface tension in your arena for different disciplines and for conditioning. Once you have the groomer set for your arena, lock the tool in place, so you can count on consistent, repeatable results, no matter who’s in the driver’s seat.
Smoothing BarLevel Your Footing Without Plugging Up
The smoothing bar is adjustable in quarter inch increments for maximum precision adjustment. The smoothing bar allows for some build up to accumulate so it can level out any excess material while filling remaining lines or grooves. The cylinder shape of the smoothing bar allows material to flow under as well as over—creating a smoothing effect under the bar, and preventing excess material from plugging up.

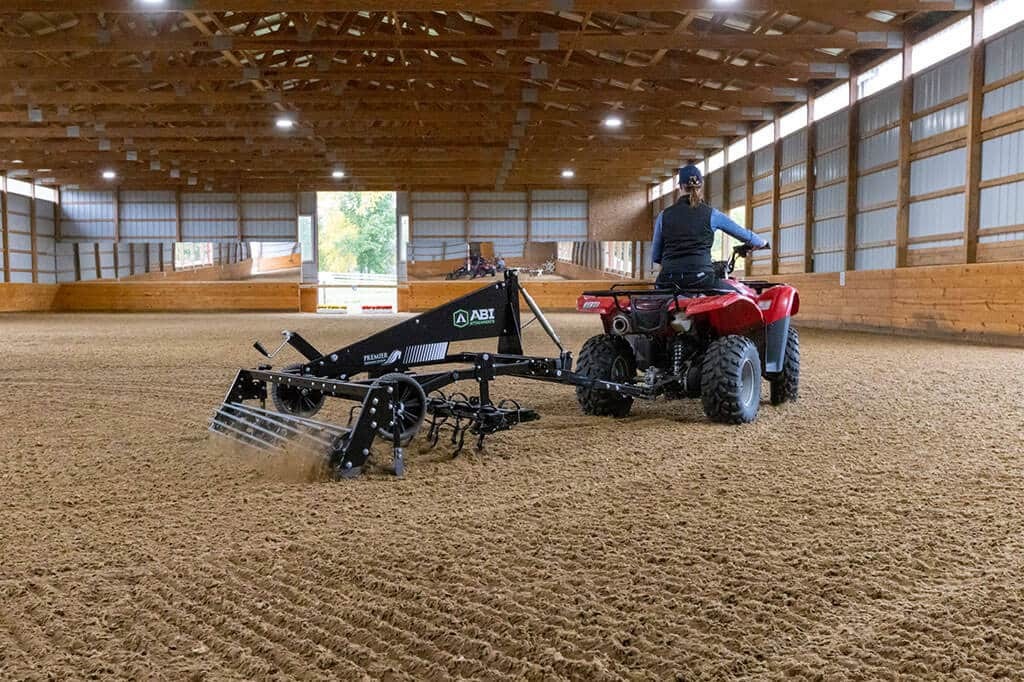

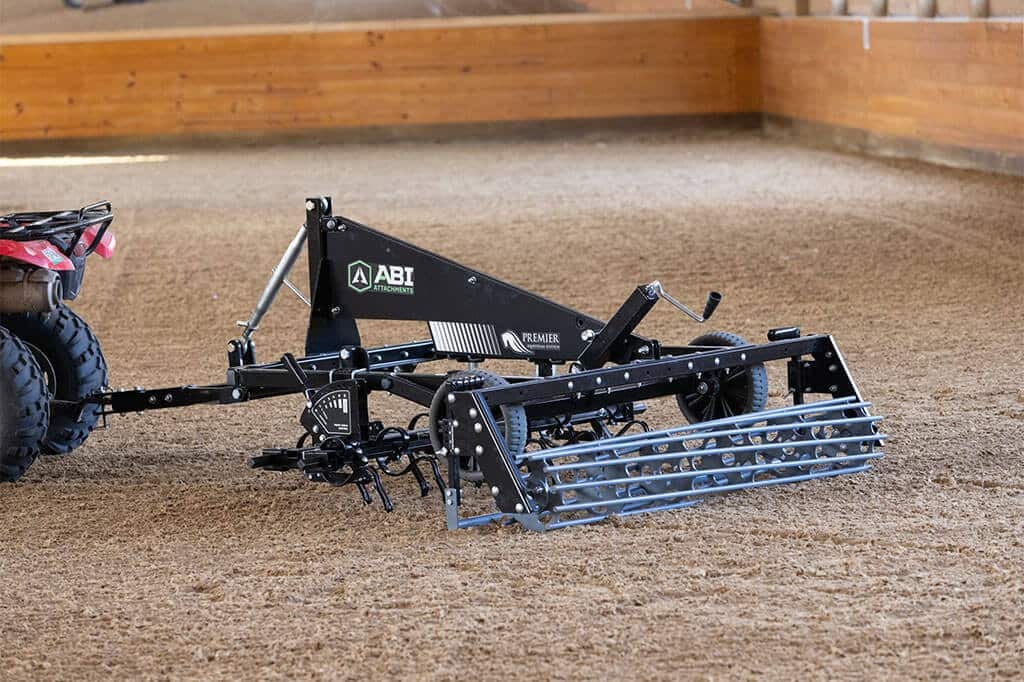

Twisted Rod RollerA Signature Finish, Every Time
The twisted rod design of the SportPro roller maximizes packing and minimizes trailing so you can count on an elegant finish over your arena surface. One of the key benefits of the twisted rods is constant contact with the surface, which minimizes bouncing while grooming.

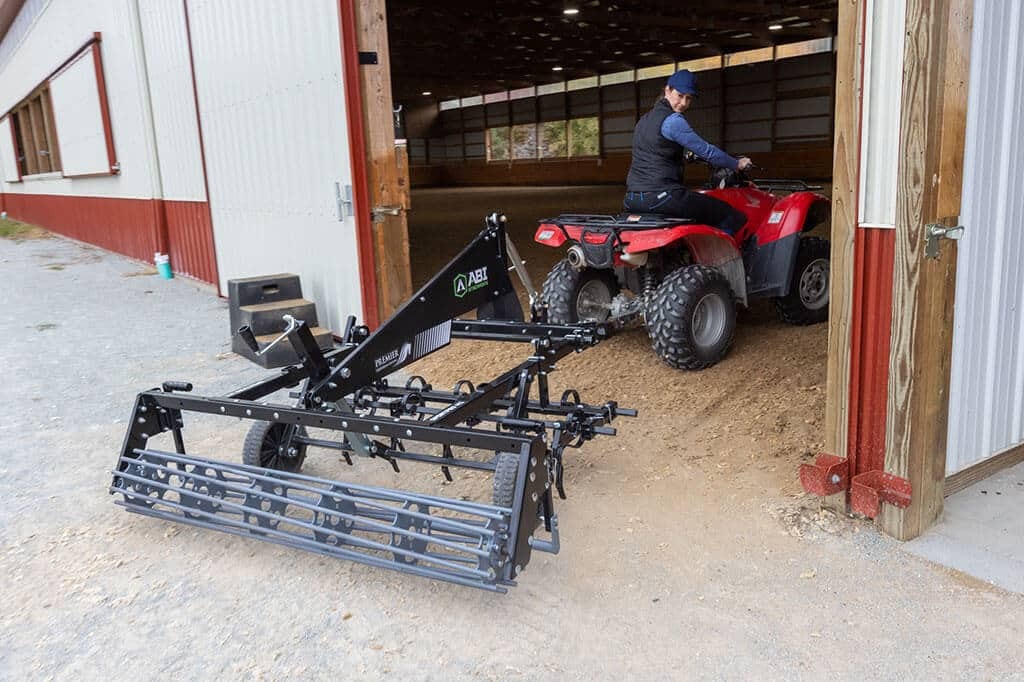

Wheel Transport SystemConnect-and-Go
The wheel transport system makes it easy to connect your UTV or ATV and move your M1 in and out of your arena, hassle-free.
For the Hard-to-Reach Spots
To get those tough-to-reach edges, add the optional rail blade. The rail blade lets you maneuver with ease around the trickiest spots in your arena.
Rail WheelNo Kick Wall Scratches Here
For extra kick wall protection when leveling the edges of your arena, get the optional rail wheel add on.
Ball CouplerTow the Way You Like It
If a ball hitch is your preferred method of towing, the ball coupler option gives you the convenience you’re looking for with your M1.
We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will last a very long time. And to back that up, we offer a 12 Months limited warranty on this product. See warranty documentation for details.
Manufactured Right HereYou want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.
Buy Factory-DirectABI’s attachments are sold directly to the customer over the phone and internet and shipped via a common-carrier truck to your property! This factory-direct business model eliminates the middleman and dealer markups allowing ABI to provide better attachments for the money. Buying direct also ensures that you’re not limited to a local dealer’s in-stock inventory; instead, you have access to every model, size, and configuration we offer, and you can have it shipped to you in just a few days. We think this is a better way to do business, as it gives you more options, and you get to work directly with the people who design and build attachments.
Tow Vehicle Requirements
Tow Vehicle Requirements
| M1 | |
|---|---|
| Vehicle Type | Utility Cart, ATV / UTV / Small Tractor |
| Min. Horsepower | 14 h.p. |
| Max. Horsepower | 32 h.p. |
| Min. CC | 400 cc |
| Max. CC | 800 cc |
| 4-Wheel Drive Required | - |
| Outside Tire Max Width | 53" |
| Hydraulic Ports Needed | - |
| Front Weight Needed | - |
Connection
| M1 | |
|---|---|
| Pin Hitch Towable | |
| 2" Ball Coupler Towable | Optional |
| Ltd CAT 1 3-Point | - |
| CAT 1 3-Point | - |
| CAT 2 3-Point | - |
| Swivel 3-Point Hitch | - |
| Quick Hitch Compatible | - |
| Min. 3-Point Lift | - |
Rollers
| M1 | |
|---|---|
| # of Rollers | 1 |
| Front Roller | - |
| Rear Roller | |
| Roller Type | Twisted Bar |
| Roller Diameter | 9.5" |
| Working Width | 63.25" |
S-Tines (For Material Mixing or Low Moisture Footing)
| M1 | |
|---|---|
| Choose Primary Engagement | S-Tine Only |
| # of S-Tines | 11 |
| # of Rows | 2 |
| Adjustable Depth Range | 0 - 4" |
| Adjustable Pitch Control | |
| Replaceable Points | |
| Max Depth Gauge | - |
| Working Width | 51" |
Smoothing Bar
| M1 | |
|---|---|
| Adjustable Smoothing Bar | |
| Working Width | 66.25" |
Wheel Transport System
| M1 | |
|---|---|
| Manual Jack | |
| Electric Actuator | - |
Options Available
| M1 | |
|---|---|
| Rigid Scarifiers | - |
| S-Tines | Included |
| Wall / Rail Blade | Optional |
| Wall Protection Wheel | Optional |
| Electric Actuator | - |
| 2" Ball Coupler | Optional |
Weights & Dims
| M1 | |
|---|---|
| Unit Weight | 447 lbs. |
| Shipping Weight | 527 lbs. |
| Unit Dimensions | 103"L x 67.5"W x 39"H |
| Shipping Dimensions | 72"L x 72"W x 44"H |
Warranty
| M1 | |
|---|---|
| Farm & Ranch Use | |
| Commercial Use |
Additional Information
| Market | Equestrians |
|---|---|
| Tow Vehicle | ATV / UTV, ATV, UTV, Utility Tractor |
