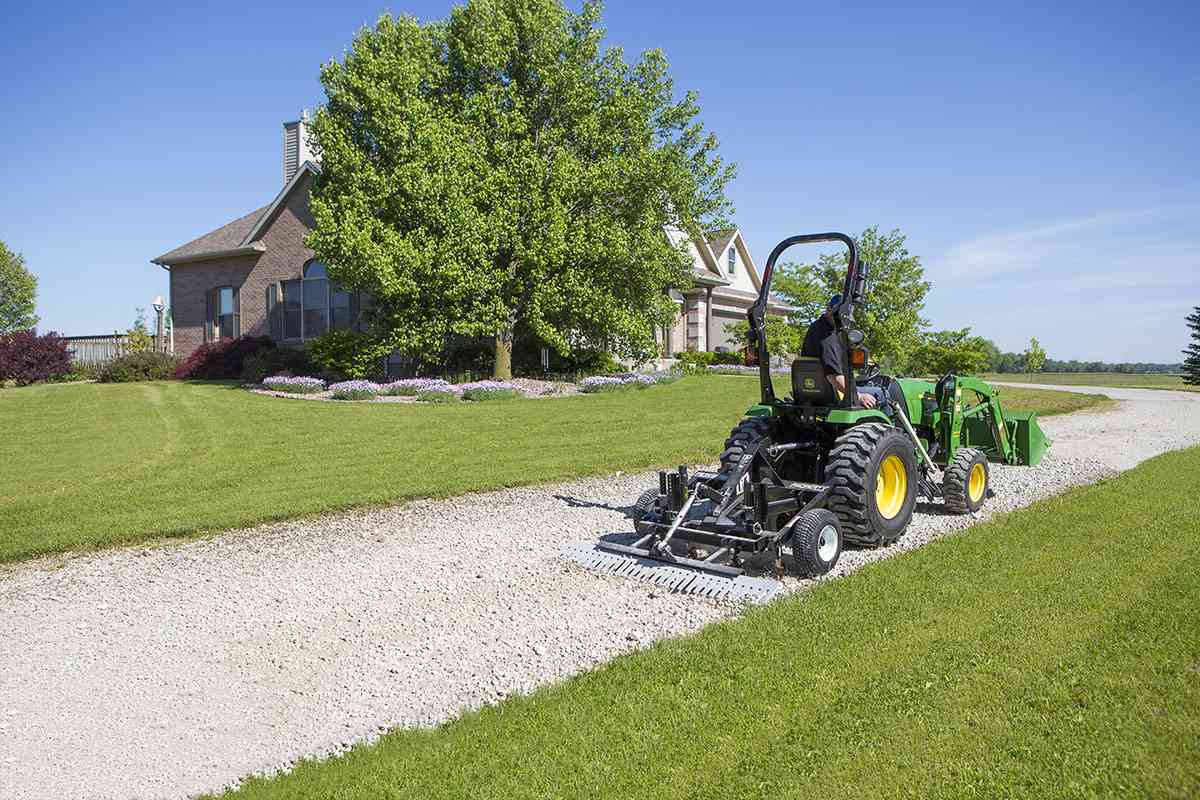

Small Tractor DIY Driveway Grader Long Gravel Driveway

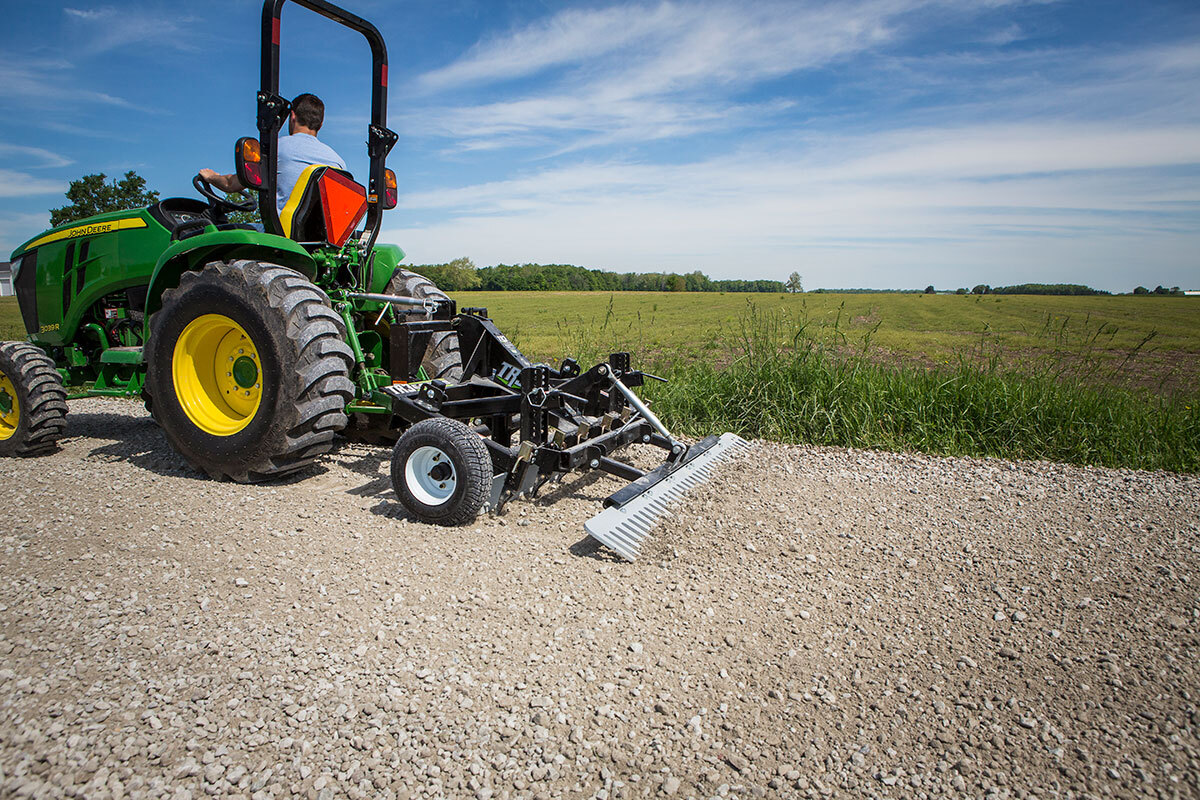

Small Tractor 3-Point Driveway Grader Rural Property

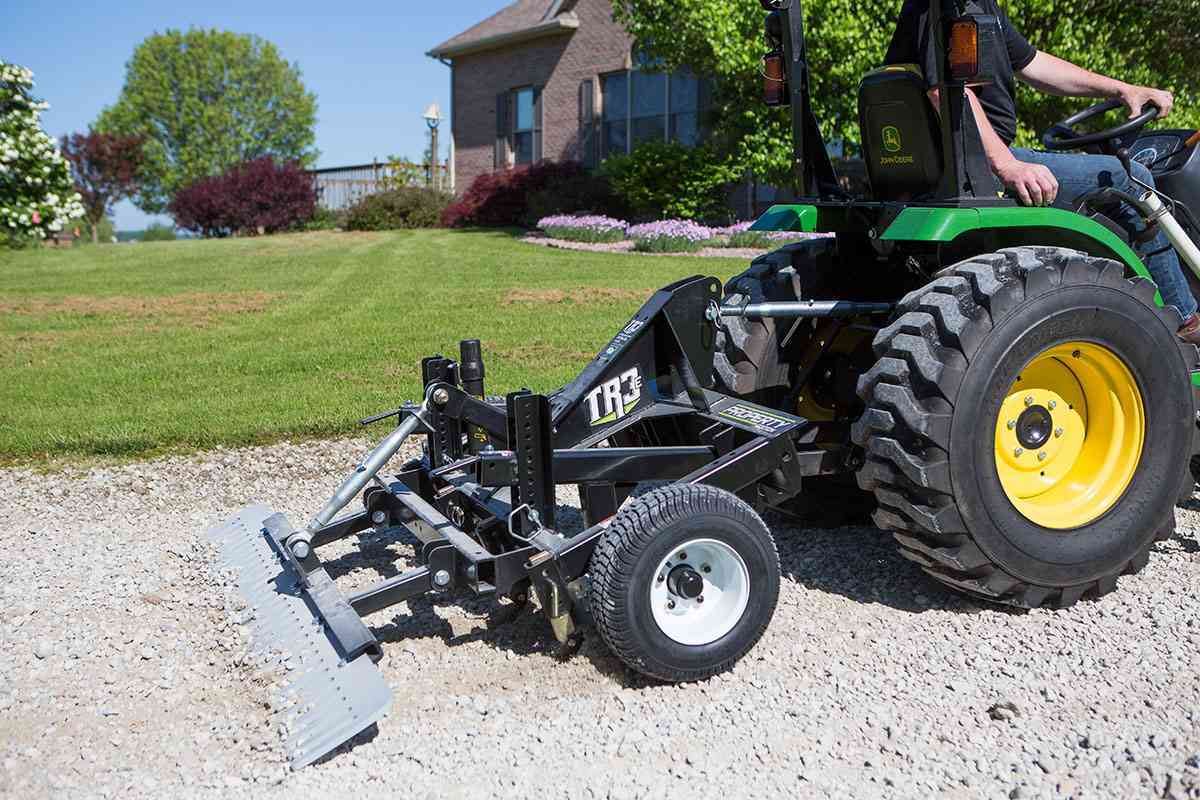

Small Tractor Tow Behind Gravel Driveway Grader
TR3E Property Edition
TR3E Property Edition
Small Tractor Tow Behind Driveway Grader Profile Blade
TR3E Food Plot Disc For Sub-Compact Tractor

TR3 “E” Property Edition

Starting At: $94/mo.*

6' & 7' Widths

Save $500 on total order

The TR3e Property Edition Is The "One-Tool-Does-It-All" Tractor Driveway Grader & Tractor Landscape Rake! Command your land like never before with the versatile sub-compact and compact tractor driveway grader. Professionally grade gravel driveways & parking lots, prep to seed lawns & pastures, prepare food plots, groom horse arenas, and so much more. Multiple Attachments In One: The TR3e Property Edition has the teeth for tough dirt and gravel work and combines the function of a box blade, landscape rake, grader blade, land plane, chain harrow, and pulverizer all into one patented tractor attachment. Add the optional disc system, and it replaces a disc harrow, rotary tiller, and plow as well! This patented innovation not only eliminates the need to buy all of these implements separately, but it also gets more work done with better results, faster than you thought possible! This versatile American-made sub-compact tractor driveway grader is durable, easy-to-use, and easy-to-connect and will take your property to the next level; no hydraulics or PTO required. 6' & 7' Widths Available. Limited Warranty.

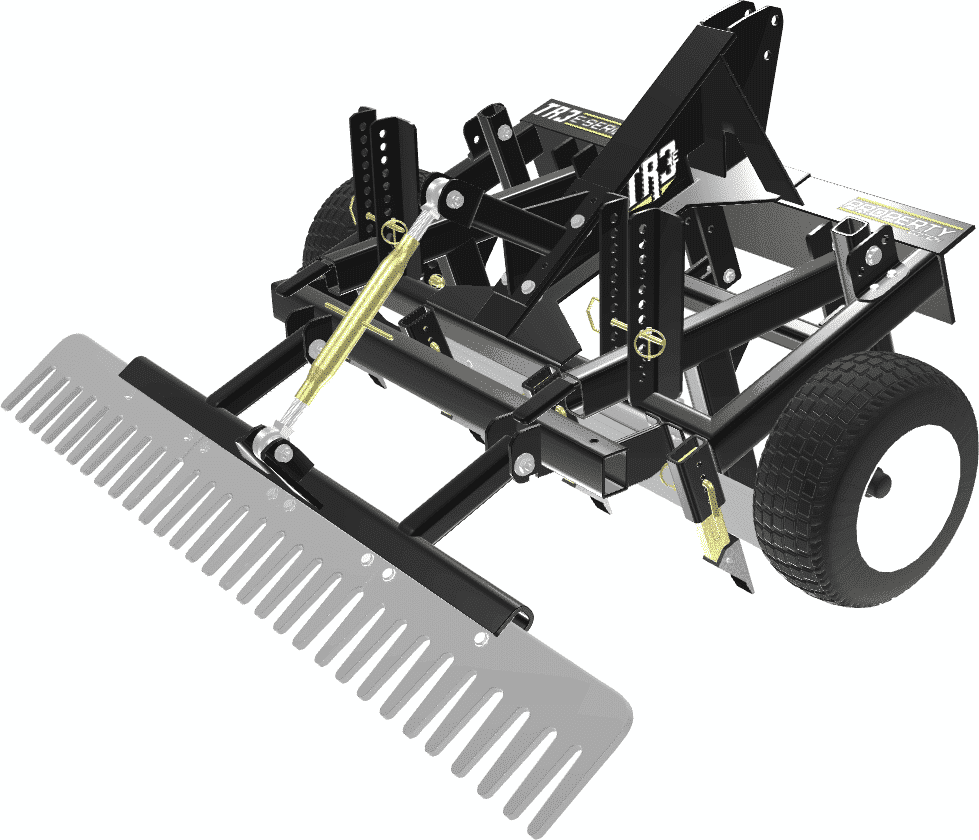

ABI TR3e Property Edition Product Render

Patented Tractor Driveway Grader & Landscape Rake

Patented Tractor Driveway Grader & Landscape Rake

ABI TR3e Property Edition Product Render
SELF-LEVELING BOX BLADE - PATENTED

Driveway grading and soil leveling simplified

 The patented self-leveling box blade action eliminates the need to be a skilled operator and makes it easy to create a consistent level surface. The integrated box blade is adjustable and can be used in the self-leveling position or locked down in a fixed position to move more volume of material. The self-leveling position is ideal for general gravel or soil leveling work collecting material from high areas and dropping that material into lower areas. The fixed manual position is ideal for rougher grading, spreading of material, and filling in washed-out areas. This box blade versatility enables the TR3 E Series to routinely maintain a driveway efficiently and renovate a driveway riddled with potholes, washboarding, and washouts.

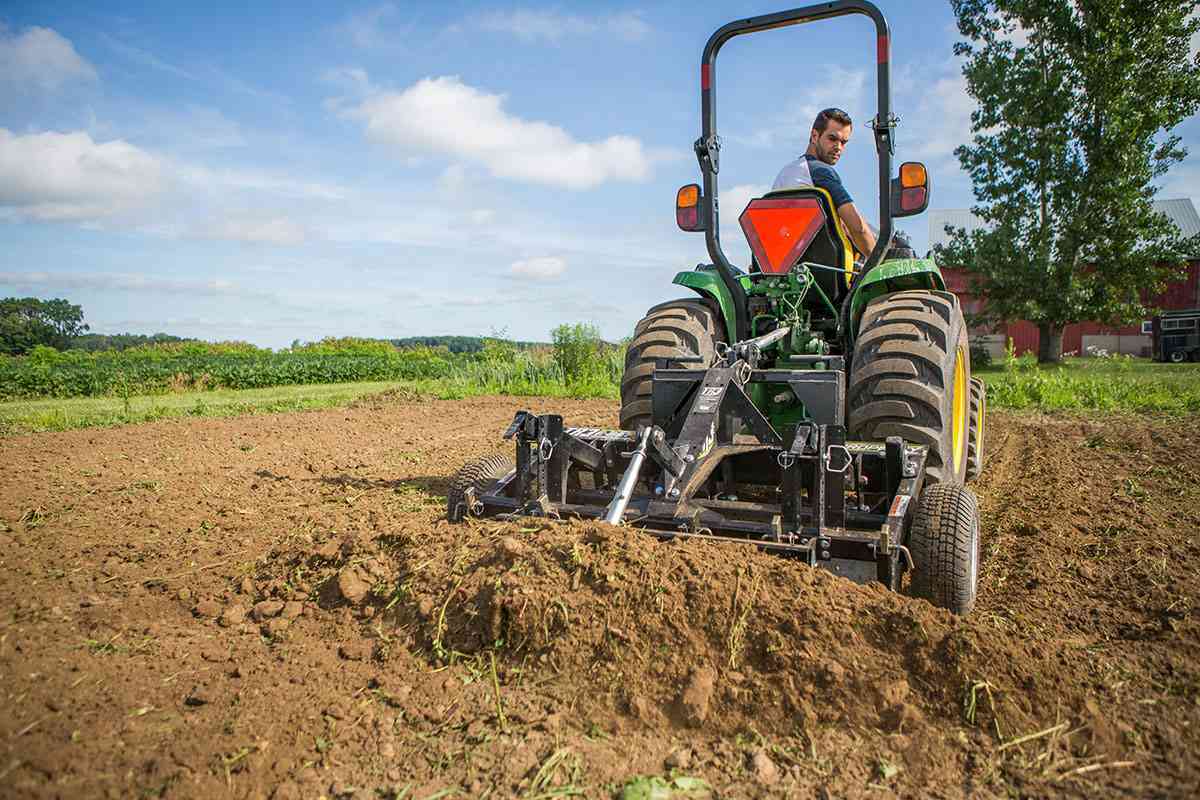

RIPPING TEETH

The Teeth For Tough Work

The included adjustable rippers give the TR3e the teeth for tough dirt and gravel work. They are adjustable from 0 – 5″ to get to the bottom of the most demanding jobs, even potholes! They enable the TR3e driveway grader to maintain gravel driveways, parking lots, prep seedbeds, trails, food plots & so much more! The rigid design, and angle of penetration into the ground, deliver exceptional aggressiveness not matched by any other tractor landscape rake or tractor driveway grader. The tips are replaceable for reduced maintenance costs.

These forward-facing scarifiers also help to blend gravel particles sizes, ensuring the driving surface is well graded for ultimate stability. Over time large gravel particles will rise to the top of the driving surface, and the small particles will settle to the bottom. Keeping these particles blended is crucial to a stable driving surface.

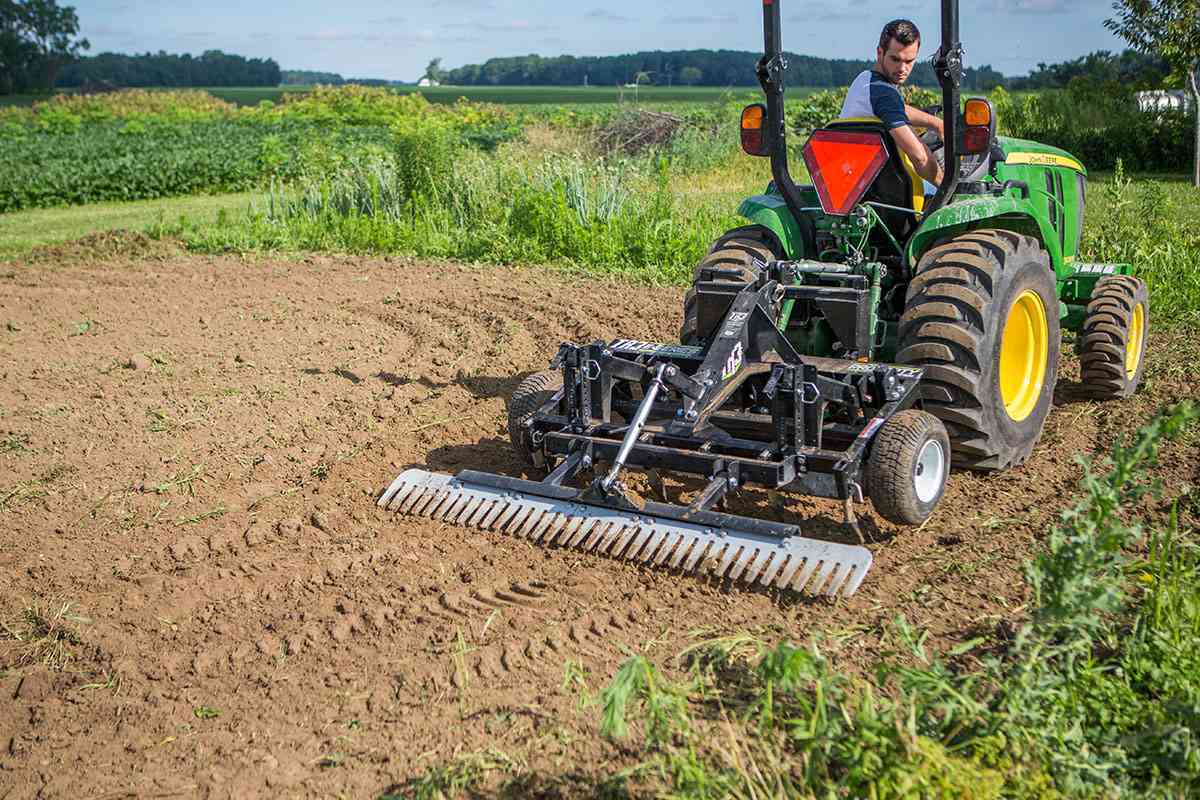

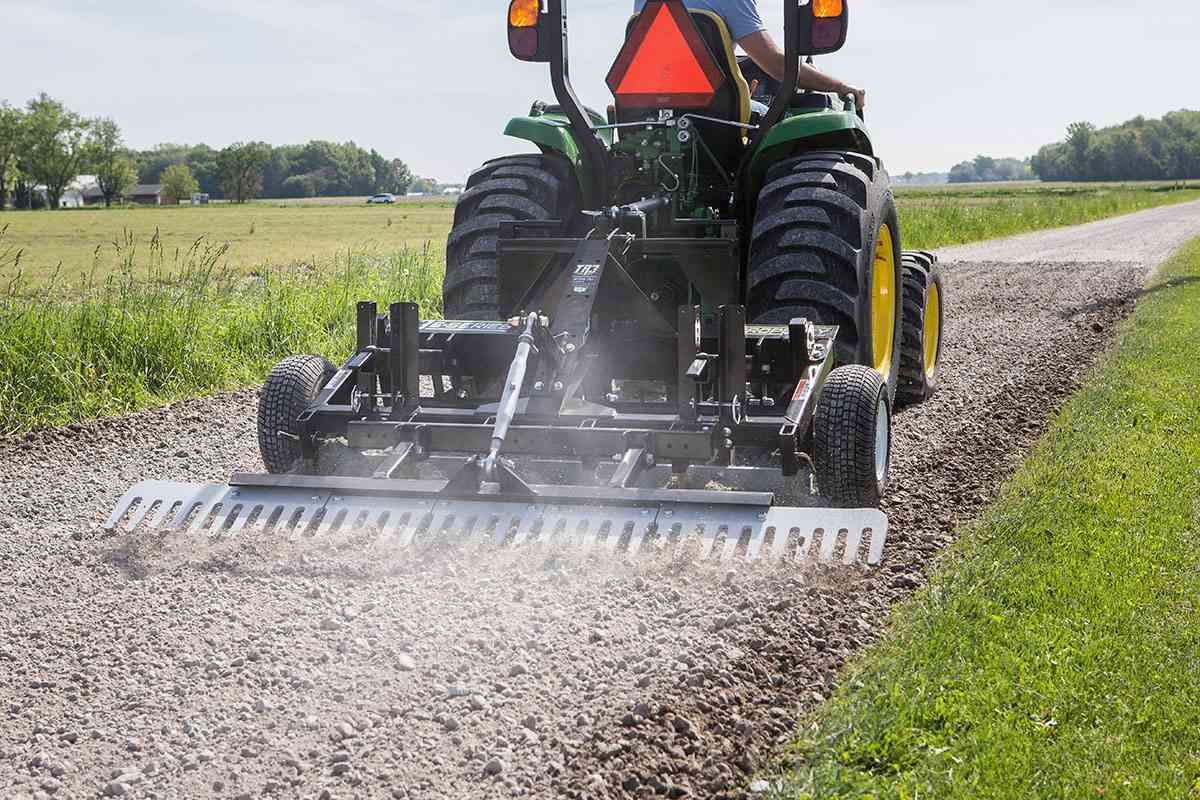

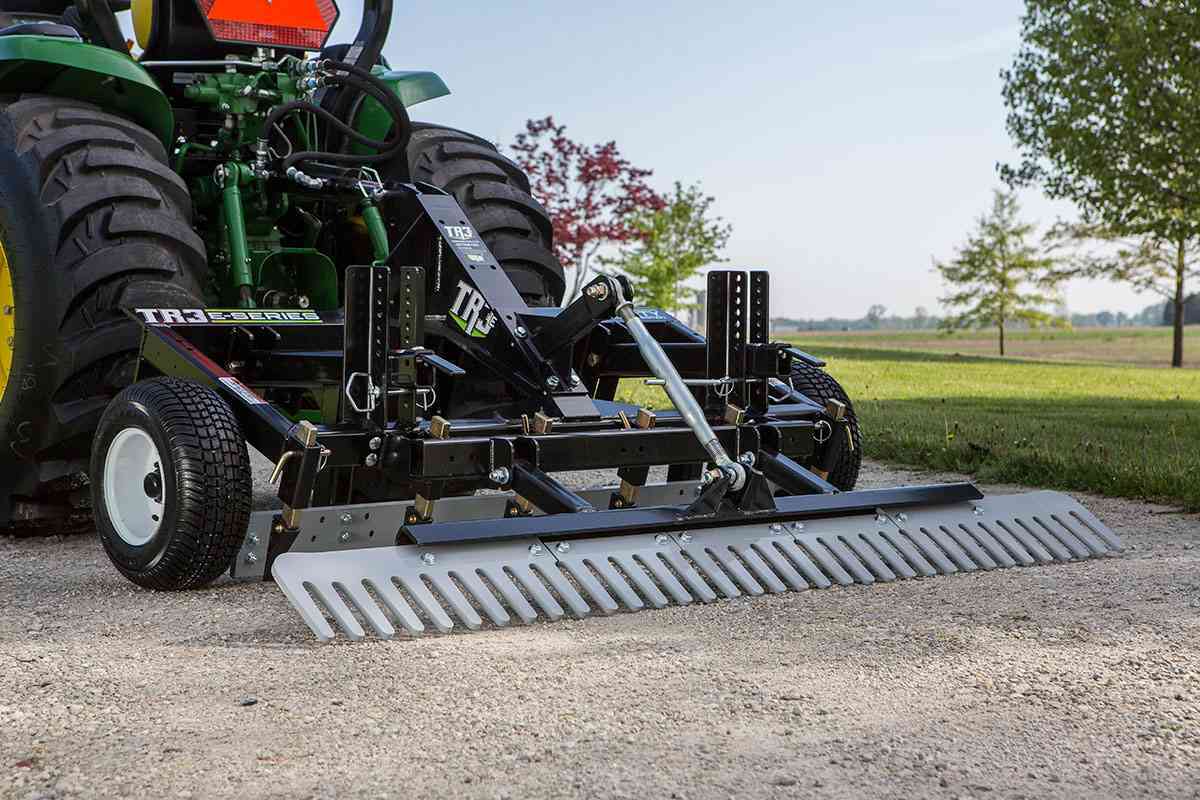

ADJUSTABLE PULVERIZING & FINISH RAKE

A signature finish, no matter the material or moisture

The adjustable pulverizing and finish rake is half-inch thick hardened steel. This laser-cut rake pulverizes clumps of gravel and clay, prepares the soil, resets surfaces, and even breaks up manure lying on a pasture. The rake can push loose material into low areas, rip out vegetation, and push debris into piles when operating in reverse. Replaceable in one-foot sections to reduce maintenance costs. Use caution when pushing backward. Only push backward on loosed soil with slow speed to prevent damage.

DEPTH CONTROL & CROWN CONTROL WHEELS

Easily Create Consistent Results & Crown Your Driveway

A properly prepared gravel driveway needs to have a consistent loosened gravel depth and be crowned to enable it to shed rainwater. The adjustable wheels also control the depth of material loosening and control for consistent grading. They can be offset from side to side to establish a crown on the driveway! The large 16.5″ tall x 8″ wide high-quality wheels have replaceable high-speed hubs, spindles, and bearings for long service life.

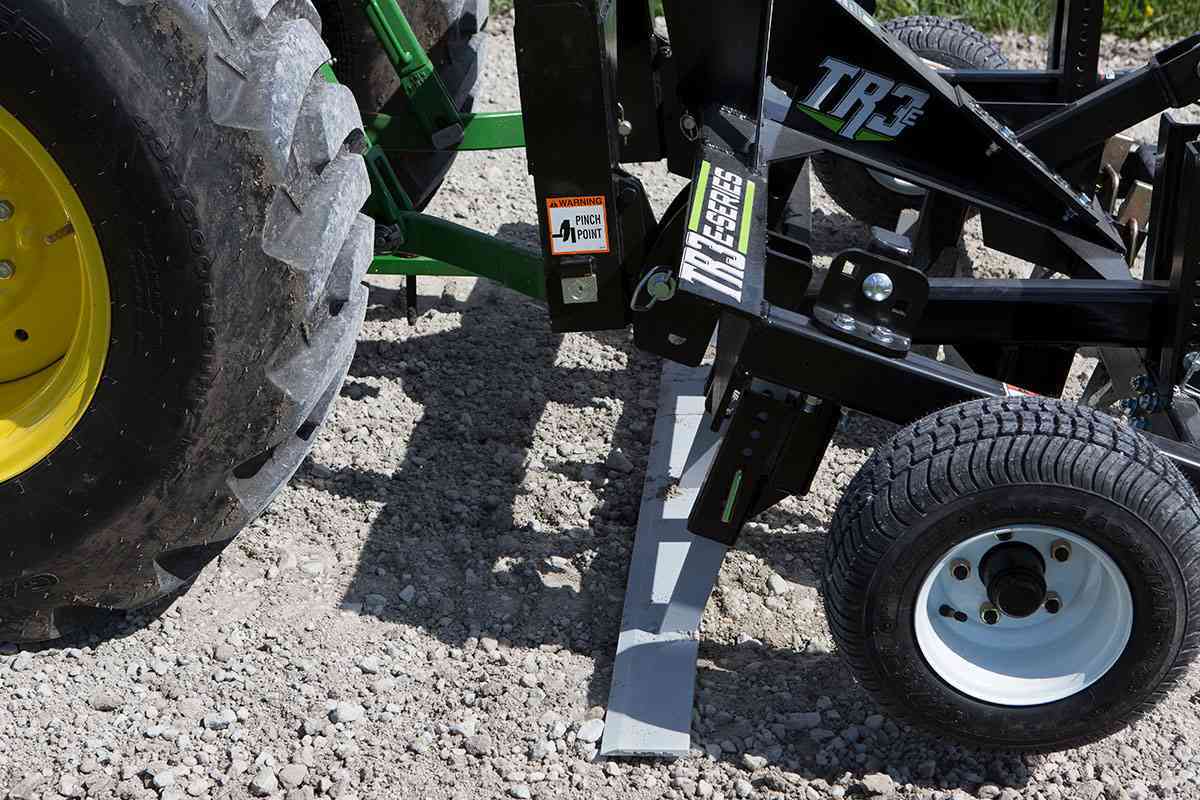

PROFILE BLADES

Precision loosening of soil or gravel

The optional Profile Blades complete the gravel driveway resurfacing system. The Profile Blades cut below a previously loosened surface, slicing horizontally through the gravel driveway to eliminate ruts and recycle existing gravel back to new! The results are remarkable! These blades also uproot weeds and grass from driveways with no chemicals required. Profile Blades are also excellent for use in horse arenas.

Food Plot Disc

Go Ahead & Play In The Woods

Ever wish Saturdays had more daylight hours than the rest of the week? We want to help you make the most of the hours you have. With the Food Plot Disc option, you don’t have to cram the barn full of 3-point attachments. Your multi-purpose TR3 E-Series Property Edition can become your go-to disc harrow for your food plot or garden.

Learn More

STOP swapping between many traditional implements! STOP wearing out your front end loader on jobs it was never intended to complete! STOP littering your property or barn with outdated implements you don’t like to use! Instead, get the TR3 E-Series Property Edition, it’s the one tool that does it all.

Easy To Use & Connect

The TR3 E-Series was specifically designed for ease of use, and with quick hitch compatibility, it’s simple and safe to connect and disconnect from your tractor.

Manufactured Right Here Buy Factory-Direct - We Ship To Your Property Warranty

We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will last a very long time. And to back that up, we offer a 60-month limited warranty on this product. See warranty documentation for details.

Tow Vehicle Requirements

Tow Vehicle Requirements

TR3 E - Property 6' 7'
Vehicle Type Tractor with 3-Point Tractor with 3-Point
Min. Horsepower 23 h.p. 27 h.p.
Max. Horsepower 65 h.p. 75 h.p.
4 Wheel Drive Required Required
3-Point Category Limited CAT 1, CAT 1 CAT 1
Min. 3-Point Lift 570 lbs. 650 lbs.
Front Weight Needed Yes, Min 15% of Total Machine Weight Required Yes, Min 15% of Total Machine Weight Required

Unit Weights & Dimensions

TR3 E - Property 6' 7'
Base Unit Weight 570 lbs. 650 lbs.
Full Unit Weight 665 lbs. 760 lbs.
Base Shipping Weight 625 lbs. 705 lbs.
Full Shipping Weight 720 lbs. 815 lbs.
Unit Dimensions 71"W x 51"D x 30"H 83"W x 51"D x 30"H
Shipping Dimensions 72"W x 48"D x 36"H 84"W x 48"D x 36"H

Frame Construction

TR3 E - Property 6' 7'
3-Point Hitch Limited CAT 1, CAT 1 CAT 1
Quick Hitch Compatible Yes Yes
Tire Size 16.5" Diameter x 6.5" Width x 8" Rim 16.5" Diameter x 6.5" Width x 8" Rim
Tire Type Turf Tire - Air Filled Turf Tire - Air Filled

Finish Rake

TR3 E - Property 6' 7'
Type Adjustable Relationship To Frame Adjustable Relationship To Frame
Raking Width 71" (5.92') 83" (6.92')
Rake Material 1/2" Steel - Laser Cut (Replaceable in sections) 1/2" Steel - Laser Cut (Replaceable in sections)
Flared Ends Yes Yes
Push Material Backward Completely Loose Material Only Completely Loose Material Only

Grading Blade

TR3 E - Property 6' 7'
Type Floating, Fixed, or Float Within Range Floating, Fixed, or Float Within Range
Grading Width 45.5" (3.79') 57.5" (4.79')
Cutting Edge Solid, Replaceable Solid, Replaceable

Scarifiers

TR3 E - Property 6' 7'
Type Rigid Shank - With Replaceable Tip (Bolt-On) Rigid Shank - With Replaceable Tip (Bolt-On)
Scarifying Width 44.4" (3.7') 56.5" (4.71')
Scarifying Depth 0" - 4 3/4" 0" - 4 3/4"
# of Scarifiers 4 6
Scarifier Shank Length 7" 7"

Profile Blades

TR3 E - Property 6' 7'
Available Option Option
Profile Blade Width 58" (4.83') 70" (5.83')
Profile Blade Depth 0" - 6" 0" - 6"
Mounting Location Front Front
Unit Weight 93 lbs. 107 lbs.

Warranty

TR3 E - Property 6' 7'
Farm & Ranch Use
Commercial Use

Reviews (14) — 5 / 5

Jim Scogin ★★★★★
Feb 20, 2024

I’ve had the TR3E for nine months and it has performed flawlessly. I used it to rid weeds on about 1/4 acre last August. Works great on my gravel drive and parking area. Two days ago I volunteered to help my neighbor prepare their large pasture arena that was trodden with 1″ to 2″ deep hoof prints that caused their horse to face plant and throw the rider. They were astounded with how well the soil was prepped and the low areas were filled. It was finished to a fine soil, and soft, to minimize impact on the horse hoofs and knees when riding. It’s worth every penny! Bought the option of the four disc and it was a good choice for the remaining acreage.

Joan Meyer ★★★★★
Feb 24, 2023

If you have a driveway this is a great tool to keep it in good shape. Easy to use – works awesome.

Tanner Leininger ★★★★★
Jun 14, 2022

I purchased the TR3e Property Edition to maintain my 1,500' driveway and couldn't be happier! From start to finish my entire experience with ABI Attachments was top notch. The TR3e is easy to use and works like a dream. I'm now able to consolidate 3 attachments into 1. When you have a driveway as long as mine, its hard to keep up on all the potholes without a tool like the TR3e Property Edition. 5 STARS!

John Mcilmurray ★★★★★
May 2, 2022

Ordered the TR3E on a Friday, arrived the following Tuesday (no supply chain issues here apparently). With zero experience with this or any other type of grading equipment I set out to restore my gravel driveway. The drive is 600' long with 3 additional sections that branch off the main drive. I was seemingly an expert after 2 passes. The driveway was completely restored with all the potholes filled in and the driveway leveled and smooth. The entire task was under 1 hour. The finished product looks fantastic. The implement was easy to set up and adjust. I could not be happier with this product. Worth every dime. Love it!

Paul ★★★★★
Nov 8, 2021

I am not a person that is one to leave reviews unless I have deep feelings about something. This is one of those times that I will about the TR3E. I have owned our property for 20+ years and have never done anything to help the driveway and you could tell it with the humps, potholes, ruts, and soft spots. In February I started checking out ways to repair and maintain the driveway. The driveway is 30’ wide at the road going 150’ then at that point going to 70’ wide for another 200’. I contacted a company about it and was told it was going to take over 100 tons of rock for the repair. If you are like me I watch cost because every penny is important. I looked on the internet for different solutions finding drag boxes which I already have one and it’s not worth the money in scrap in my eyes. I don’t have tons of experience with it also this also comes into play. That’s when I contacted Ryan Dunn about the TR3E. Ryan made sure to ask questions about how much I would be doing. Ryan made sure to make it easy for me to operate and at pricing that fit my budget. When they say that it’s simple to use I’m telling you my dad has no experience and I have little experience with doing driveways but we repaired it without adding any additional rock to the driveway. IT LOOKS NEW! I even did a friend’s driveway that had wash out spots from the rain and again LOOKED NEW and it’s a 1/2 mile long! I can’t say enough about Ryan and the TR3E. It’s the only way to go!

Hans ★★★★★
Sep 20, 2021

The TR3 was delivered on Friday, transportation went well, packaging was solid. I was able to pick up the pallet at the end of my driveway with the tractor and take it to the garage. Yesterday I took the time to assemble the TR3 and set it up for work. The initial thinking was to test it out and see how it works on a portion of my driveway, but I was able to go through all our driveway and parking area, so now it all looks like brand new. The only question I had at the end of the day was, why didn't I buy this thing sooner. It is solid, well built and with proper care it will last a very long time. Thank you again to you and your team Steve, I will make sure to recommend ABI to everyone I know.

david dyer ★★★★★
Aug 13, 2021

Shipping was fast, arrived in good condition, set up was super easy, was missing a lock but and a hitch pin but nothing major easily replaced. Worked like a charm I use it to maintain our private stone lane. A great investment

Brandon Hubbard ★★★★★
Jul 23, 2021

Received my TR3E property edition this week and it works flawlessly. I wish I would have gotten this implement when I started looking at them a few years ago. It easily went through compacted gravel and crushed asphalt on my drive filling in potholes. I originally was going to purchase more asphalt millings to cover the drive and after using the TR3-E I won’t be buying anything it is smooth and looks brand new. Going to try it on grass/dirt where tracks were left delivering hot tub and driving trucks on yard. Will update with more info once completed.

John Needler ★★★★★
Jul 29, 2020

Great Piece of Equipment. Received my Tr3 today put it together when I got home from work this evening loaded it up and took it over to the other property. Worked on the barn lot that I know my dad hadn't graded in over twenty years.There's been semi traffic and heavy equipment on it for the last twenty years since he retired from farming but no more stone. It was weedy and looked bad. I knew how much stone had been put in there thru the years and just didn't want to add any yet. We received about three inches of rain Saturday so I thought let's give it a try. That piece of equipment worked great. After about two hours and getting it adjusted the lot looks like it did twenty years ago. A neighbor stopped by to check out what I was using and was very impressed. He lives back a quarter mile gravel lane. Went down and cut his drive also. Took the potholes out with no problem. Very Happy with it so far. Just wanted to give you a shout.

Chris Weaver ★★★★★
Jul 29, 2020

We received our new TR3 E on Monday. Within a few hours we had our parking lot looking like new again.. I was amazed how easy it was to set up the TR3 E to our compact tractor and have it working within a short time. We love the TR3 E and will put it to work often.

Chip Paddock ★★★★★
Jul 29, 2020

I received my TR3-E Property Edition a couple weeks ago. I took advantage of Abi's Support Staff to help me get it setup, tuned, and ready to try. Started by working our outdoor arena, thinking the sand would give me good area to test before tackling more difficult projects. Worked like a charm. Adjustments are easy to make without any tools required. Once I got the hang of it, I took the PE to my food plots to try some discing. Tore up a couple races in no time, seeded it by hand spreader, then used the PE to work the seeds into the soil. After completing this project, I felt confident enough to try my 1/4 mile long gravel driveway, Again, the PE handled it with ease. I followed the instructions provide by sales and support at Abi and had this project done in no time. Potholes are gone, driveway is nicely groomed. I was about to order more rock, but this tool saved me from doing that for at least another year! Can't wait to find another project to use it on!

Chip Paddock ★★★★★
Jun 25, 2019

I received my TR3-E Property Edition a couple weeks ago. I took advantage of Abi's Support Staff to help me get it setup, tuned, and ready to try. Started by working our outdoor arena, thinking the sand would give me good area to test before tackling more difficult projects. Worked like a charm. Adjustments are easy to make without any tools required. Once I got the hang of it, I took the PE to my food plots to try some discing. Tore up a couple races in no time, seeded it by hand spreader, then used the PE to work the seeds into the soil. After completing this project, I felt confident enough to try my 1/4 mile long gravel driveway, Again, the PE handled it with ease. I followed the instructions provide by sales and support at Abi and had this project done in no time. Potholes are gone, driveway is nicely groomed. I was about to order more rock, but this tool saved me from doing that for at least another year! Can't wait to find another project to use it on!

Chris Weaver ★★★★★
Jun 25, 2019

We received our new TR3 E on Monday. Within a few hours we had our parking lot looking like new again.. I was amazed how easy it was to set up the TR3 E to our compact tractor and have it working within a short time. We love the TR3 E and will put it to work often.

John Needler ★★★★★
Jun 5, 2019

Great Piece of Equipment. Received my Tr3 today put it together when I got home from work this evening loaded it up and took it over to the other property. Worked on the barn lot that I know my dad hadn't graded in over twenty years.There's been semi traffic and heavy equipment on it for the last twenty years since he retired from farming but no more stone. It was weedy and looked bad. I knew how much stone had been put in there thru the years and just didn't want to add any yet. We received about three inches of rain Saturday so I thought let's give it a try. That piece of equipment worked great. After about two hours and getting it adjusted the lot looks like it did twenty years ago. A neighbor stopped by to check out what I was using and was very impressed. He lives back a quarter mile gravel lane. Went down and cut his drive also. Took the potholes out with no problem. Very Happy with it so far. Just wanted to give you a shout.

Additional Information

Tow Vehicle Sub-Compact Tractor, Compact Tractor, Utility Tractor
Applications Driveway Graders, Landscape Rakes, Grading Blades
