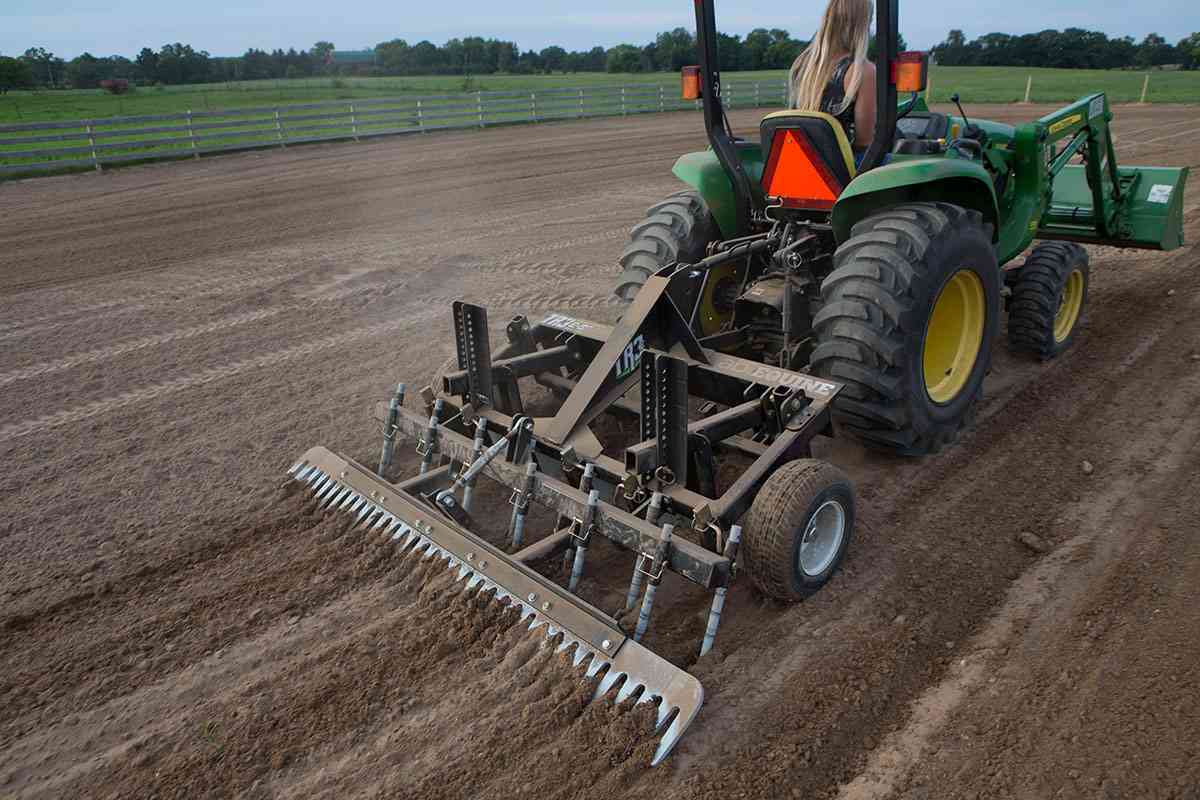

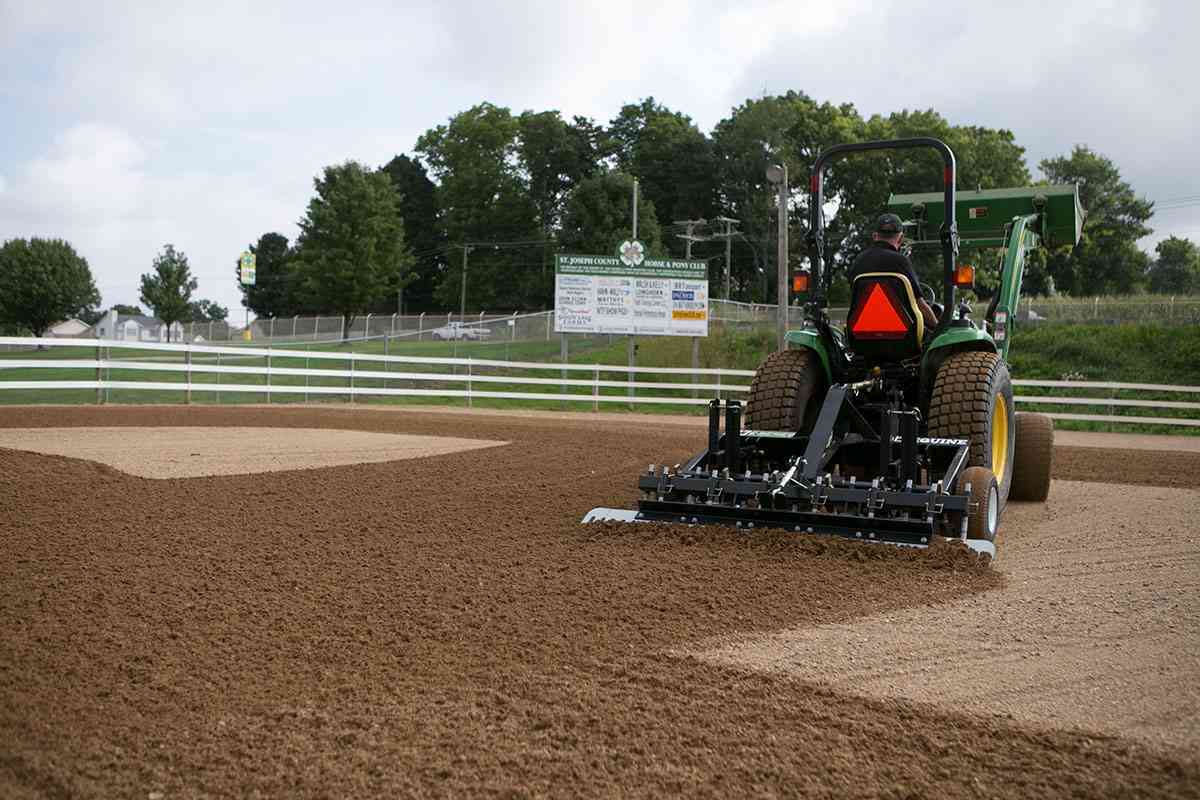

The TR3E Equine Edition is America’s bestselling 3-point arena drag for sub-compact and compact tractors! Its versatility enables you to professionally groom horse riding arenas, grade gravel driveways, smooth out dry lots, maintain trails, prep paddocks for seeding, break up manure in pastures, and prep soil for food plots!
Versatility outside the arena and precision performance inside the arena is made possible by the TR3E Equine Edition’s patented technologies. The included patented Profile Blade evenly cleans compaction below the arena footing surface, ensuring that what the horse sees on the top surface is what the horse feels when his hooves penetrate the ground!
Image Gallery
Dana Hokana Loves the TR3e Equine for her Arena
There just isn't anything better than that TR3 Arena Drag to help make my performance and my program complete.
Dana Hokana
Western All-Around
Ryan Rose loves his TR3e Equine
This thing is incredible. I mean it's like having a personal assistant for your arena. It does everything you need it to do.
Ryan Rose
Horse Trainer, YouTube Personality
The TR3E Equine Edition was designed for the everyday equestrian and is built right here by American craftsmen. Designed by ABI’s world-leading arena maintenance experts and engineers, the TR3E Series is the ultimate 3-point arena drag that can easily groom, properly prepare, and renovate arenas with a sub-compact or compact tractor.

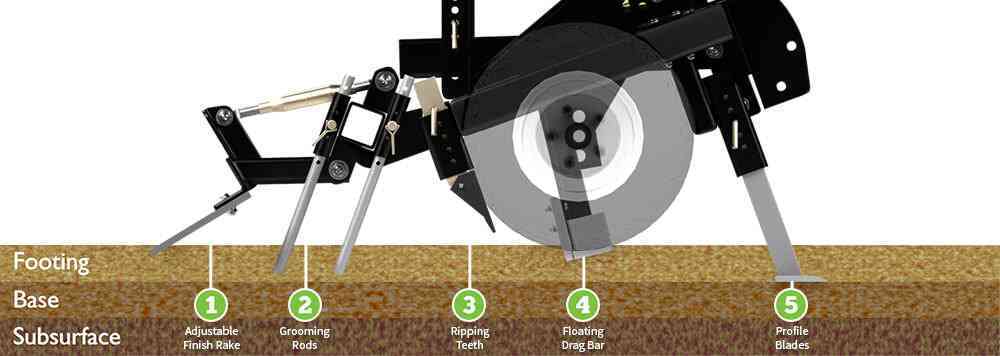

5 Ground-Engaging Components
The TR3E Series has 5 points of contact with the ground! These contact points all do something different and make the TR3E Series the most versatile and effective arena drag globally! To properly prepare the entire profile of an arena, your arena drag must have more than one or two types of ground engaging components. Simply grooming out the hoof prints won’t keep your horses sound, performing to their maximum abilities, or give you both the best chance for a long partnership.
Independently Adjustable Components
The TR3E Series has 5 ground engaging components, and ALL COMPONENTS are independently adjustable. These adjustable components provide the control needed to prepare the entire profile of your footing properly! At ABI Equine, we know that not all arena footing is the same! Variables such as materials used, moisture content, equine disciplines, and hours of use per day all contribute to properly preparing an arena.

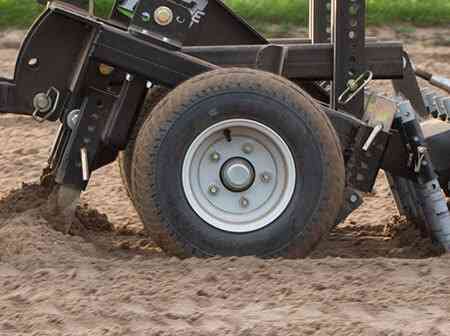

Positive Depth Control
Positive depth control starts with the TR3E Series tires. The tires suspend the ground-engaging components in relation to each other, ensuring precise and accurate grooming. Other drags depth gauge is controlled by the tractor’s lower arms, ripper teeth, and s-tines, requiring a skilled operator. However, because the TR3E Series has gauge tires, positive depth control enables anyone to achieve precise and consistent footing depth.

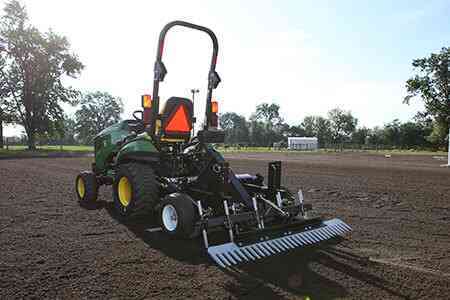

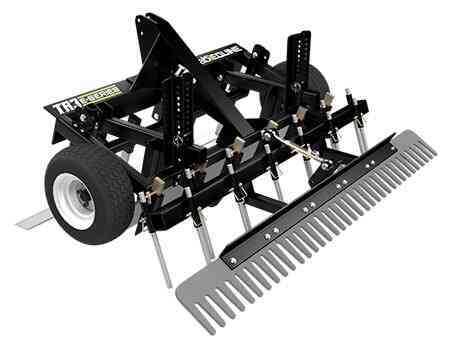

Short & Compact Design
Short & Compact Design
The TR3E Series rides close behind the tractor. Keeping the weight close to the three-point hook up gives smaller tractors more ability to pick it up and use it. In addition, this compact design eliminates the “sway” of traditional and longer arena drags. Longer drags are notorious for knocking out fencing, jumps, and hitting walls when used by inexperienced operators.

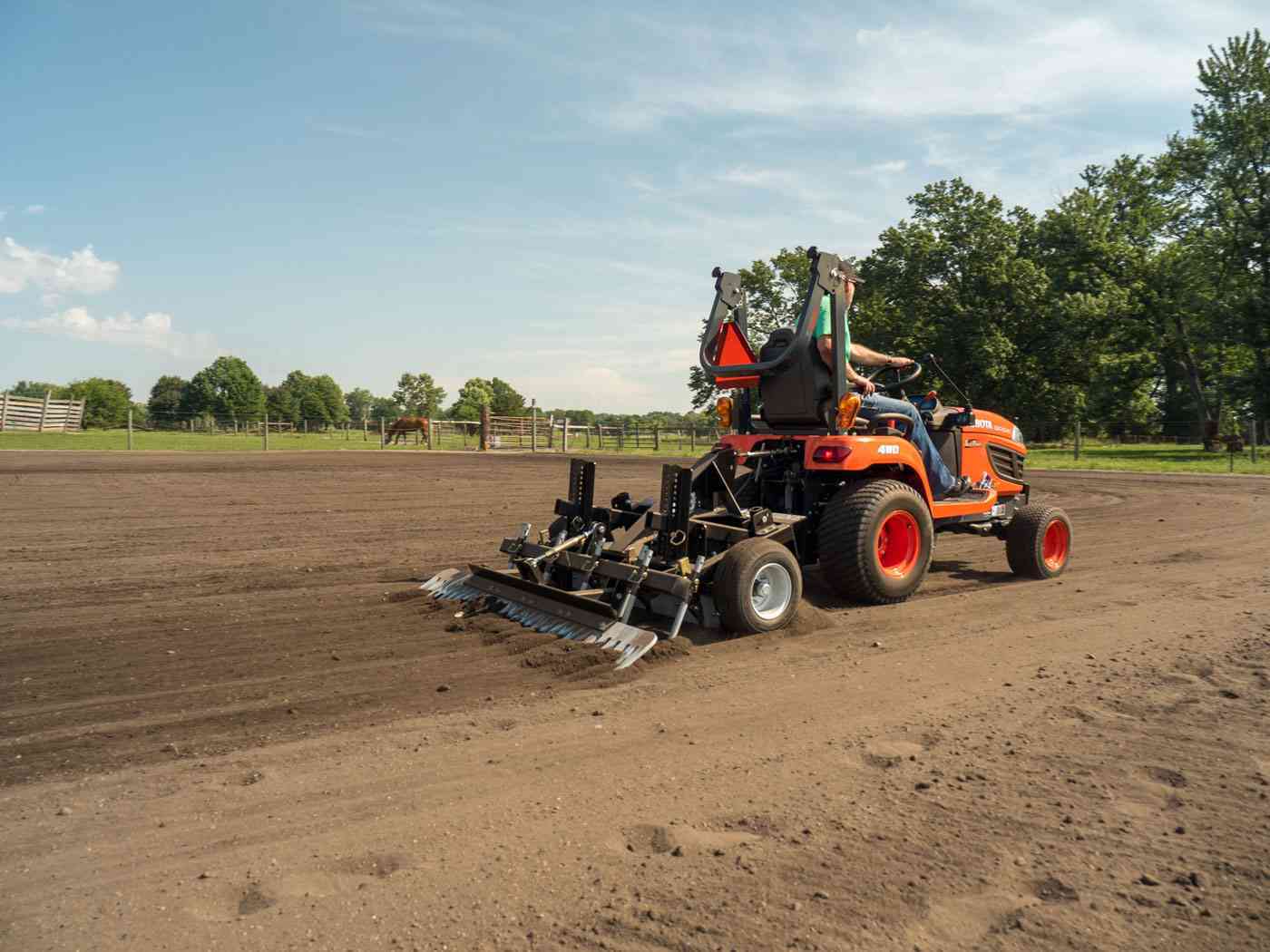

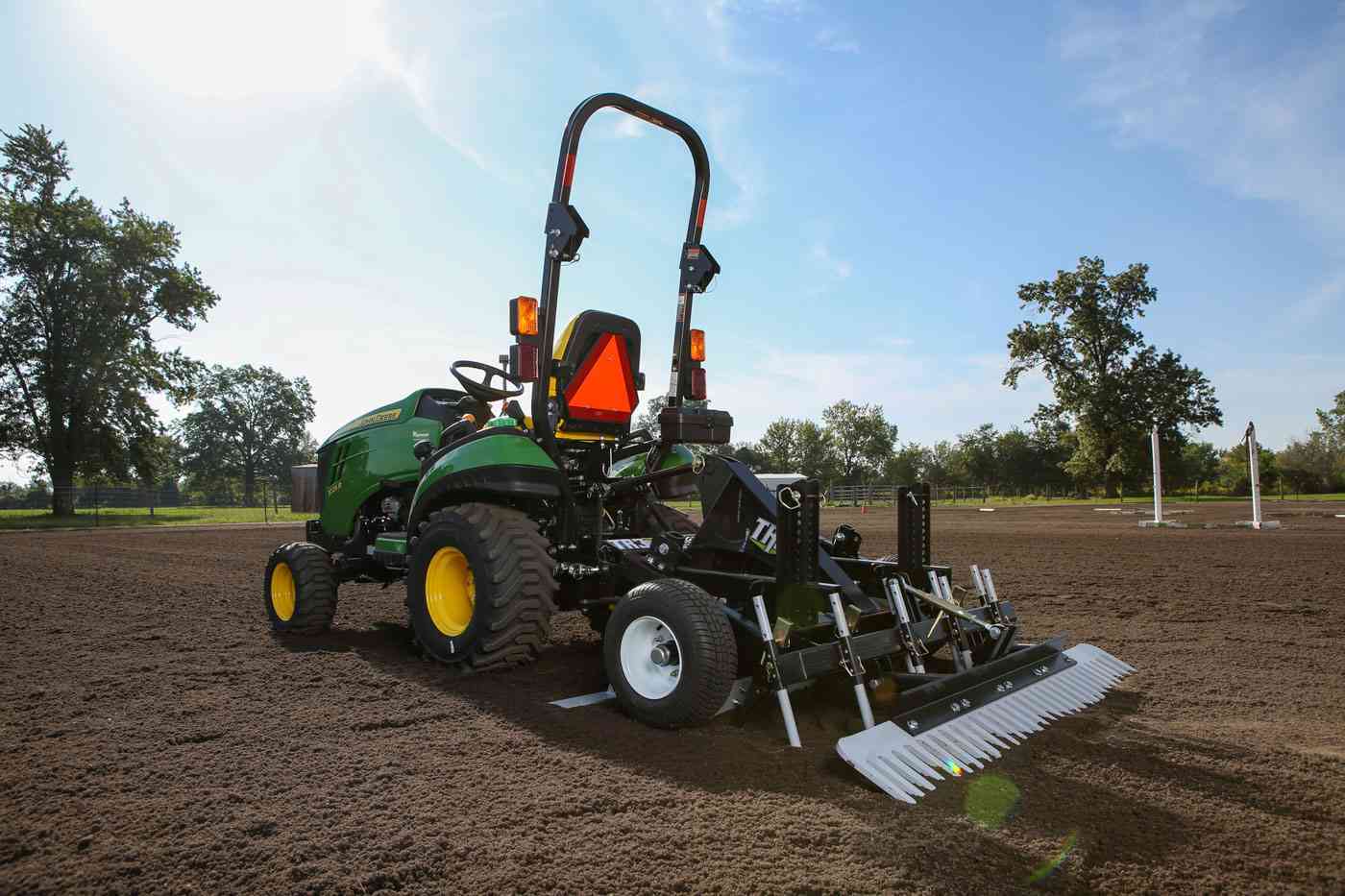

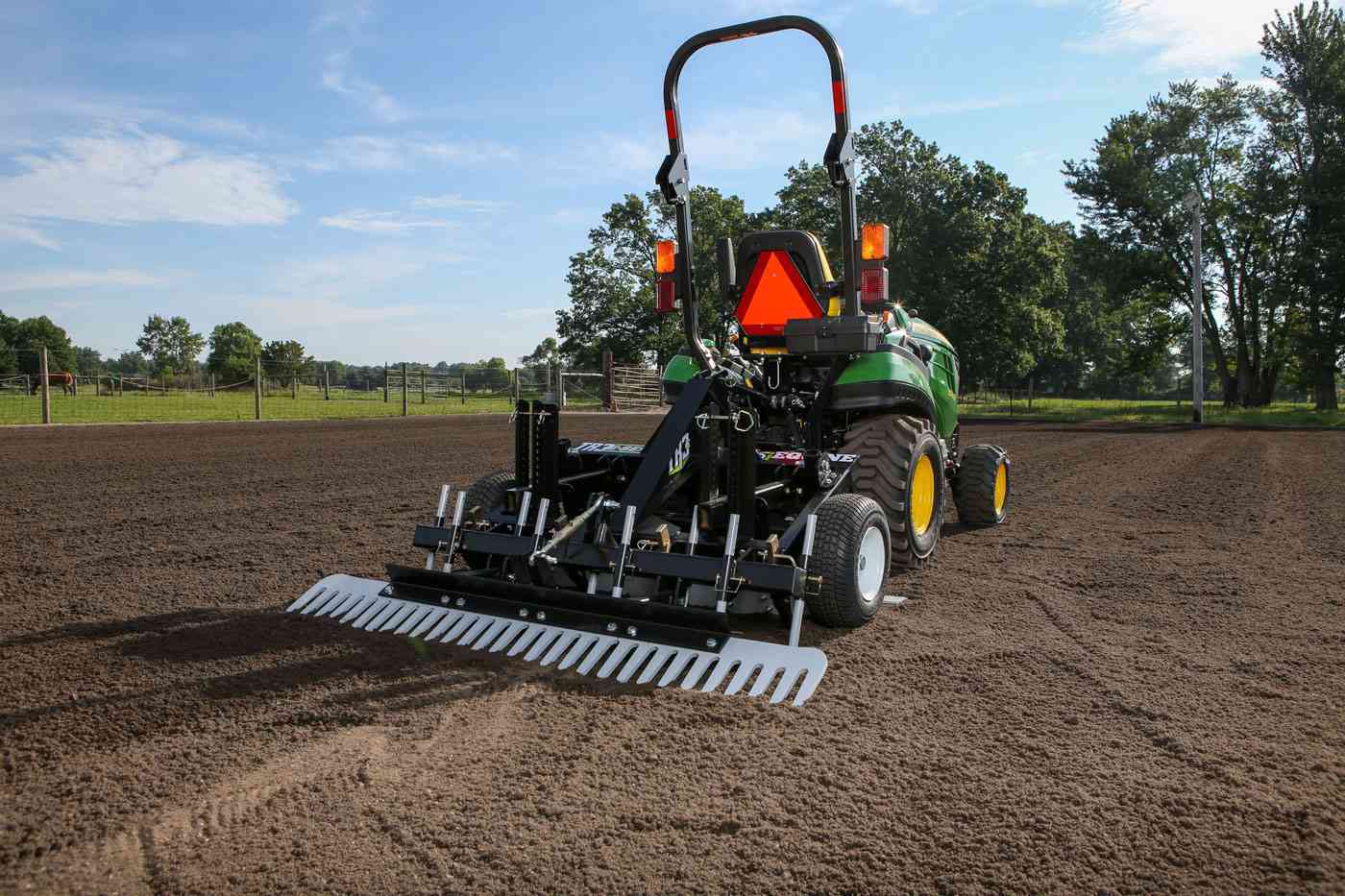

Sub-Compact and Compact Tractor
Sub-Compact and Compact Tractor
The TR3E Series was purposefully designed to enable smaller 23+ horsepower tractors to groom and renovate arenas precisely! No need to use a lightweight drag with a smaller tractor. No other arena drag offers more features, functions, and results connected to a sub-compact or compact tractor.
Arena Drag for Compact 3-point Tractors
With the versatile and performance-orientated TR3E Equine Edition arena groomer connected to your sub-compact or compact tractor, you are empowered with a durable, easy-to-use, and easy-to-connect arena groomer that will take your hobby farm or performance horse facility to the next level; no big tractor or hydraulics required.
6', 7', & 8' Widths. 60-month Limited Warranty
Top 10 advantages of the TR3E Series
There are clear and purpose built advantages between the TR3E Series and all other arena drags. These advantages deliver significantly better arena footing maintenance results and multi-function capabilities to manage your property.
Features
The TR3 E-Series has up to 5 ground engaging components that groom, properly prepare, and renovate horse arenas. These adjustable components provide proven innovation that helps keep your horses sound, performing to their maximum ability and around for a long time!

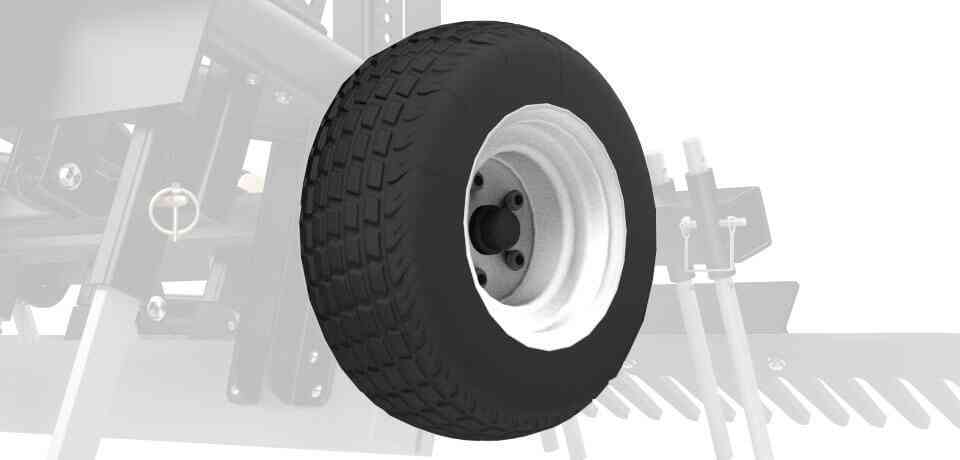

Stabilizing Wheels
Easily Create Consistent Footing Throughout The Arena
The patented center mounted wheels stabilize the frame of the TR3 E-Series and provide positive depth control to all ground engaging components. With three height adjustments, it's easy to find the perfect position for general grooming or renovating.
All 3-point tractor implements move in the opposite direction of the tractor's front tires. If the tractor's front tires go up, the 3-point goes down, causing most 3-point implements to dig holes and create waves in horse arenas. However, the TR3 E-Series offers stabilizing wheels to solve this problem, preventing it from undulating with the tractor's front tires.
The TR3 E-Series tires suspend the ground-engaging components in relation to each other, ensuring precise and accurate grooming, enabling anyone to achieve precise and consistent footing depth each time the arena is worked.
Profile Blades (Patented)
Remove Subsurface Compaction You Can't See
ABI's patented Profile Blade attachment is an innovative subsurface cutting blade that works similarly in concept to a sod-cutting knife to eliminate hidden dangers under an otherwise smooth-looking top riding surface. This attachment cuts parallel to the arena grade while riding above the base to remove dangerous compaction layers and aerify the footing. Unlike competitors, the Profile Blade attachment ensures that what the horse and rider see on the top surface is what the horse feels when his hooves penetrate the footing material! This new level of safety helps reduce vet bills and ensures productive time in the ring, as the horse will be more attune to riders' cues instead of unseen dangers below the surface. This technology works well in both arenas with and without a professionally installed base. If the arena does not have a base, the Profile Blades will pack the material below it to create a quasi base.

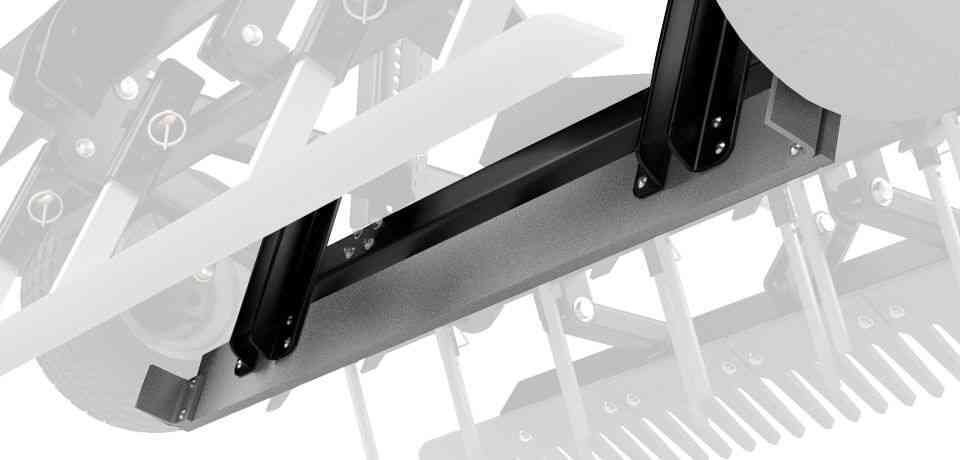

Leveling Blade (Patented)
Level The Arena, Don't Just Smooth It Out
Many competitors claim their drag has a leveling or grading blade; the reality is that they don’t. Many drags can smooth, few can level. Simply smoothing out hoof prints will never bring an arena back to grade. A drag must move footing from one part of the arena to another to claim it can level a horse arena. The TR3 E-Series has an industry-exclusive patented leveling blade that can operate in either a floating or fixed position.
- Floating Position: In the floating position, this blade will automatically catch high areas and drop that material into lower areas. If the arena is already level, it will not dig holes or create high spots. No skill is required to achieve or maintain a level grade in an arena that does not require renovation.
- Fixed Position: The leveling blade may also be locked into a fixed position to act as a box blade for rough grading and material spreading. This fixed position enables cut-and-fill style grading used when renovating an arena. When locked, the leveling blade moves material from high areas to low areas at the direction of the tractor operator. A bit more skill is required, but the TR3 E-Series is equipped to get the job done.

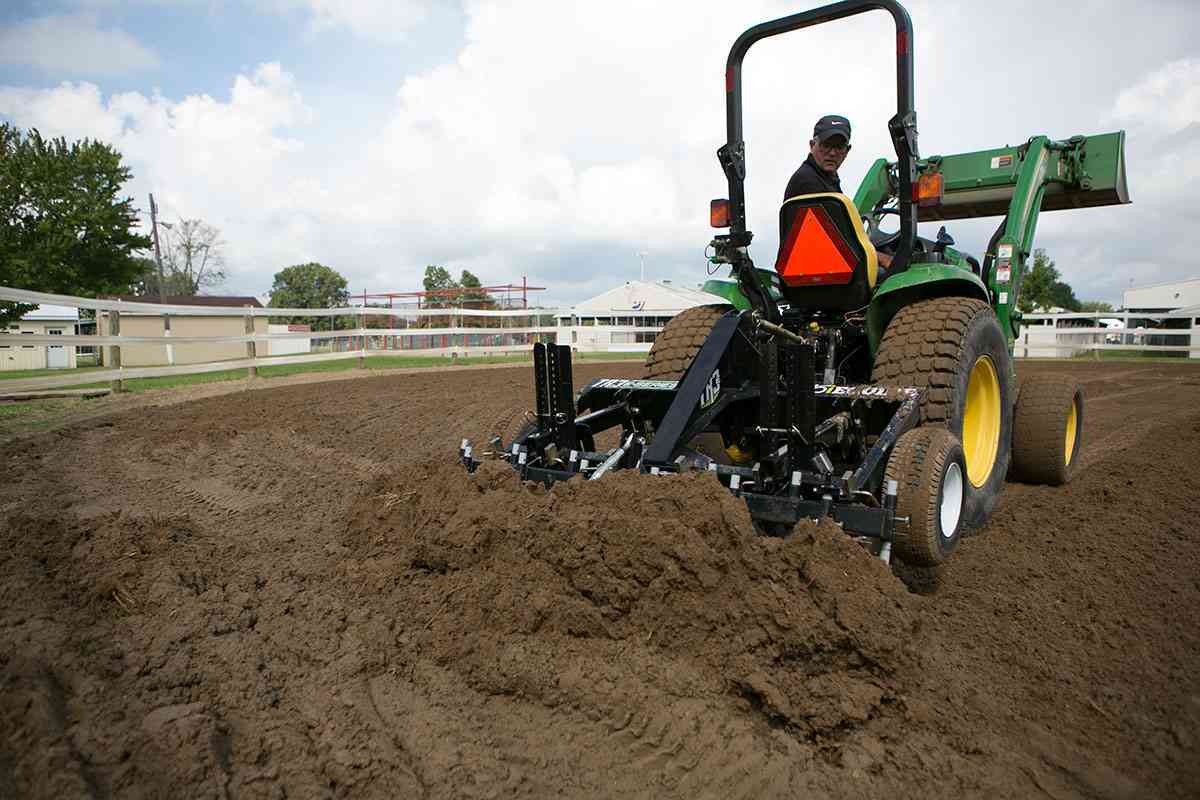

Ripping Teeth
The Teeth For Tough Work
The included adjustable rippers give the TR3 E-Series the teeth for tough dirt and gravel work. They are adjustable from 0 – 7″ to get to the bottom of the most compacted arena footing or gravel driveway potholes. Fortunately, the stabilizing wheels gauge the depth of these teeth to protect the arena's base, and the tips are easily replaced to restore peak performance once worn.
These forward-facing scarifiers should also be occasionally run in arena footing to help remix sand particles sizes, ensuring the footing is well graded for best stability. Over time large footing particles will rise to the top of the footing profile, and the small particles will settle to the bottom. Keeping these particles mixed is crucial to a high-performance footing. This soil grading principle also applies to gravel driveways.
Grooming Rods
Add Cushion & Texture To The Footing
The TR3 E-Series Equine Edition grooming rods add air to the footing for added cushion, helping to manage the perfect riding surface. While the Profile Blades loosen the footing horizontally, the Grooming Rods agitate the footing vertically, incorporating air and ensuring all compaction is loosened throughout the footing profile. The grooming rods follow the leveling blade and continue to level the footing for consistent feeding into the finish rake.
Additionally, Grooming Rods may be run either above or below the Profile Blade depth to add "texture" and "grip" to the footing, depending on the equine discipline and arena footing material. Reiners may choose to run the Grooming Rods and Profile Blades at the same depth, while Barrel Racers may run the Grooming Rods slightly below the Profile Blades to dial in the perfect footing.

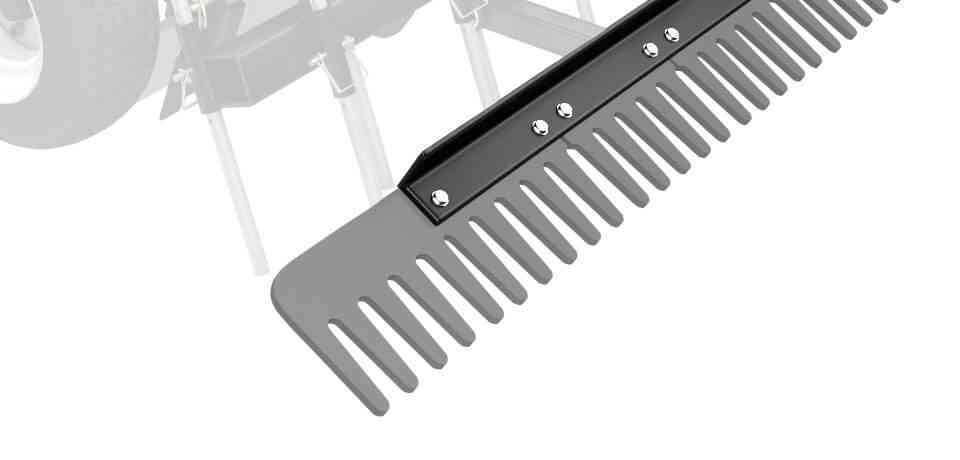

Adjustable Finish Rake
Create A Beautiful & Stable Signature Finish
The final component of the TR3 E-Series is the adjustable finish rake. This rear rake pulverizes and breaks up clumps of material and leaves a beautiful signature finish behind. The TR3 E-Series 1/2″ thick steel rake can adapt to various finishing positions suitable for differing material types and moisture levels by adjusting the rear manual turn-knuckle. This functionality enables the TR3 E-Series to groom material with the perfect flow, leaving the footing very loose or pushing the air out for more stability. Outside of the arena, it can work to grade and seal gravel driveways and break up manure lying on the pasture. The rake is replaceable in sections to reduce maintenance costs. Use caution when pushing backwards. Only push backwards on loose soil and at slow speed or damage could occur.
Easy To Use & Connect
The TR3 E-Series was specifically designed for ease of use, requiring no specialized skill to operate. It also has adjustments to accommodate any natural footing types and conditions. The TR3 E-Series is Quick Hitch compatible for simple and safe tractor connecting and disconnecting. Quick Hitch sold separately.
Options
Rail / Wall / Fence Blade
Eliminate Hours Of Back Breaking Work
The optional TR3 E-Series rail blade eliminates footing material buildup along the rail of a horse arena. This option saves hours of labor by eliminating the need to rake out tractor-accessible arena edges manually. The breakaway Get shear bolt, edge wheel, and edge marker stake pocket assist the operator with damage-free operation near wood fences, walls, and rails. (Driveway Marker Stake not included, available at local hardware)

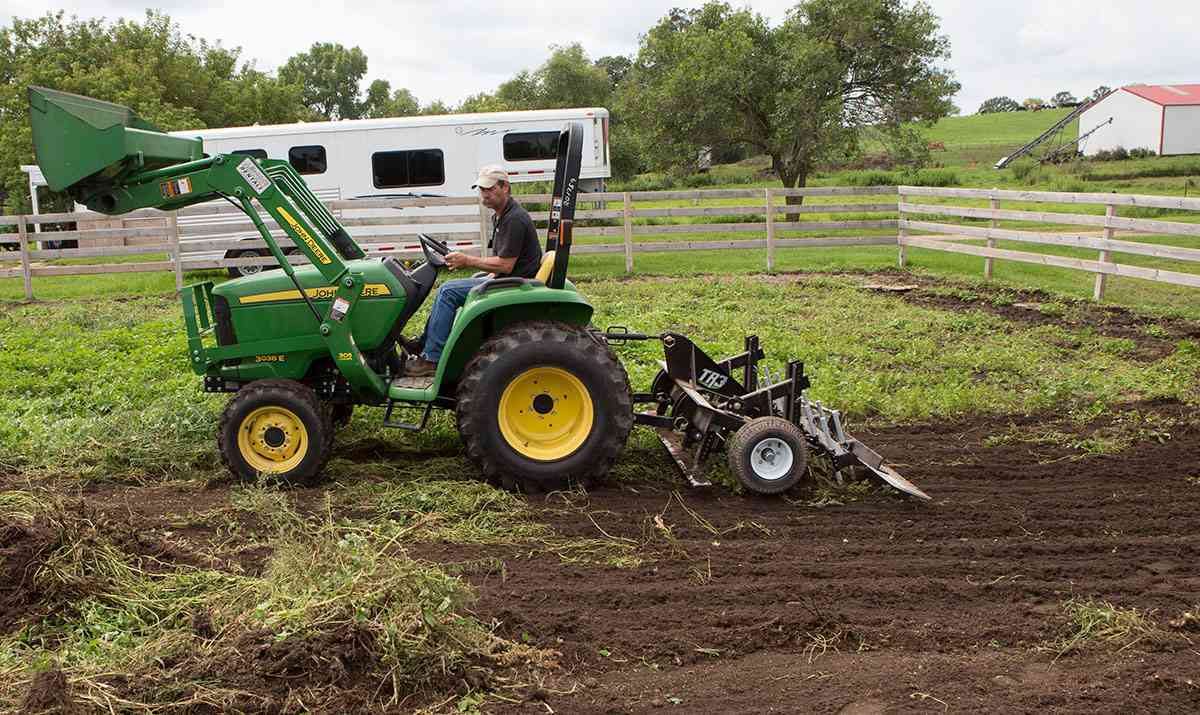

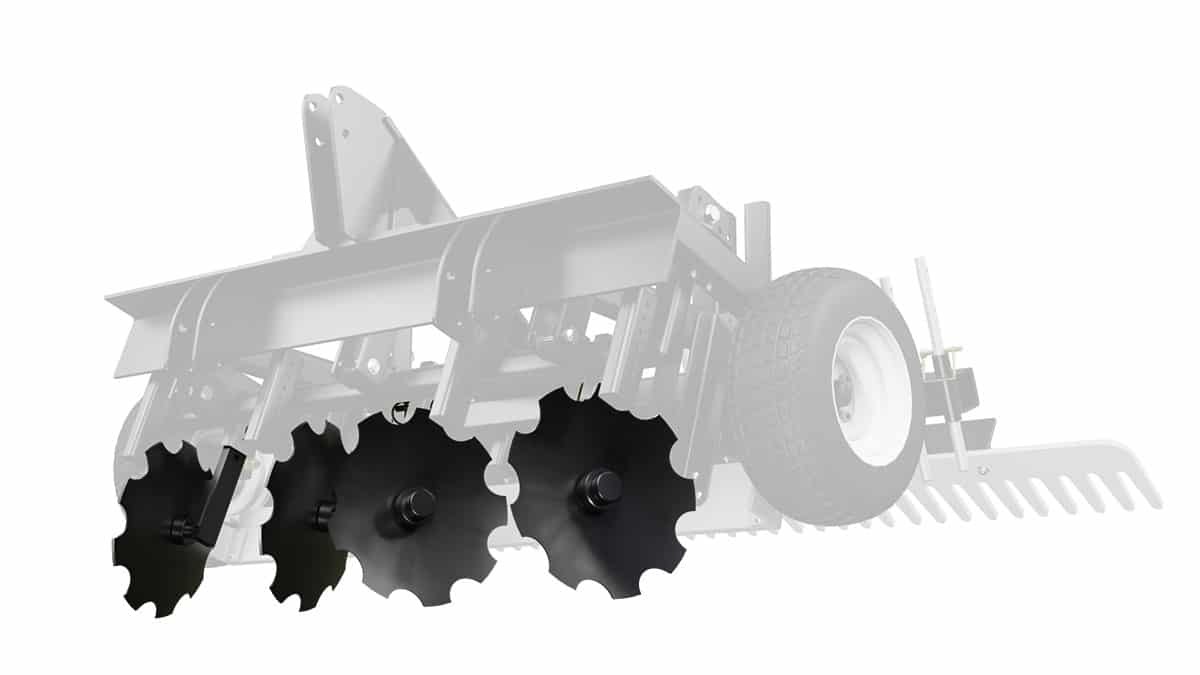

Food Plot Disc
Go Ahead & Play In The Woods
Does your love for the outdoors sometimes take you from the horse arena to the back-40 looking for other four-legged creatures? If so, the Food Plot Disc for your TR3 E-Series Equine Edition is an ideal option to transform your arena drag into a food plot disc harrow. The 14” notched discs mount to individual shanks and can be swapped in for the Profile Blades.
Request A Quote
Request a quote and an ABI Product Specialist will help you find the right attachment for your equipment.
No obligation. We never sell your data.
Prefer to call? 877-788-7253 (Mon-Fri, 9-5 ET)
Specifications
| TR3 E - Equine | 6' | 7' | 8' |
|---|---|---|---|
Tow Vehicle Requirements | |||
| Vehicle Type | Tractor with 3-Point | Tractor with 3-Point | Tractor with 3-Point |
| Min. Horsepower | 25 h.p. | 35 h.p. | 45 h.p. |
| Max. Horsepower | 65 h.p. | 75 h.p. | 85 h.p. |
| 4 Wheel Drive | Required | Required | Required |
| 3-Point Category | Limited CAT 1, CAT 1 | CAT 1 | CAT 1, CAT 2QH |
| Min. 3-Point Lift | 680 lbs. | 780 lbs. | 895 lbs. |
| Front Weight Needed | Yes, Min 20% of Total Machine Weight Required | Yes, Min 20% of Total Machine Weight Required | Yes, Min 20% of Total Machine Weight Required |
Unit Weights & Dimensions | |||
| Full Unit Weight | 680 lbs. | 780 lbs. | 895 lbs. |
| Full Shipping Weight | 810 lbs. | 935 lbs. | 1,075 lbs. |
| Unit Dimensions | 75.4"W x 57"D x 30"H | 87.4"W x 57"D x 30"H | 99.4"W x 57"D x 30"H |
| Shipping Dimensions | 48"L x 72"W x 36"H | 48"L x 88"W x 36"H | 48"L x 90"W x 36"H |
Frame Construction | |||
| 3-Point Hitch | Limited CAT 1, CAT 1 | CAT 1 | CAT 1, CAT 2QH |
| Quick Hitch Compatible | Yes | Yes | Yes |
| Tire Size | 16.5" Diameter x 6.5" Width x 8" Rim | 16.5" Diameter x 6.5" Width x 8" Rim | 16.5" Diameter x 6.5" Width x 8" Rim |
| Tire Type | Turf Tire - Air Filled | Turf Tire - Air Filled | Turf Tire - Air Filled |
Finish Rake | |||
| Type | Adjustable Relationship To Frame | Adjustable Relationship To Frame | Adjustable Relationship To Frame |
| Raking Width | 75" (6' 3") | 87" (7' 3") | 99" (8' 3") |
| Rake Material | 1/2" Steel - Laser Cut (Replaceable in sections) | 1/2" Steel - Laser Cut (Replaceable in sections) | 1/2" Steel - Laser Cut (Replaceable in sections) |
| Flared Ends | Yes | Yes | Yes |
| Push Material Backward | Completely Loose Material Only | Completely Loose Material Only | Completely Loose Material Only |
Grading Blade | |||
| Type | Floating, Fixed, or Float Within Range | Floating, Fixed, or Float Within Range | Floating, Fixed, or Float Within Range |
| Grading Width | 45.5" (3' 9.5") | 57.5" (4' 9.5") | 69.5" (5' 9.5" ) |
| Cutting Edge | Solid, Replaceable | Solid, Replaceable | Solid, Replaceable |
Scarifiers | |||
| Type | Rigid Shank - With Replaceable Tip (Bolt-On) | Rigid Shank - With Replaceable Tip (Bolt-On) | Rigid Shank - With Replaceable Tip (Bolt-On) |
| Scarifying Width | 44.4" (3' 8.4") | 56.5" (4' 8.5") | 68.5" (5' 8.5") |
| Scarifying Depth | 0" - 4 3/4" | 0" - 4 3/4" | 0" - 4 3/4" |
| # of Scarifiers | 4 | 6 | 8 |
| Scarifier Shank Length | 7" | 7" | 7" |
Grooming Rods | |||
| Grooming Width | 54" (4.5') | 67.5" (5.63') | 78" (6.5') |
| # of Gromming Rods | 9 | 13 | 17 |
| Grooming Depth | 0" - 8" | 0" - 8" | 0" - 8" |
| Grooming Rod Length | 16" | 16" | 16" |
Profile Blades | |||
| Available | Standard | Standard | Standard |
| Profile Blade Width | 58" (4' 10") | 70" (5' 10") | 82" (6' 10") |
| Profile Blade Depth | 0" - 6" | 0" - 6" | 0" - 6" |
| Mounting Location | Front | Front | Front |
| Unit Weight | 93 lbs. | 107 lbs. | 120 lbs. |
Warranty | |||
| Farm & Ranch Use | 60-month | 60-month | 60-month |
| Commercial Use | 12-month | 12-month | 12-month |
Attributes | |||
| Tow Vehicle | Sub-Compact Tractor, Compact Tractor, Utility Tractor | Sub-Compact Tractor, Compact Tractor, Utility Tractor | Sub-Compact Tractor, Compact Tractor, Utility Tractor |
| Product Type | Horse Arena Drags | Horse Arena Drags | Horse Arena Drags |
| Connection | Ltd. CAT I 3-Point, CAT I 3-Point | Ltd. CAT I 3-Point, CAT I 3-Point | Ltd. CAT I 3-Point, CAT I 3-Point |
