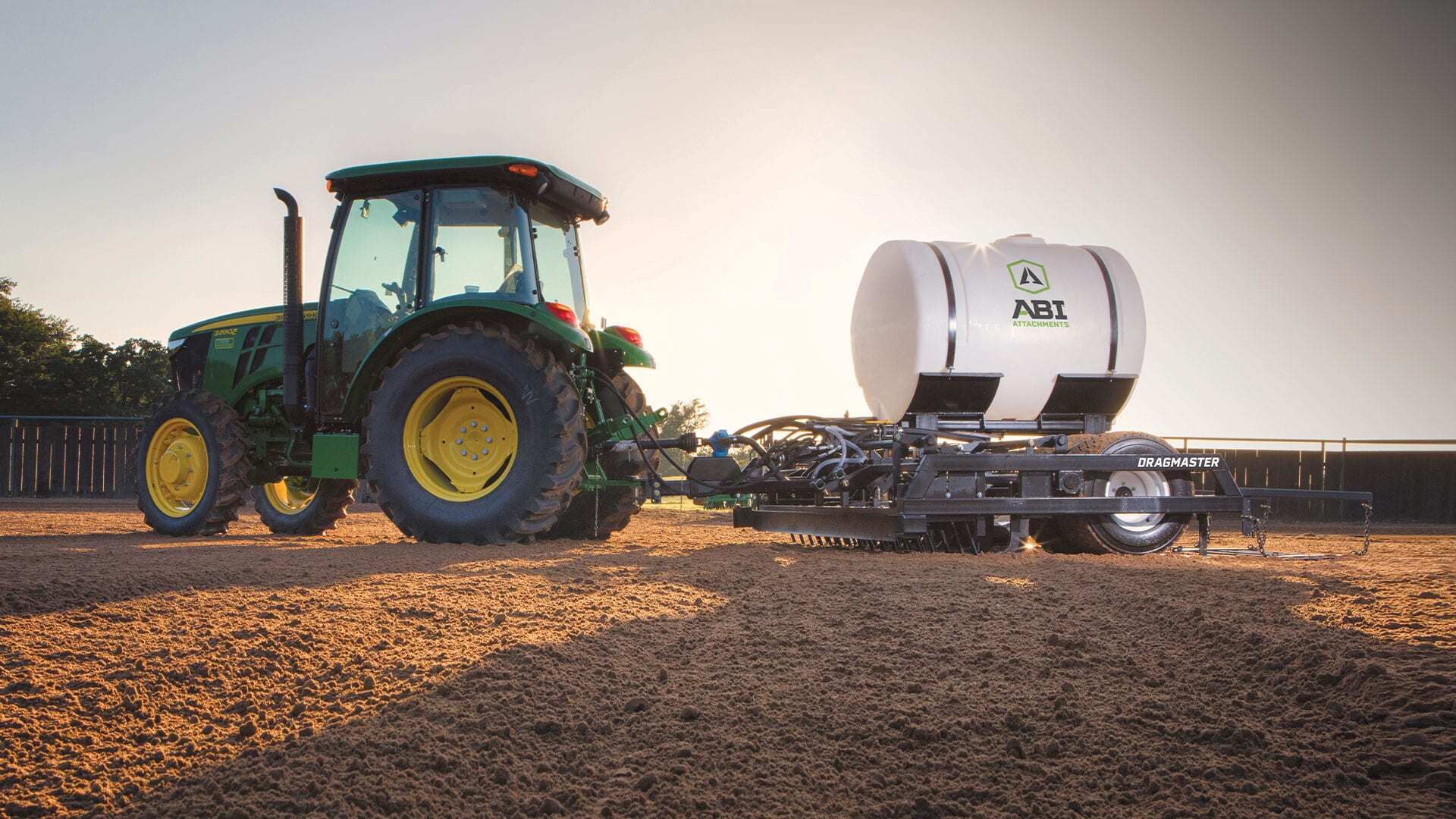

Used & recommended by leading organizations like the AQHA, NRHA, Lazy E Arena, and many of the industry’s top horsemen, the Dragmaster is the world’s premier arena drag! With all the features of the Dragmaster, you can easily create proper depth, consistent moisture content, and footing consistency to create a safe, healthy, and beautiful arena footing for your horses.
Image Gallery
Benefits of the ABI Dragmaster
When we put it out on the track to test it, it was absolutely fantastic. There's a lot of things happening. It's grooming, it's leveling, and then it's dragging it all in one. And at the same time, particularly in Australia it can get pretty warm. It was very dusty, so there's a water jet at the back that can help just suppress the dust when you're maintaining the track.
Navesh Ramdhani
General Manager of Racehorses - Australian Turf Club
Shad Mayfield at NFR 2025
The team reached out to me and said "Hey, what kind of tractor do you have, what kind of ground do you have, what's the size of your arena?" So they make sure that I have the perfect drag for what fits me the best. They're not just gonna sell you a drag. They're going to find out what's best for you.
Shad Mayfield
World Champion Tie-Down Roper
Keeps my ground in the best shape possible
With my new ABI Dragmaster, my ground has changed tremendously over the time that I've had it.
Shad Mayfield
World Champion Tie-Down Roper
Revolutionary Design & Industry Exclusive Features include Motor Grader Style Ground Plane: The pull behind design offers a long distance between the tractor wheels and the Dragmaster wheels. The leveling blade sits in between these wheels creating the perfect ground plane that is critical for level consistent footing. The Independently Controlled Hydraulic Leveling Blade is independent from the frame and other ground engaging components. This enables precision leveling without changing the conditioning depth.
Independent Ground Engaging Components
Revolutionary Design & Industry Exclusive Features include Motor Grader Style Ground Plane: The pull behind design offers a long distance between the tractor wheels and the ABI Dragmaster wheels. The leveling blade sits in between these wheels creating the perfect ground plane that is critical for level consistent footing. The Independently Controlled Hydraulic Leveling Blade is independent from the frame and other ground engaging components. This enables precision leveling without changing the conditioning depth.

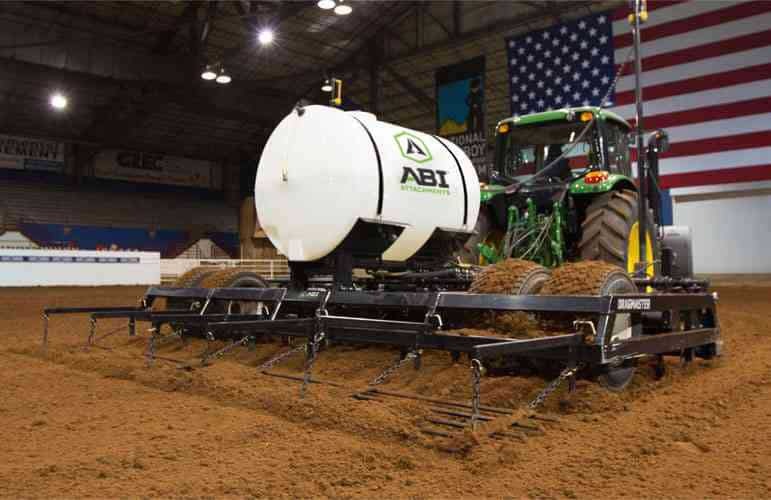

The ABI Dragmaster is shown fully equipped. This is the configuration most of our customers will need. However, some customers may not need all the included features so they may be removed from the ABI Dragmaster. Some indoor arenas that have pure sand may not need the hydraulic scarifier system. Indoor arenas that have an overhead watering system may not need the PTO water system. Although these features may be removed to lower the purchase price ABI recommends the fully equipped configuration for the vast majority of our customers.

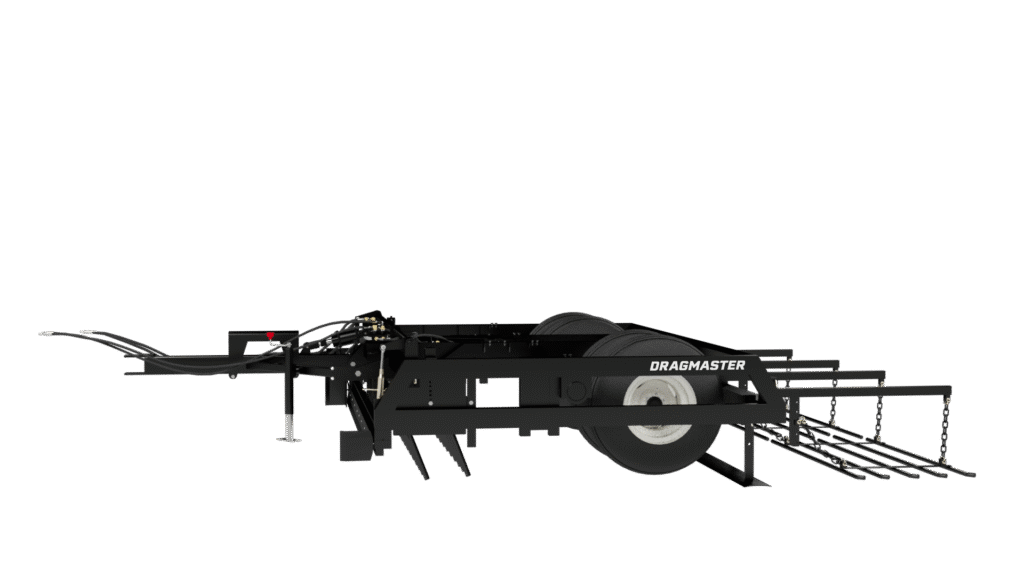

Base Model
- Hydraulic Grading/Leveling Blade
- Adjustable Grooming Rods
- Hydraulic Transport & Gauge Wheels
- Profile Blade
- Finish Drag Bars
Base Model with Scarifiers
- Hydraulic Grading/Leveling Blade
- Adjustable Grooming Rods
- Hydraulic Scarifier System
- Hydraulic Transport & Gauge Wheels
- Profile Blade
- Finish Drag Bars

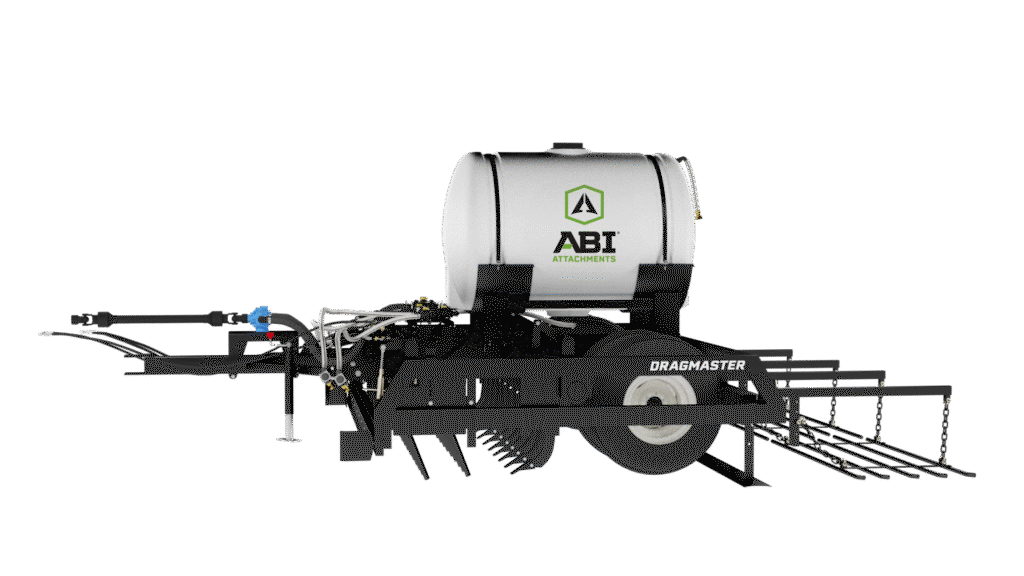

Fully Equipped
- Hydraulic Grading/Leveling Blade
- Adjustable Grooming Rods
- Hydraulic Scarifier System
- Hydraulic Transport & Gauge Wheels
- Profile Blade
- Finish Drag Bars
- 300-500 Gallon PTO Water System

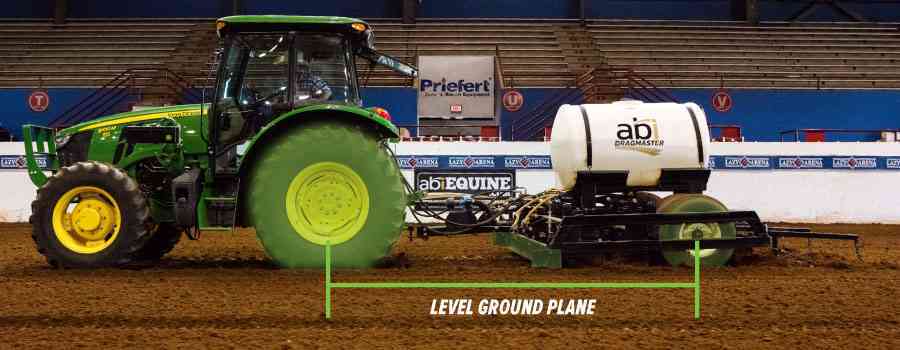

Pull-Behind Ground Plane Design
The innovation behind the Dragmaster begins with its pull-behind design. By creating a ground plane, this design offers distance between the wheels of the tractor and Dragmaster. The Hydraulic-leveling blade sits between these wheels for precision grading creating perfectly level and consistent footing, which allows the Dragmaster to outperform all 3-point arena drags.

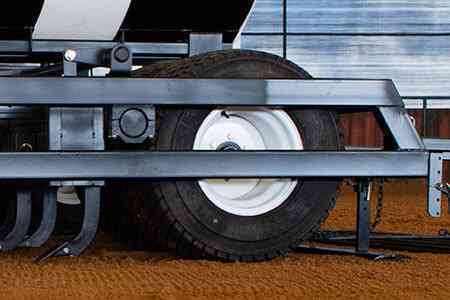

Hydraulic Transport & Gauge Wheels
Hydraulic Transport & Gauge Wheels
Supporting the Dragmaster and controlling its working depth are the hydraulic transport & gauge wheels. These wheels keep the arena footing consistent with every pass. Consistency is key to the performance and safety of the horse. The main hydraulic cylinder controls the gauge wheels, which allows you to lock in your settings for repeatable and precise results. Whether at home or an event, every operator can ensure a consistent riding experience for each horse and rider.

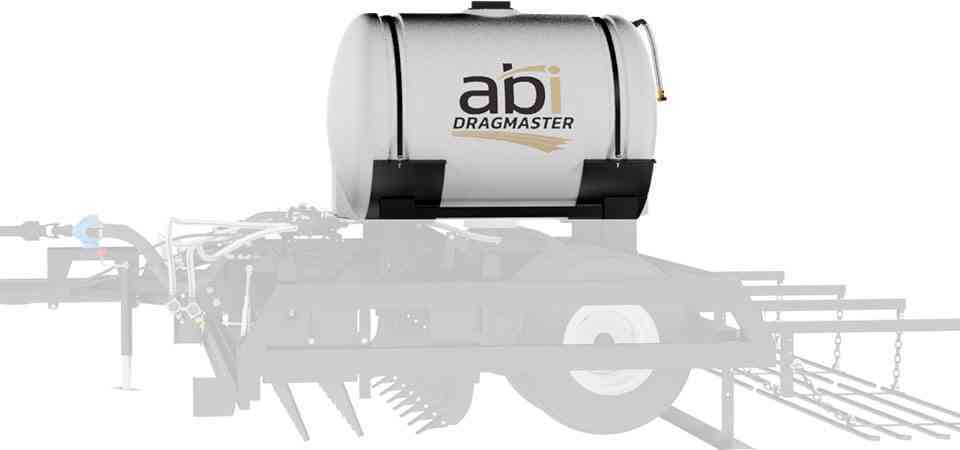

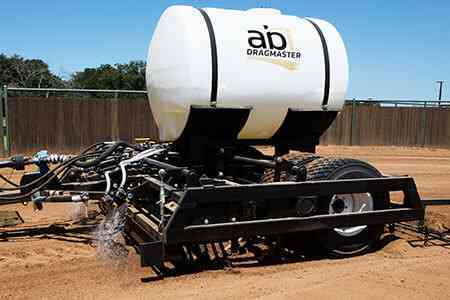

Massive PTO Watering System
Massive PTO Watering System
The available massive PTO watering system regulates the amount of water in your footing, which is critical to its strength, cushion, and rebound, not to mention dust control. The Dragmaster has the largest watering system available on any arena drag in the world ranging from 300gal to 500gal. The variable-output PTO-driven pump allows precision control from the tractor seat, making a perfect water application easy!
The World's Premier Arena Drag
- Ground-Engaging Components
- 5
- Possible Configurations
- 150
- H.P. Rating
- 45-150
- Limited Warranty
- 12-Month
Features

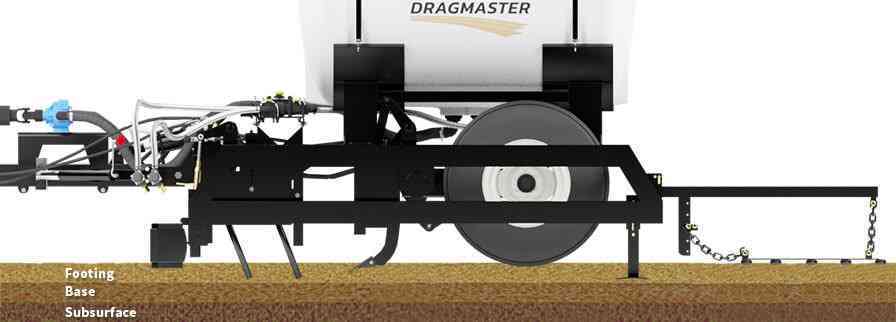

The Dragmaster’s independently-adjustable ground-engaging components can be precision-adjusted from the frame for ultimate control! After the hydraulic leveling and grading blade creates a level traveling surface, the adjustable grooming rods, scarifiers, profile blade, and drag bars systematically pulverize, re-grade and loosen the footing, reinforce the base, and create the ideally-cushioned footing profile!

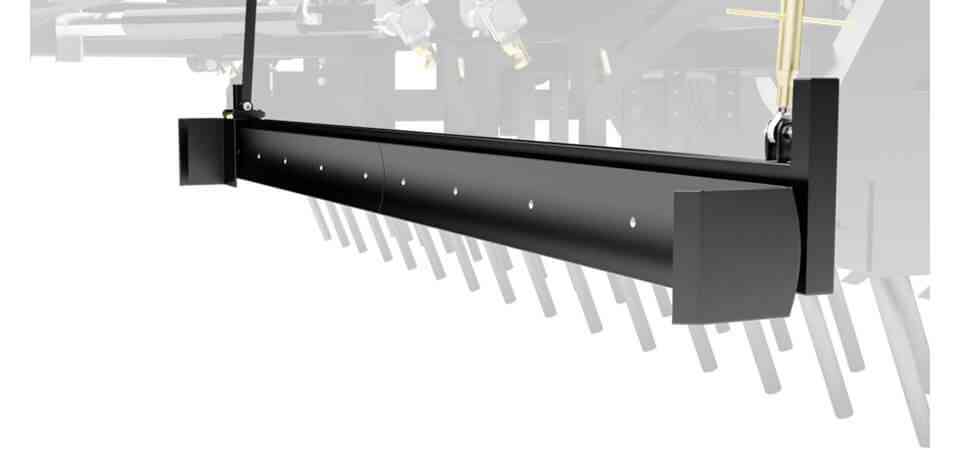

Hydraulic Grading & Leveling Blade
Maintain Consistent Footing Depth
The first adjustable component is the hydraulic grading & leveling blade. Used to maintain consistent footing depth and equalize high and low areas across the arena. Level your arena automatically with the optional laser system!

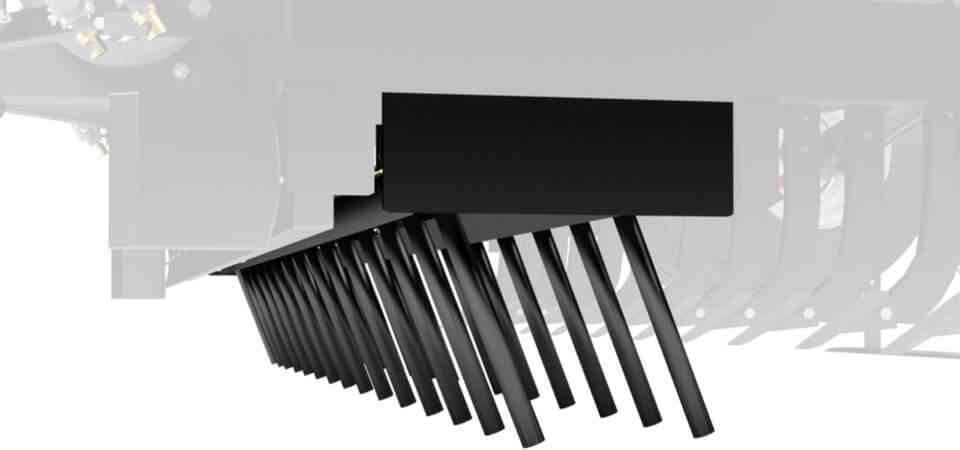

Adjustable Grooming Rods
Loosen Material & Incorporate Water
The 2 rows of adjustable grooming rods are the first components to loosen material, and are designed to incorporate the Dragmaster’s water into the footing.
Hydraulic Scarifier System
Break Up The Hardest Compacted Material
The Dragmaster’s available hydraulic scarifier bar breaks up the hardest compacted material for when an arena sees heavy use or hasn’t been properly loosened for a time. The bar is independently adjustable from the rest of the components, enabling them to be engaged or disengaged easily. The replaceable tips are made from a hardened, wear-resistant steel.
Profile Blades
Slice Through Material From The Bottom Up
The patented Profile Blades of the Dragmaster can loosen 100% of the arena footing with every pass! No longer does an operator have to make multiple passes to loosen all the footing. The Profile Blades slice through material from the bottom up, not the top down. This eliminates all ridges in the footing, allowing the footfall of the horse to be flat and perfect every time!

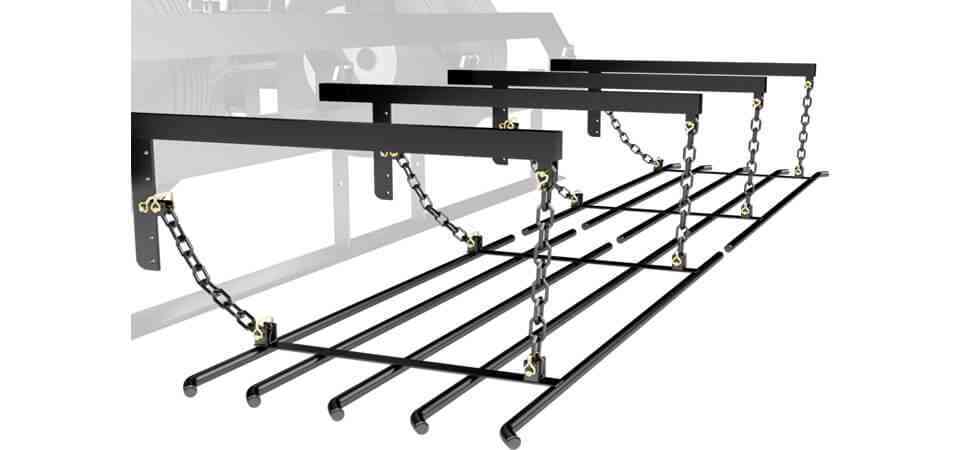

Finish Drag Bars
Leave A Signature Finish
The Drag bars of the Dragmaster are designed to leave a signature finish while filling in any remaining small holes. These bars can be adjusted to apply the perfect amount of pressure to the footing depending on the footing consistency and moisture level.
300-500 Gallon PTO Water System
Regulate The Amount Of Water In Your Footing
The available PTO watering system regulates the amount of water in your footing, which is critical to its strength, cushion, and rebound, not to mention dust control! The Dragmaster has the largest watering system available on any arena drag in the world. The variable-output PTO-driven pump allows precision control from the tractor seat, making a perfect water application easy! 300 or 500 gallon size. For facilities with another arena moisture solution (water trailer, sprinklers, etc.), the Dragmaster can now be fitted without a water system from the factory!
Options

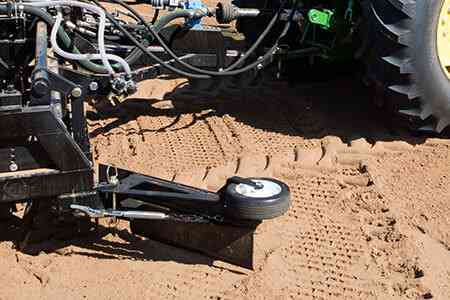

Rail Blade
Every arena experiences footing displacement, especially ones that have heavy use. The rail blade rides along the edge of your arena and guides footing back into the path of the hydraulic leveling blade for even distribution across the arena!

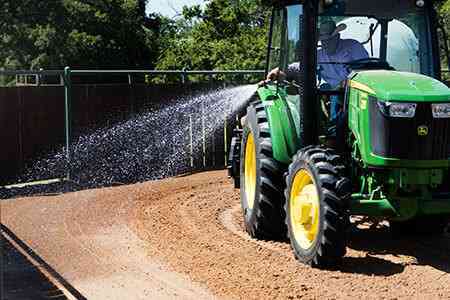

Spray Hose
The Dragmaster’s spray hose helps provide the extra polish and “finish factor” to arenas. Use it to clean panels and fencing, wash down your tractor and drag, or apply water to hard-to-reach areas like corners and entry areas. Long enough to be safely operated from the tractor seat!

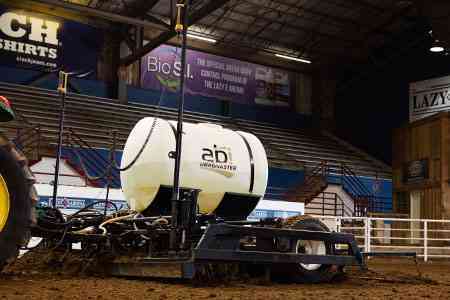

Laser System
Take all of the guess work out of grading your arena! The optional laser system ensures perfectly-consistent footing depth from one end of the arena to the other. Optional laser packages are specially configured to provide everything needed to maintain a level grade & consistent footing depth.
Request A Quote
Request a quote and an ABI Product Specialist will help you find the right attachment for your equipment.
No obligation. We never sell your data.
Prefer to call? 877-788-7253 (Mon-Fri, 9-5 ET)
Specifications
| ABI DragMaster | 8' | 10' | 12' | 16' |
|---|---|---|---|---|
Base Unit | ||||
| Working Width | 8' (96") | 10' (120") | 12' (144") | 16' (192") |
| Min. Horsepower | 45 | 55 | 65 | 85 |
| Max. Horsepower | 100 | 120 | 150 | 150 |
| Tractor Hydraulic Ports | At least 2 in & 2 out (4 ports) Required | At least 2 in & 2 out (4 ports) Required | At least 2 in & 2 out (4 ports) Required | At least 2 in & 2 out (4 ports) Required |
| Hydraulic Leveling Blade | ||||
| Adjustable Grooming Rods | ||||
| # of Grooming Rods | 23 | 29 | 35 | 47 |
| Grooming Rod Spacing | 2 Offset Rows (8" Center Per Row) 4" Space Between | 2 Offset Rows (8" Center Per Row) 4" Space Between | 2 Offset Rows (8" Center Per Row) 4" Space Between | 2 Offset Rows (8" Center Per Row) 4" Space Between |
| Adjustable Profile Blades | ||||
| Rear Finish Bars | ||||
| Pin Hitch | ||||
| Finish | Rust Resistant Black Powder Coating | Rust Resistant Black Powder Coating | Rust Resistant Black Powder Coating | Rust Resistant Black Powder Coating |
Wheel Configurations | ||||
| # of Wheels | 4 | 4 | 4 | 4 |
| Available Implement Tires | 11L - 15SL I-1 8-ply, 30.6" MTD Diam., 10.7 MTD Width, 36 Max PSI | 11L - 15SL I-1 8-ply, 30.6" MTD Diam., 10.7 MTD Width, 36 Max PSI | 11L - 15SL I-1 8-ply, 30.6" MTD Diam., 10.7 MTD Width, 36 Max PSI | 11L - 15SL I-1 8-ply, 30.6" MTD Diam., 10.7 MTD Width, 36 Max PSI |
| Available Max Flotation Tires | - | 31L - 15.5 15 8-ply, 30.6" MTD Diam. 14.3 MTD Width, 45 Max PSI | 31L - 15.5 15 8-ply, 30.6" MTD Diam. 14.3 MTD Width, 45 Max PSI | 31L - 15.5 15 8-ply, 30.6" MTD Diam. 14.3 MTD Width, 45 Max PSI |
Rippers (Optional) | ||||
| Additional HP Required | 10 | 10 | 15 | 20 |
| Hydraulic Ports Required | 3rd Set or Install Available Hydraulic 2-way Sequence Valve (HYDSV2M) | 3rd Set or Install Available Hydraulic 2-way Sequence Valve (HYDSV2M) | 3rd Set or Install Available Hydraulic 2-way Sequence Valve (HYDSV2M) | 3rd Set or Install Available Hydraulic 2-way Sequence Valve (HYDSV2M) |
| # of Scarifiers | 10 | 12 | 14 | 18 |
Water Systems (Optional) | ||||
ABI DragMaster | ||||
| Tractor PTO Required | ||||
| PTO Pump | Cast iron 6-roller pump; Max. flow 62 gpm; Max. pressure 150 psi | Cast iron 6-roller pump; Max. flow 62 gpm; Max. pressure 150 psi | Cast iron 6-roller pump; Max. flow 62 gpm; Max. pressure 150 psi | Cast iron 6-roller pump; Max. flow 62 gpm; Max. pressure 150 psi |
| # of Brass Nozzles | 4 | 4 | 4 | 4 |
300 Gallon System | ||||
| Available | No | |||
| Additional HP Required | 10 | 10 | 10 | - |
| Implement Tires | - | |||
500 Gallon System | ||||
| Available | No | No | ||
| Additional HP Required | - | 15 | 15 | 15 |
| Implement Tires | - | |||
Laser Systems (Optional) | ||||
| Hydraulics Packages | Available proportional valve and hoses factory installed on drag. (Requires 4th set of hydraulic ports on tractor or 3 sets of ports with HYDSV2M Installed) Must be ordered as "open" or "closed" to match with tractors hydraulics system. | Available proportional valve and hoses factory installed on drag. (Requires 4th set of hydraulic ports on tractor or 3 sets of ports with HYDSV2M Installed) Must be ordered as "open" or "closed" to match with tractors hydraulics system. | Available proportional valve and hoses factory installed on drag. (Requires 4th set of hydraulic ports on tractor or 3 sets of ports with HYDSV2M Installed) Must be ordered as "open" or "closed" to match with tractors hydraulics system. | Available proportional valve and hoses factory installed on drag. (Requires 4th set of hydraulic ports on tractor or 3 sets of ports with HYDSV2M Installed) Must be ordered as "open" or "closed" to match with tractors hydraulics system. |
| Electronics Packages | Available transmitters: Dual Slope, Single Slope, or Level. Also included in the package is the Receiver, Detector, and (Operator View) Control Box. | Available transmitters: Dual Slope, Single Slope, or Level. Also included in the package is the Receiver, Detector, and (Operator View) Control Box. | Available transmitters: Dual Slope, Single Slope, or Level. Also included in the package is the Receiver, Detector, and (Operator View) Control Box. | Available transmitters: Dual Slope, Single Slope, or Level. Also included in the package is the Receiver, Detector, and (Operator View) Control Box. |
| Receiver Pole | Available | Available | Available | Available |
| Transmitter Tripod | Available | Available | Available | Available |
Accessories (Optional) | ||||
| Wall / Rail Blade | Available | Available | Available | Available |
| Spray Hose | Available | Available | Available | Available |
Miscellaneous | ||||
| Fully Equipped Dry Weight | 2,800 lbs. | 3,400 lbs. | 4,100 lbs. | 5,400 lbs. |
| Fully Equipped Min PTO HP | 65 w/4WD | 70 w/4WD | 85 w/4WD | 115 w/4WD |
| Warranty | 12-month | 12-month | 12-month | 12-month |
| Designed Use | Horse Arena | Horse Arena | Horse Arena | Horse Arena |
| Made In USA |
