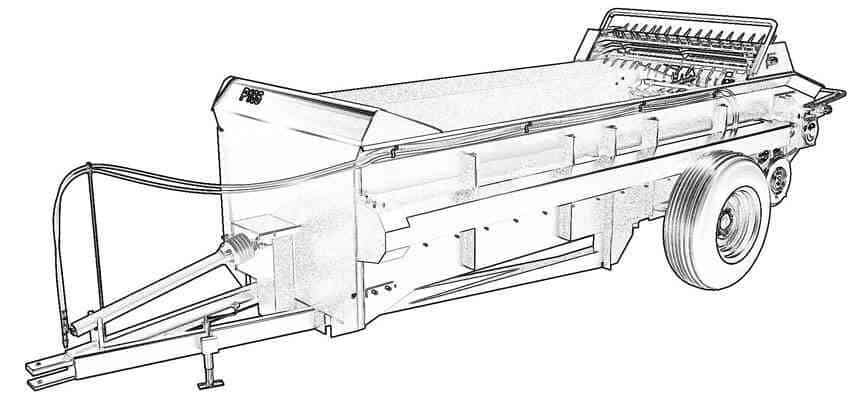

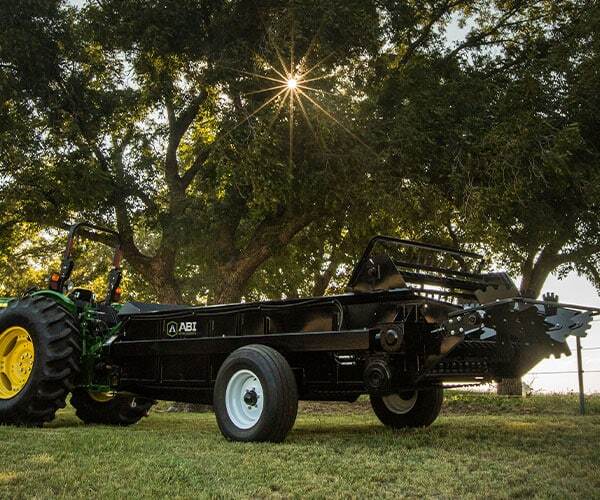

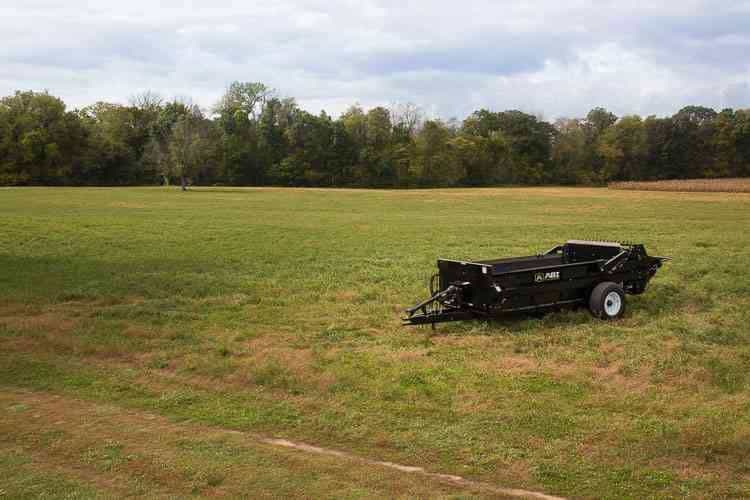

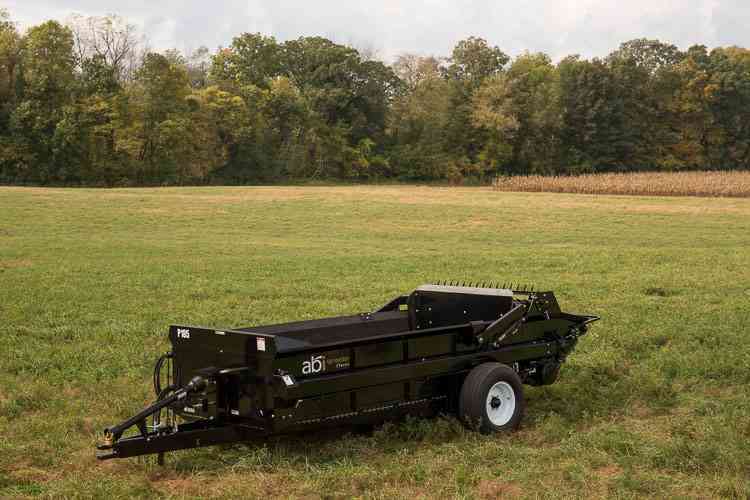

185 ft³ - Largest PTO Manure Spreader

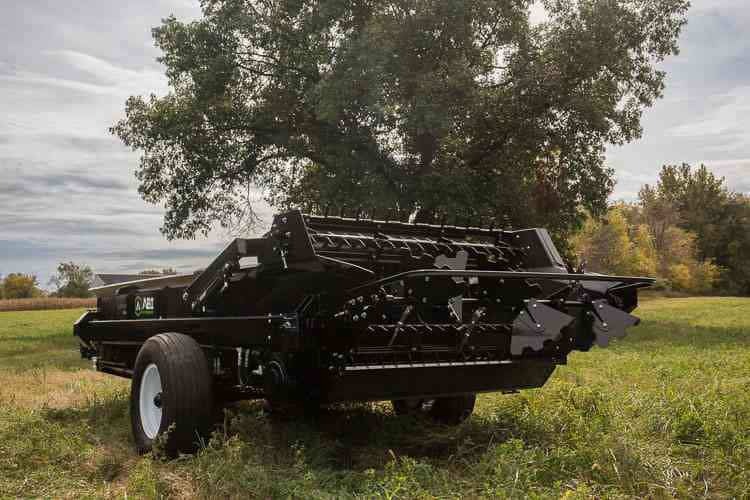

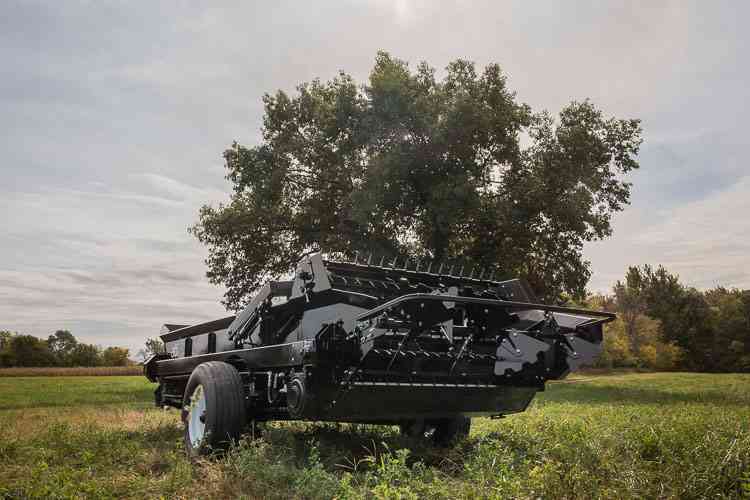

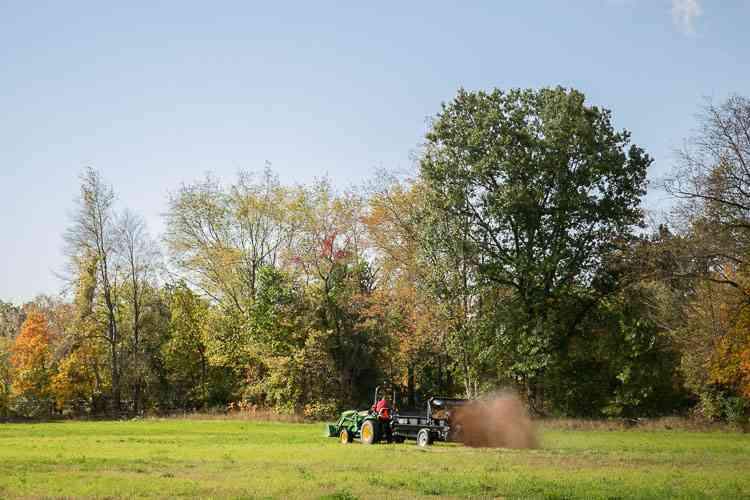

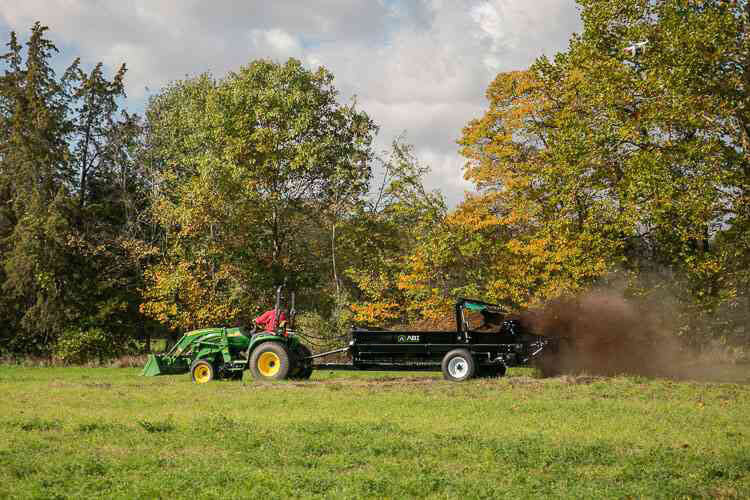

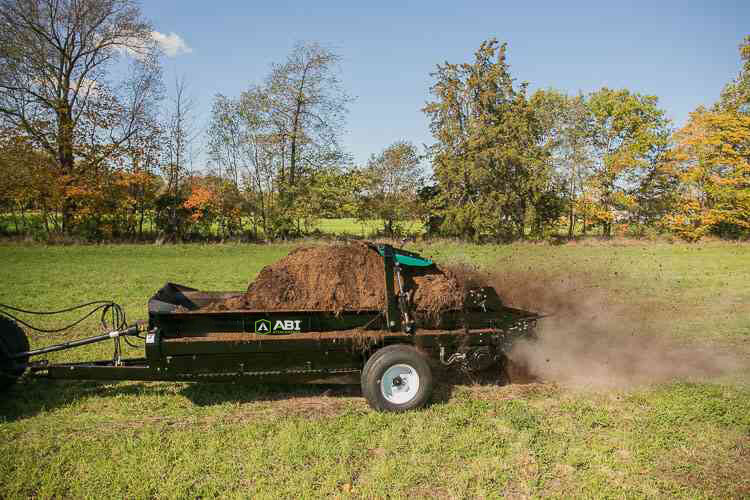

The 185 cu. ft. model is equipped standard with 3 beater bars. Two designed to shred manure and the other designed to spread it evenly. The shredder beaters, with 160 shredding blades, is geared slower than the wide spread beater to maximize shredding power. The spreading beater is expertly designed to further breakdown the manure and evenly distribute it on the ground. The 185 cu. ft. manure spreader has 14 large wide spread paddles. Shredding before spreading and then evenly spreading over a wide swath, exposes more manure surface to sunlight which allows it to dry and decompose far more quickly. Owning an ABI manure spreader that both shreds manure before it spreads and also controls the amount of manure being applied to the ground, enables the horse owner to help maintain an eco-balanced pasture. An eco-balanced pasture can help reduce colic, increase pasture turn efficiency rates, help produce more vigorous grass growth, and reduce odor & flies around the farm.

We start with extremely thick 10 gauge corrosion-resistant COR-TEN steel construction. Unlike most spreaders, the Classic Spreader is a longterm “one-time” investment which has a fully welded box frame, using thicker steel, for worry-free durability. COR-TEN steel may be exposed to the elements, even unfinished, and rust will not perforate it for decades. With COR-TEN steel, you get the longevity and strength required to build a world-class spreader, without the unneeded additional expense and structural weakness of stainless steel.

The inside of the spreader body is coated with an epoxy box liner. The epoxy box liner adds an industrial seal to protect from the severe corrosive effects of urine filled manure. epoxies are commonly used to line underground sewage tanks and pipelines, and even protect the hulls of barges in salt water.

The bottom flooring is constructed of extremely thick tongue-and-groove polyvinyl lumber that will never rot, rust, or need replacing. Even better yet, the tongue-and-groove construction prohibits the individual poly-boards from warping, preventing excessive wear or damage to the apron web. This is a premium maintenance free flooring that will last and comes standard with a limited lifetime warranty.

Built in the heartland by highly skilled craftsman with decades of spreader building experience, these spreaders are crafted for daily farm-use-conditions and made of the most durable components we know of. Materials such as grade-5 bolts, greaseable bearings, oil-impregnated bronze bushings, heavy-duty size 60 roller chain (nearly 1″ wide), T-Rod apron chain, and hardened sprockets ensure longevity. You can judge a spreaders materials and components quality by its overall unit weight, the heavier the better. The ABI spreader weighs nearly 1/3 more than equivalently sized competitors spreaders. Now that is tangible quality you can feel!

All steel components are sand-blasted before painting to prime for perfect adhesion. A special commercial-grade coating (PPG AUE-370), a black gloss acrylic urethane paint twice as thick as Rust-Oleum is then applied. Unlike powder-coating, this paint is easy to repair and touch-up and moisture cannot get behind it which eliminates the possibility of rust forming under the finish layer.

The Hydraulic End Gate is designed to close off the back end of the manure spreader to prohibit spillage out the back of the spreader into the barn aisle or during transport. The end gate is raised and lowered hydraulically and serves to additionally help deflect flying manure away from the operator and tow vehicle while spreading.

For those that leave nothing to chance, the Fines Pan prevents small fines of manure from falling off the back of the spreader and to the ground without first being processed by the beater bar. The pan has a release for easy cleaning and is replaceable. The Fines Pan can also assist in preventing manure from falling out the back of the spreader during loading and transport. A fines pan is highly desired when spreading dry material such a saw dust bedding, wood chip bedding, or dry compost; any type of material with small fines.
