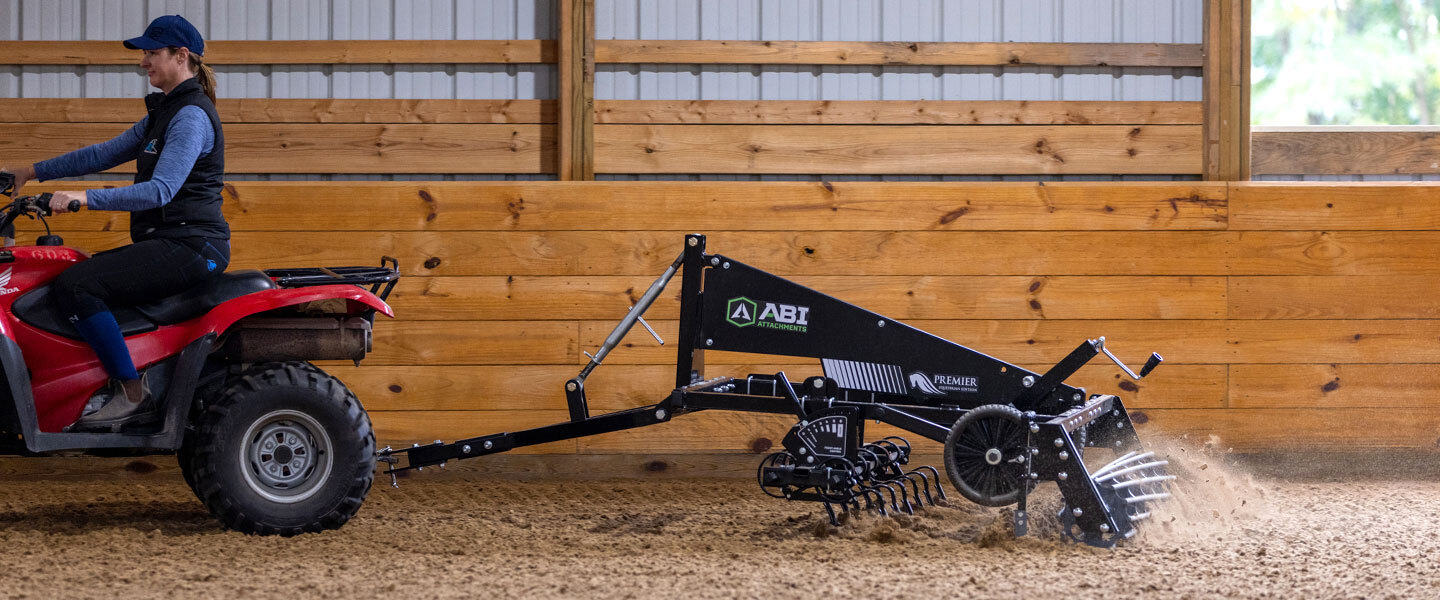

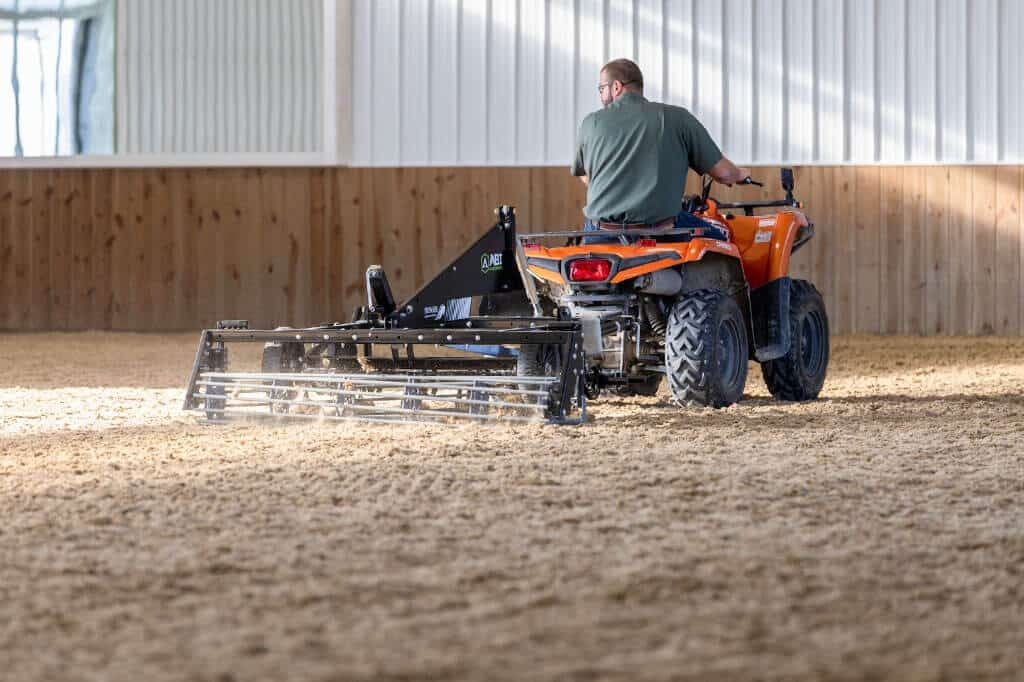

ATV Horse Arena Drag for Sand Footing

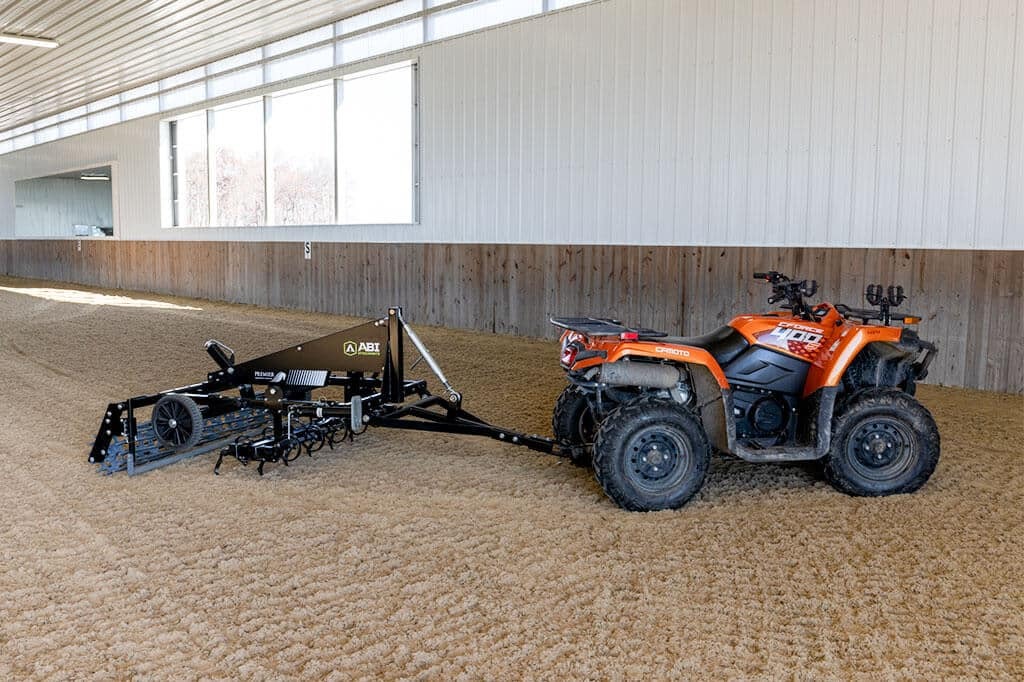

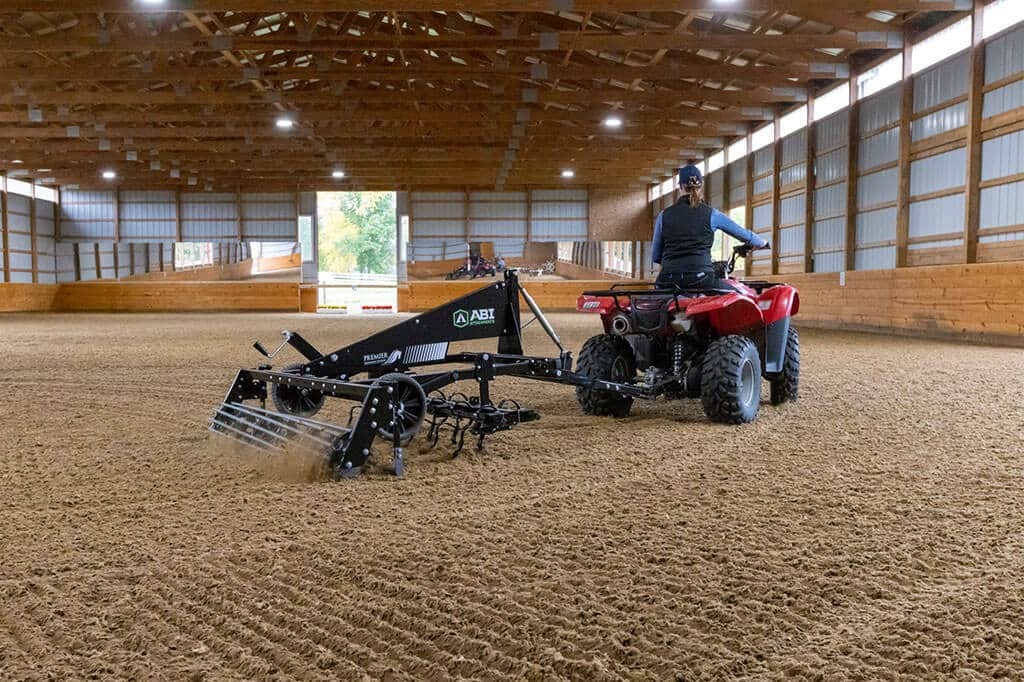

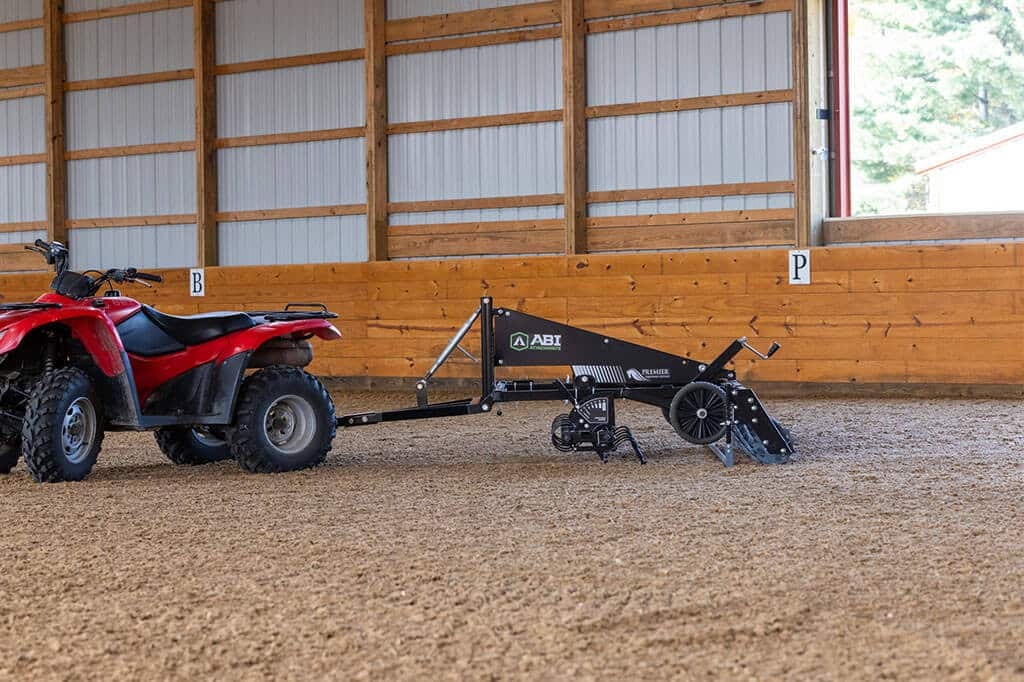

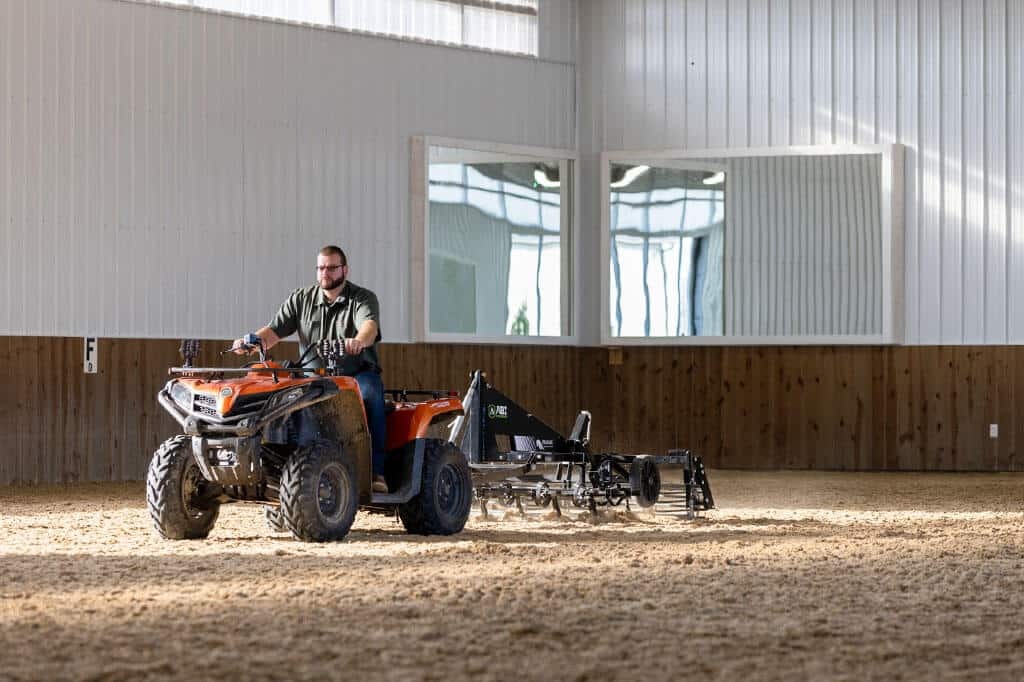

The SportPro M1 – Premier Equestrian Edition was designed so you can get professional-level results in a smaller facility—no matter what kind of synthetic additives you’re working with. For smaller ATVs, zero turn mowers, or utility golf carts that have a rear hitch, the SportPro M1’s unique structure is made to perfectly suit the requirements for your specific arena moisture and additives.
67.5″ Width.
Image Gallery
Impressions with Dan James
One of the things that impressed me most about the ABI SportPro was that when the drag went to the ground, that it went to moving and swiveling behind the tractor. Once it was lifted up, it then locked in position which made it easy to move in and out of arena gates and also through the barn.
Dan James
Champion Reiner
First Look: Adrienne Lyle
What's so great about this tool is that each element is adjustable, so the groomer is set how I want it for best footing consistency for my horses and my discipline.
Adrienne Lyle
Two-time Olympic US Dressage Rider

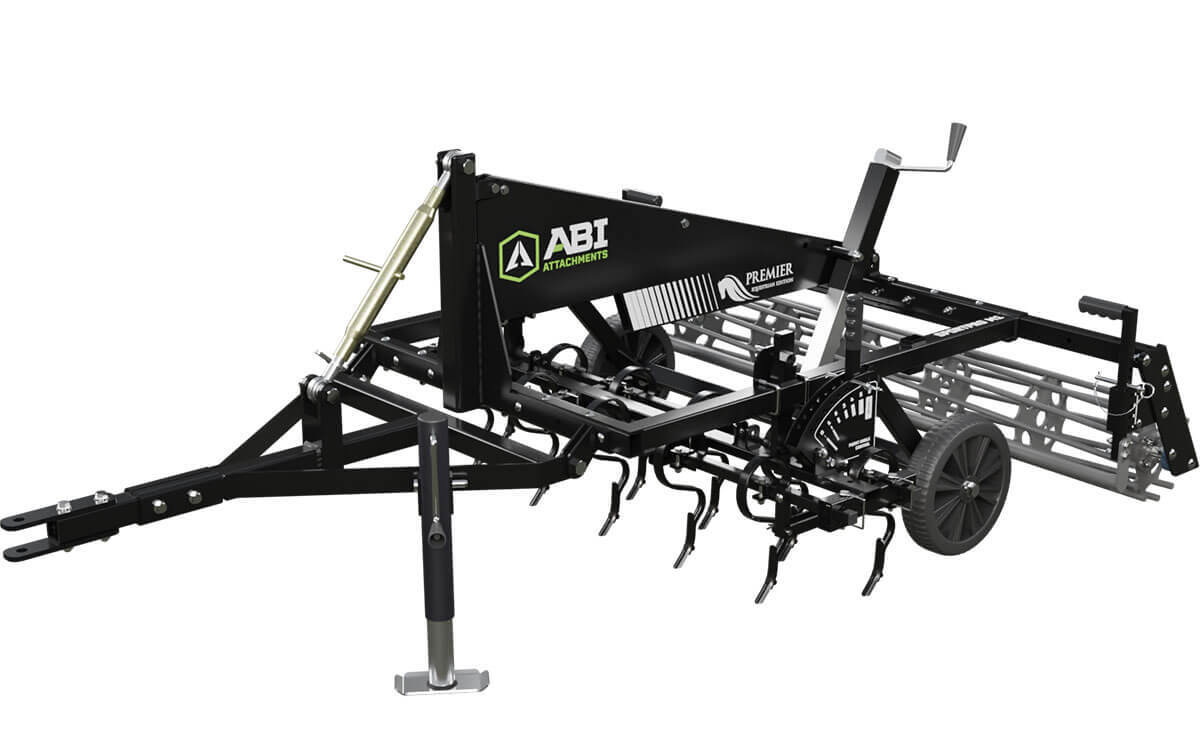

Features

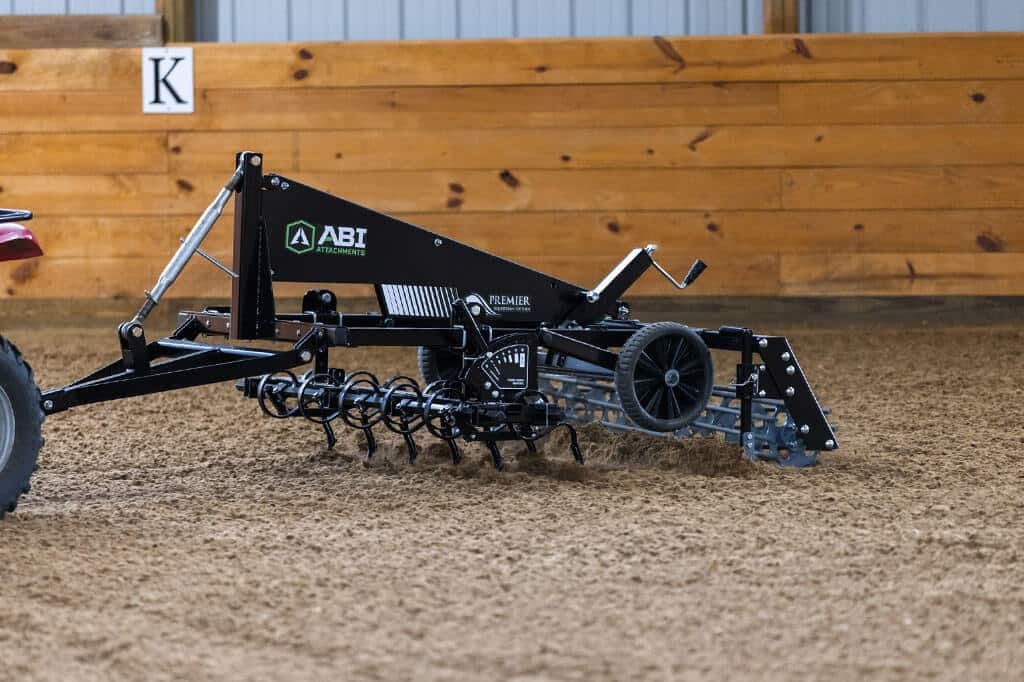

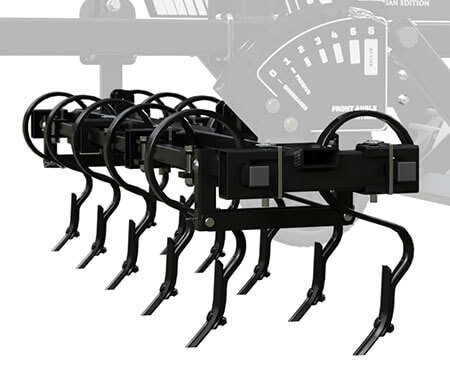

S-Tines
A Safer Way to Go Deeper
If you have a limited amount of water in your arena or your additives require frequent mixing, the S-tines will provide holistic blending for your everyday grooming. The Sport Pro M1’s danish-styled S-tines act intuitively in synthetic footing, their springy give loosens and mixes material without causing damage to the base. S-Tines offer a safer way to go deeper, pulling up small fines and fibers that have settled to the bottom. S-tines are also suited for self-amending or self-installing additional materials or fibers.

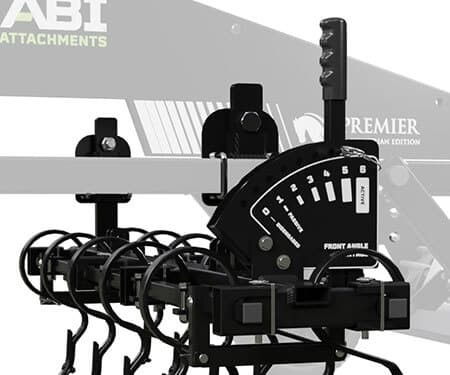

Conveniently Adjustable
Get the Best Out Of Your Footing
Adjust the pitch of the S-tines and the depth of the smoothing bar to get exactly what you want out of your footing. With its easy adjustment capabilities, you can change the surface tension in your arena for different disciplines and for conditioning. Once you have the groomer set for your arena, lock the tool in place, so you can count on consistent, repeatable results, no matter who's in the driver's seat.

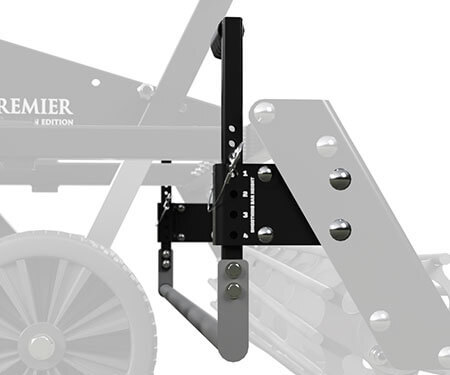

Smoothing Bar
Level Your Footing Without Plugging Up
The smoothing bar is adjustable in quarter inch increments for maximum precision adjustment. The smoothing bar allows for some build up to accumulate so it can level out any excess material while filling remaining lines or grooves. The cylinder shape of the smoothing bar allows material to flow under as well as over—creating a smoothing effect under the bar, and preventing excess material from plugging up.

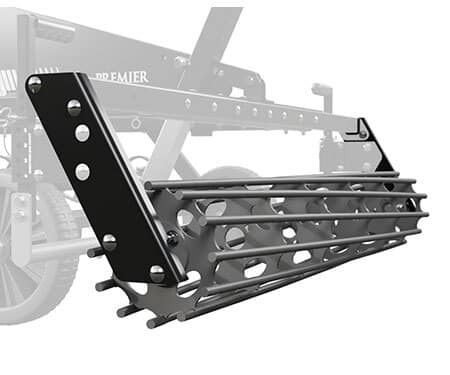

Twisted Rod Roller
A Signature Finish, Every Time
The twisted rod design of the SportPro roller maximizes packing and minimizes trailing so you can count on an elegant finish over your arena surface. One of the key benefits of the twisted rods is constant contact with the surface, which minimizes bouncing while grooming.

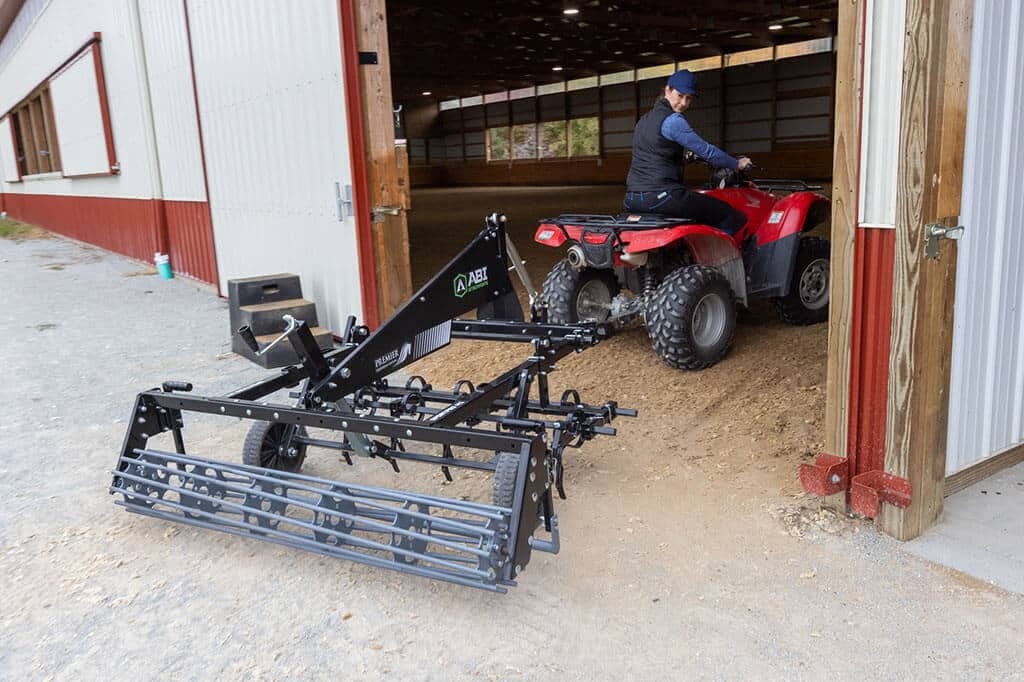

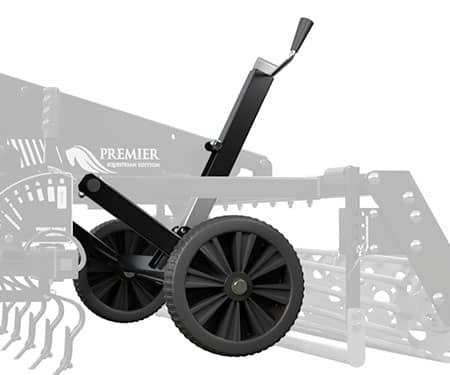

Wheel Transport System
Connect-and-Go
The wheel transport system makes it easy to connect your UTV or ATV and move your M1 in and out of your arena, hassle-free.
Options

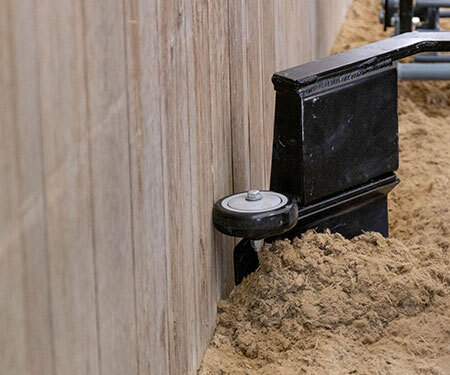

Rail Blade
For the Hard-to-Reach Spots
To get those tough-to-reach edges, add the optional rail blade. The rail blade lets you maneuver with ease around the trickiest spots in your arena.

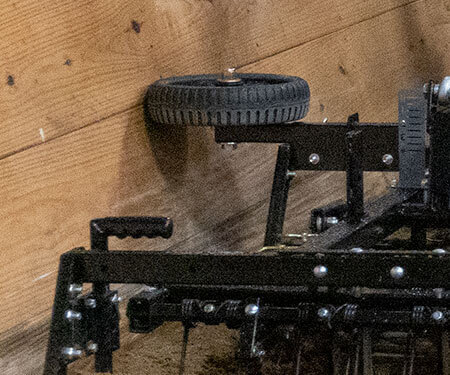

Rail Wheel
No Kick Wall Scratches Here
For extra kick wall protection when leveling the edges of your arena, get the optional rail wheel add on.
Ball Coupler
Tow the Way You Like It
If a ball hitch is your preferred method of towing, the ball coupler option gives you the convenience you're looking for with your M1.
Request A Quote
Request a quote and an ABI Product Specialist will help you find the right attachment for your equipment.
No obligation. We never sell your data.
Prefer to call? 877-788-7253 (Mon-Fri, 9-5 ET)
Specifications
| SportPro | M1 |
|---|---|
Tow Vehicle Requirements | |
| Vehicle Type | Utility Cart, ATV / UTV / Small Tractor |
| Min. Horsepower | 14 h.p. |
| Max. Horsepower | 32 h.p. |
| Min. CC | 400 cc |
| Max. CC | 800 cc |
| 4-Wheel Drive Required | - |
| Outside Tire Max Width | 53" |
| Hydraulic Ports Needed | - |
| Front Weight Needed | - |
Connection | |
| Pin Hitch Towable | |
| 2" Ball Coupler Towable | Optional |
| Ltd CAT 1 3-Point | - |
| CAT 1 3-Point | - |
| CAT 2 3-Point | - |
| Swivel 3-Point Hitch | - |
| Quick Hitch Compatible | - |
| Min. 3-Point Lift | - |
Rollers | |
| # of Rollers | 1 |
| Front Roller | - |
| Rear Roller | |
| Roller Type | Twisted Bar |
| Roller Diameter | 9.5" |
| Working Width | 63.25" |
S-Tines (For Material Mixing or Low Moisture Footing) | |
| Choose Primary Engagement | S-Tine Only |
| # of S-Tines | 11 |
| # of Rows | 2 |
| Adjustable Depth Range | 0 - 4" |
| Adjustable Pitch Control | |
| Replaceable Points | |
| Max Depth Gauge | - |
| Working Width | 51" |
Smoothing Bar | |
| Adjustable Smoothing Bar | |
| Working Width | 66.25" |
Wheel Transport System | |
| Manual Jack | |
| Electric Actuator | - |
Options Available | |
| Rigid Scarifiers | - |
| S-Tines | Included |
| Wall / Rail Blade | Optional |
| Wall Protection Wheel | Optional |
| Electric Actuator | - |
| 2" Ball Coupler | Optional |
Weights & Dims | |
| Unit Weight | 447 lbs. |
| Shipping Weight | 527 lbs. |
| Unit Dimensions | 103"L x 67.5"W x 39"H |
| Shipping Dimensions | 72"L x 72"W x 44"H |
Warranty | |
| Farm & Ranch Use | 12 Months |
| Commercial Use | 12 Months |
Attributes | |
| Connection | Pin Hitch / Drawbar, Ball Hitch |
| Tow Vehicle | ATV / UTV, ATV, UTV, Utility Tractor |
| Size | 67.5 In Width |
| Other Attributes | NO Hydraulics Needed, NO PTO Needed |
| Market | Equestrians |
| Power Range | 18 – 23 h.p. Tractor, 23 – 38 h.p. Tractor, 200 – 400 cc ATV/UTV, 400 – 600 cc ATV/UTV, 20 – 28 h.p. Lawn Tractor |
