Best Tow Behind Arena Drag for Sand Footing
The SportPro M3 – Premier Equestrian Edition pull behind groomer was designed with equestrians and their horses at the forefront, and we have a range of possible configurations for you to choose from, so you can to get the results you require—no matter what kind of synthetic additives you’re working with.
The M3 comes fitted with a single-point pin or optional ball coupler connection and wheel transport system for easy connect-and-go convenience.
67.5″ and 83.5″ Widths.

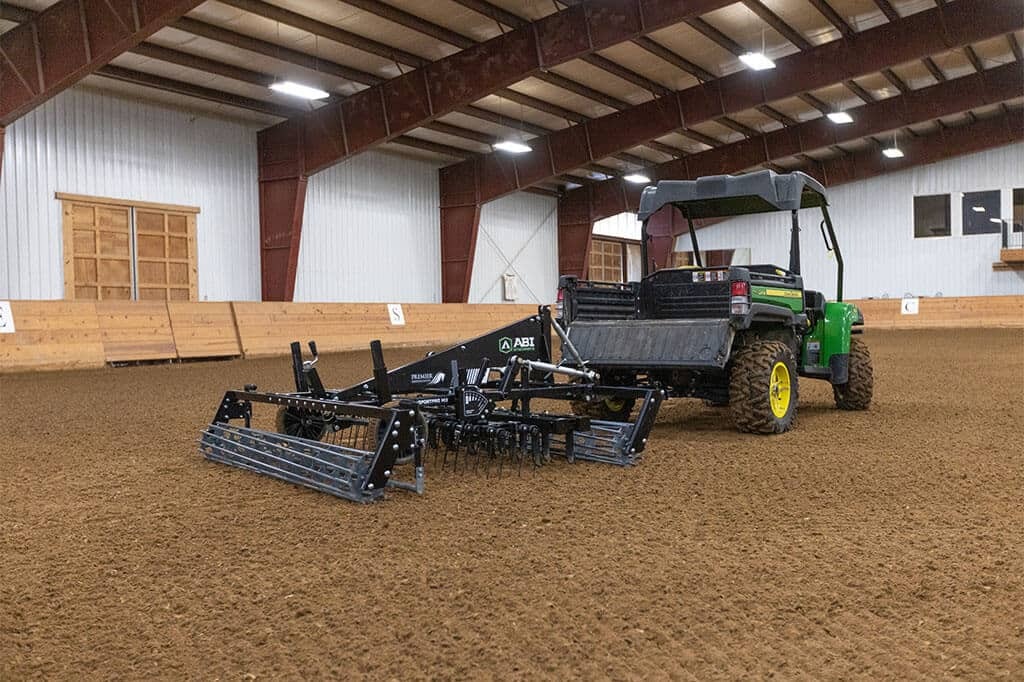

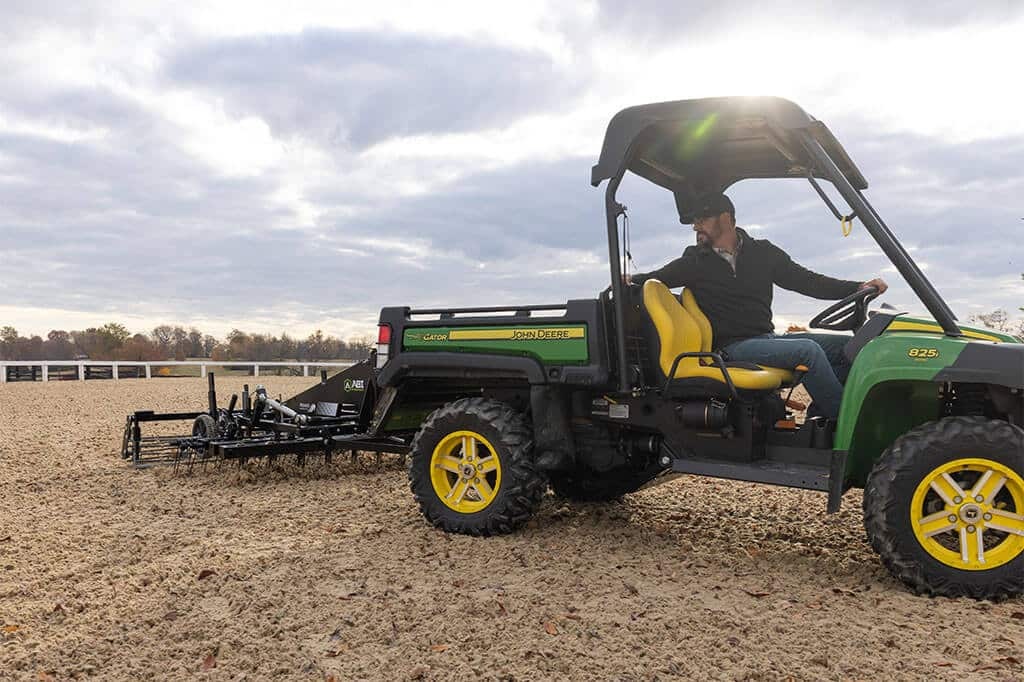

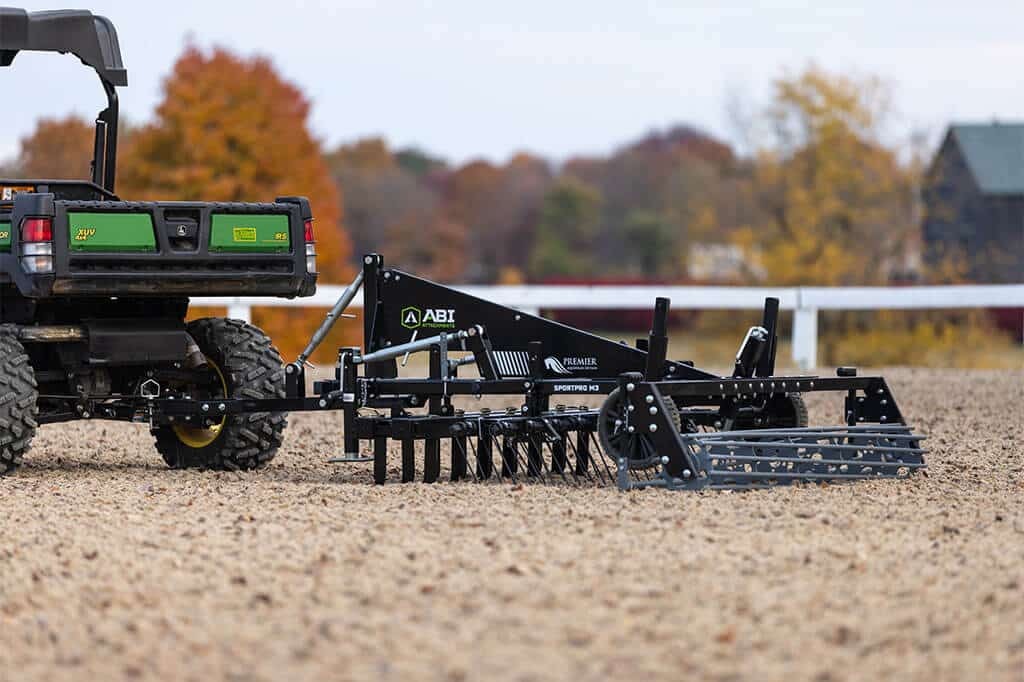

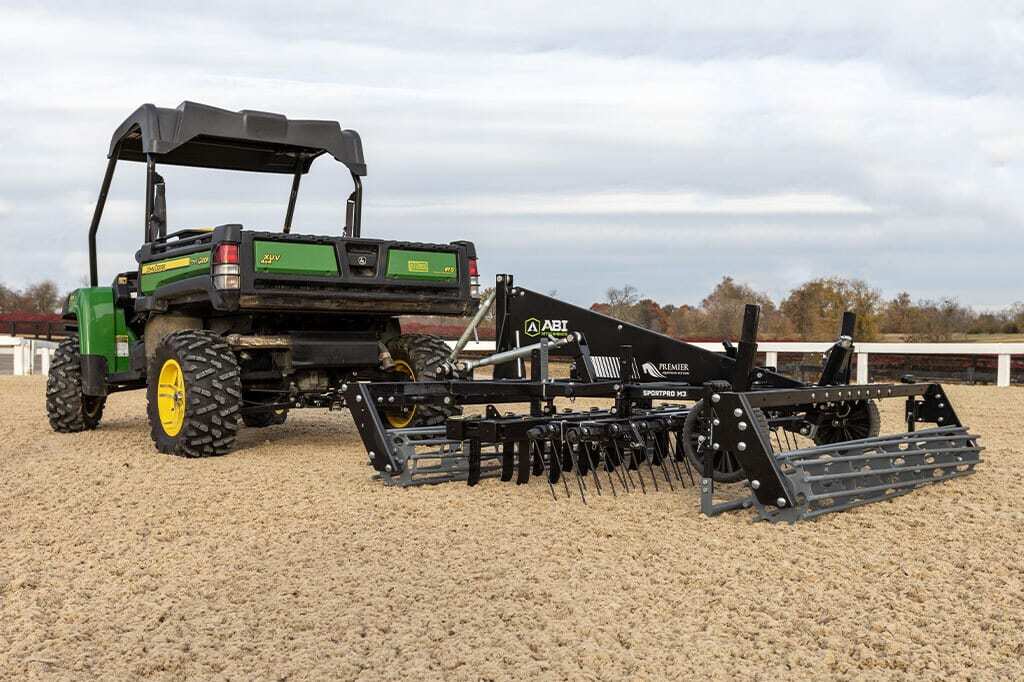

Image Gallery
Impressions with Dan James
One of the things that impressed me most about the ABI SportPro was that when the drag went to the ground, that it went to moving and swiveling behind the tractor. Once it was lifted up, it then locked in position which made it easy to move in and out of arena gates and also through the barn.
Dan James
Champion Reiner
First Look: Adrienne Lyle
What's so great about this tool is that each element is adjustable, so the groomer is set how I want it for best footing consistency for my horses and my discipline.
Adrienne Lyle
Two-time Olympic US Dressage Rider
Features
Choose Between Available Primary Components

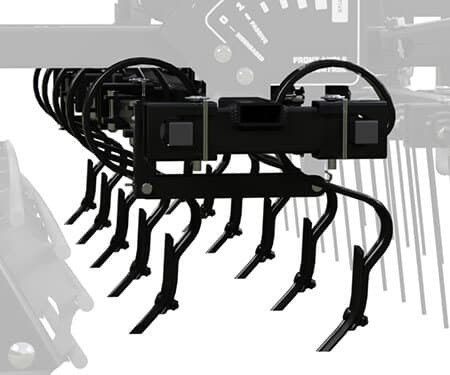

S-Tines: A Safer Way to Go Deeper
If you have a limited amount of water in your arena or your additives require frequent mixing, the S-tines will provide holistic blending for your everyday grooming. The Sport Pro M3’s danish-styled S-tines act intuitively in synthetic footing, their springy give loosens and mixes material without causing damage to the base. S-Tines offer a safer way to go deeper, pulling up small fines and fibers that have settled to the bottom. S-tines are also suited for self-amending or self-installing additional materials, or fibers.

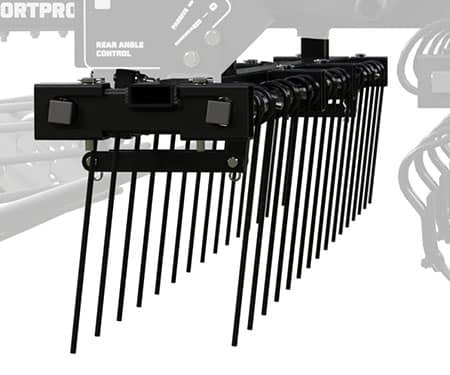

Coil Tines
More Contact Points for Better Blending
The SportPro M3 has two offset rows of coil tines, and each tine has two contact points instead of one. In their passive position, this setup maximizes the coil tines ability to fill in grooves and press down large fibers that have risen to the top. In the active position, the coil tines aerate, mix, and level the arena surface.

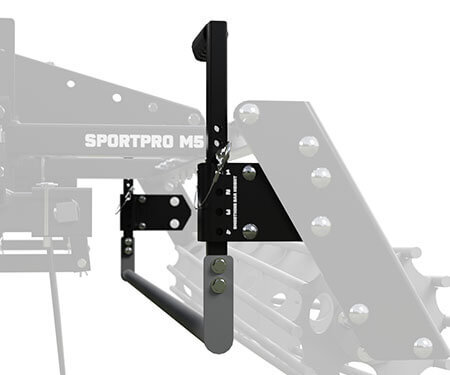

Smoothing Bar
Level Your Footing Without Plugging Up
The smoothing bar is adjustable in quarter inch increments for maximum precision adjustment. The smoothing bar allows for some build up to accumulate so it can level out any excess material while filling remaining lines or grooves. The cylinder shape of the smoothing bar allows material to flow under as well as over— creating a smoothing effect under the bar, and preventing excess material from plugging up.
Choose Between Single Roller or Dual Rollers

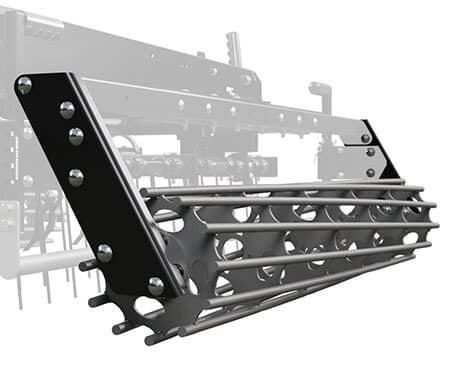

Twisted Rod Roller: A Signature Finish, Every Time
The twisted rod design of the SportPro roller maximizes packing and prevents trailing so you can count on an elegant finish over your arena surface. One of the key benefits of the twisted rods is constant contact with the surface, which minimizes bouncing while grooming.

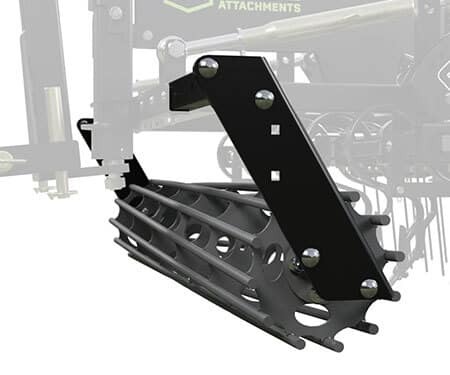

Optional Front Roller: Additional Blending Capabilities and Base Protection
If you’re looking for an additional level of gauge security and consistency, you can choose to add the optional front roller. With a second roller, you’ve established a ground plane between the front and rear rollers so you can drop and groom without worrying about catching on your base.

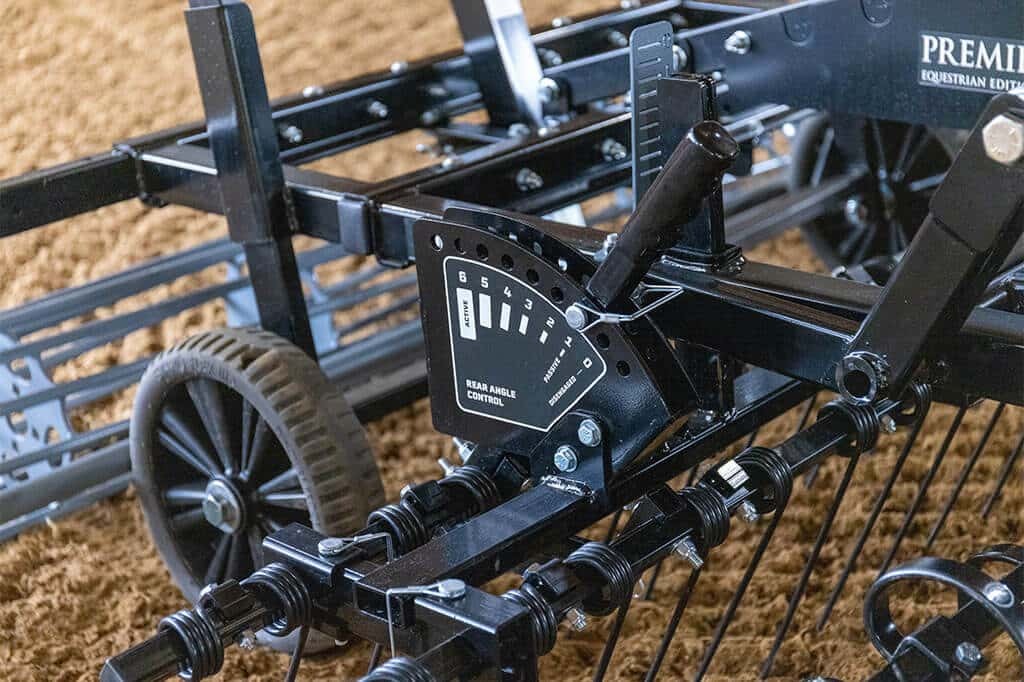

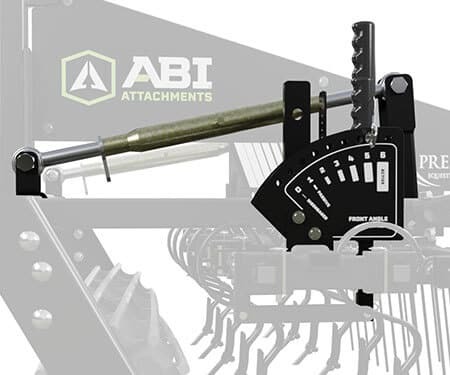

Fully Adjustable Components
Your Arena, Your Way
Each ground-engaging component on a SportPro M3 groomer is independently adjustable so you can configure your implement to perfectly groom your specific arena and achieve your footing performance expectations, this includes daily maintenance as well as periodic remixing. With its easy adjustment capabilities, you can change the surface tension in your arena for different disciplines and for conditioning. Once you have the groomer configured for everyday use for your arena, lock the tool in place, so you can count on consistent, repeatable results, no matter who's in the driver's seat. Then, adjust the components as needed into an active grooming position when you need to re-mix the additives in your footing or change the surface tension for conditioning.
Wheel Transport System
Connect-and-Go
The wheel transport system makes it easy to connect your UTV or ATV and move your M3 in and out of your arena, hassle-free.
Options
Rail Blade
For the Hard-to-Reach Spots
To get those tough-to-reach edges, add the optional rail blade. The rail blade lets you maneuver with ease around the trickiest spots in your arena.
Wall Wheel
No Kick Wall Scratches Here
For extra kick wall protection when leveling the edges of your arena, get the optional rail wheel add on.

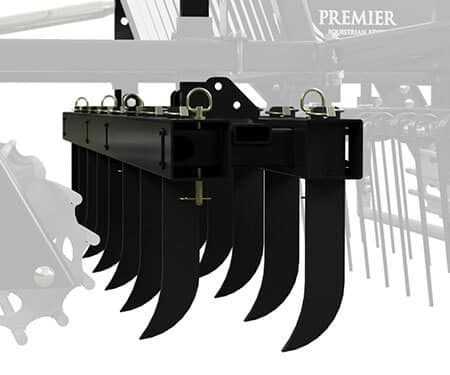

Scarifiers
Eliminate Unwanted Compaction
Compacted arenas with high clay will benefit from the scarifiers as the primary component. In contrast to the S-tines, scarifiers are rigid by design, giving them an enhanced ability to loosen hard, compacted materials. For arenas that would benefit from the capabilities of both, the SportPro groomer allows the operator a toolless swap out of the S-tines and scarifiers.
Ball Coupler
Tow the Way You Like It
If a ball hitch is your preferred method of towing, the ball coupler option gives you the convenience you’re looking for with your M3.
Electric Actuator
This Option Will Be Available Soon
Request A Quote
Request a quote and an ABI Product Specialist will help you find the right attachment for your equipment.
No obligation. We never sell your data.
Prefer to call? 877-788-7253 (Mon-Fri, 9-5 ET)
Specifications
| SportPro | M3 | M3 Duo | M3x | M3x Duo |
|---|---|---|---|---|
Tow Vehicle Requirements | ||||
| Vehicle Type | Large ATV, Small UTV, or Sub-Compact Tractor | Large ATV, Small UTV, or Sub-Compact Tractor | Mid - Large UTV or Compact Tractor | Mid - Large UTV or Compact Tractor |
| Min. Horsepower | 18 h.p. | 18 h.p. | 24 h.p. | 24 h.p. |
| Max. Horsepower | 32 h.p. | 32 h.p. | 66 h.p. | 66 h.p. |
| Min. CC | 500 cc | 500 cc | 600 cc | 600 cc |
| Max. CC | 1,000 cc | 1,000 cc | 1,500 cc | 1,500 cc |
| 4-Wheel Drive Required | ||||
| Outside Tire Max Width | 53" | 53" | 69" | 69" |
| Hydraulic Ports Needed | - | - | - | - |
| Front Weight Needed | - | - | - | - |
Connection | ||||
| Pin Hitch Towable | ||||
| 2" Ball Coupler Towable | Optional | Optional | Optional | Optional |
| Ltd CAT 1 3-Point | - | - | - | - |
| CAT 1 3-Point | - | - | - | - |
| CAT 2 3-Point | - | - | - | - |
| Swivel 3-Point Hitch | - | - | - | - |
| Quick Hitch Compatible | - | - | - | - |
| Min. 3-Point Lift | - | - | - | - |
Rollers | ||||
| # of Rollers | 1 | 2 | 1 | 2 |
| Front Roller | - | - | ||
| Rear Roller | ||||
| Roller Type | Twisted Bar | Twisted Bar | Twisted Bar | Twisted Bar |
| Roller Diameter | 9.5" | 9.5" | 9.5" | 9.5" |
| Working Width | 63.25" | 63.25" | 79" | 79" |
S-Tines (For Material Mixing or Low Moisture Footing) | ||||
| Choose Primary Engement | Standard | Standard | Standard | Standard |
| # of S-Tines | 11 | 11 | 15 | 15 |
| # of Rows | 2 | 2 | 2 | 2 |
| Adjustable Depth Range | 0 - 4" | 0 - 4" | 0 - 4" | 0 - 4" |
| Adjustable Pitch Control | ||||
| Replaceable Points | ||||
| Max Depth Gauge | ||||
| Working Width | 51" | 51" | 70" | 70" |
Scarifiers (For Dense Fiber, Clay, or High Moisture Footing) | ||||
| Choose Primary Engement | Optional | Optional | Optional | Optional |
| # of Scarifiers | 13 | 13 | 17 | 17 |
| # of Rows | 2 | 2 | 2 | 2 |
| Adjustable Depth Range | 0 - 4" | 0 - 4" | 0 - 4" | 0 - 4" |
| Adjustable Pitch Control | - | - | - | - |
| Max Depth Gauge | ||||
| Working Width | 51.5" | 51.5" | 72" | 72" |
Coil Tines | ||||
| # of Coil-Tines | 16 | 16 | 20 | 20 |
| # of Points | 32 | 32 | 40 | 40 |
| # of Rows | 2 | 2 | 2 | 2 |
| Adjustable Depth Range | 0 - 4" | 0 - 4" | 0 - 4" | 0 - 4" |
| Adjustable Pitch Control | ||||
| Replaceable | ||||
| Max Depth Gauge | ||||
| Working Width | 62.5" | 62.5" | 78" | 78" |
Smoothing Bar | ||||
| Adjustable Smoothing Bar | ||||
| Working Width | 66.25" | 66.25" | 82.25" | 82.25" |
Wheel Transport System | ||||
| Manual Jack | ||||
| Electric Actuator | Available | Available | Available | Available |
Options Available | ||||
| Rigid Scarifiers | Optional | Optional | Optional | Optional |
| S-Tines | Included | Included | Included | Included |
| Wall / Rail Blade | Optional | Optional | Optional | Optional |
| Wall Protection Wheel | Optional | Optional | Optional | Optional |
| Electric Actuator | Available | Available | Available | Available |
| 2" Ball Coupler | Optional | Optional | Optional | Optional |
Weights & Dims | ||||
| Unit Weight | 600 lbs. | 717 lbs. | 658 lbs | 779 lbs. |
| Shipping Weight | 680 lbs. | 800 lbs. | 758 lbs. | 879 lbs. |
| Unit Dimensions | 115"L x 67.5"W x 42.25"H | 115"L x 67.5"W x 42.25"H | 115"L x 83.5"W x 42.25"H | 115"L x 83.5"W x 42.25"H |
| Shipping Dimensions | 72"L x 72"W x 44"H | 72"L x 72"W x 44"H | 87"L x 87"W x 44"H | 87"L x 87"W x 44"H |
Warranty | ||||
| Farm & Ranch Use | 12 Months | 12 Months | 12 Months | 12 Months |
| Commercial Use | 12 Months | 12 Months | 12 Months | 12 Months |
Attributes | ||||
| Connection | Pin Hitch / Drawbar, Ball Hitch | Pin Hitch / Drawbar, Ball Hitch | Pin Hitch / Drawbar, Ball Hitch | Pin Hitch / Drawbar, Ball Hitch |
| Tow Vehicle | ATV / UTV, ATV, UTV, Sub-Compact Tractor, Compact Tractor | ATV / UTV, ATV, UTV, Sub-Compact Tractor, Compact Tractor | ATV / UTV, ATV, UTV, Sub-Compact Tractor, Compact Tractor | ATV / UTV, ATV, UTV, Sub-Compact Tractor, Compact Tractor |
| Size | 67.5 In Width, 83.5 In Width | 67.5 In Width, 83.5 In Width | 67.5 In Width, 83.5 In Width | 67.5 In Width, 83.5 In Width |
| Other Attributes | NO Hydraulics Needed, NO PTO Needed | NO Hydraulics Needed, NO PTO Needed | NO Hydraulics Needed, NO PTO Needed | NO Hydraulics Needed, NO PTO Needed |
| Market | Equestrians | Equestrians | Equestrians | Equestrians |
| Power Range | 400 – 600 cc ATV/UTV, 600 – 1,000+ cc ATV/UTV | 400 – 600 cc ATV/UTV, 600 – 1,000+ cc ATV/UTV | 400 – 600 cc ATV/UTV, 600 – 1,000+ cc ATV/UTV | 400 – 600 cc ATV/UTV, 600 – 1,000+ cc ATV/UTV |
