Henderson Turf Significantly Improves Bottom Line
Trent Gillam with Henderson Turf Farm talks with Scott Holmes with ABI Attachments about the benefits of the TR3 Command Series and the impact it has on seedbed germination.
Trent Gillam
General Manager - Henderson Turf Farm
Features

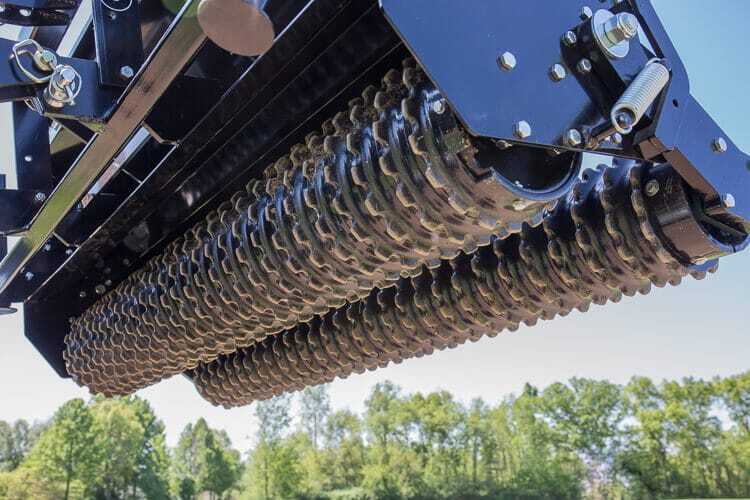

Dual Heavy-Duty Cultipackers
The large leading cultipacker pulverizes, firms, and dimples the ground to create a perfect seedbed while the floating rear cultipacker presses and packs newly-dropped seed in for optimal seed-to-soil contact!

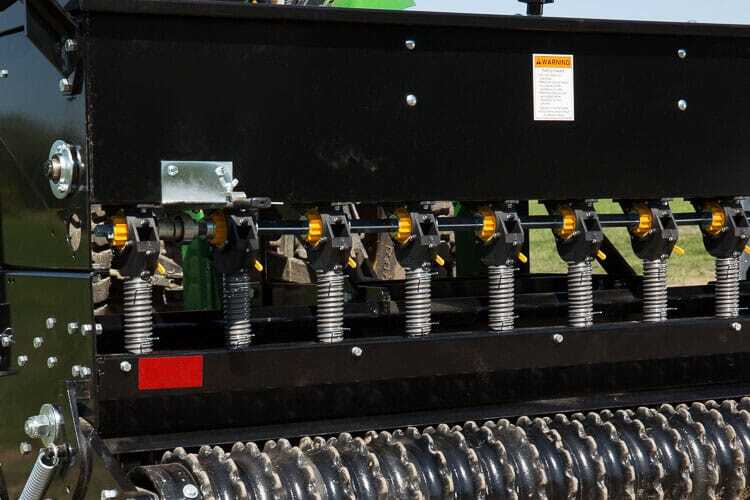

Metered Seed Output
Starting with the internal agitator, seed is consistently moved into seed cups with measured output, and then on through to a dispersal plate for a perfectly-even spread. Easy-to-adjust output and measurement allow the operator to control for acreage, seed type, and more variables!

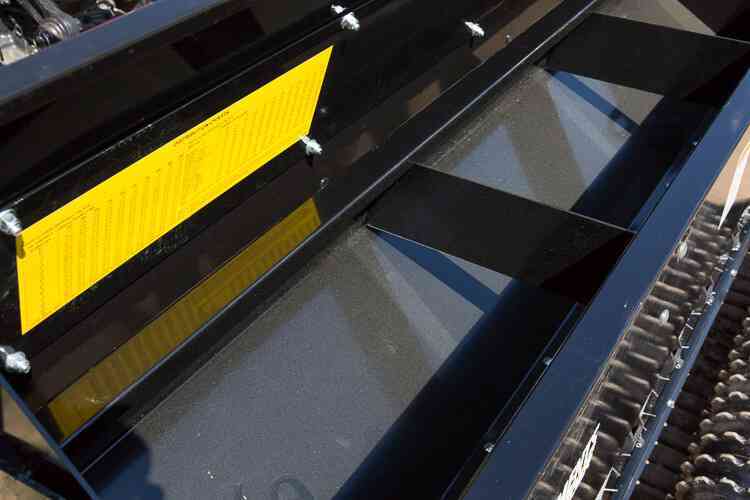

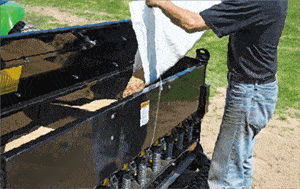

Large, Seven Cubic Foot Hopper
Large-capacity 3-section hopper with a locking, easy-lift lid and sight gauges allow for one-man refills and long operational time. Tapered lid keeps seed dry! Saves extra time on large jobs by reducing downtime for refills and checking levels.

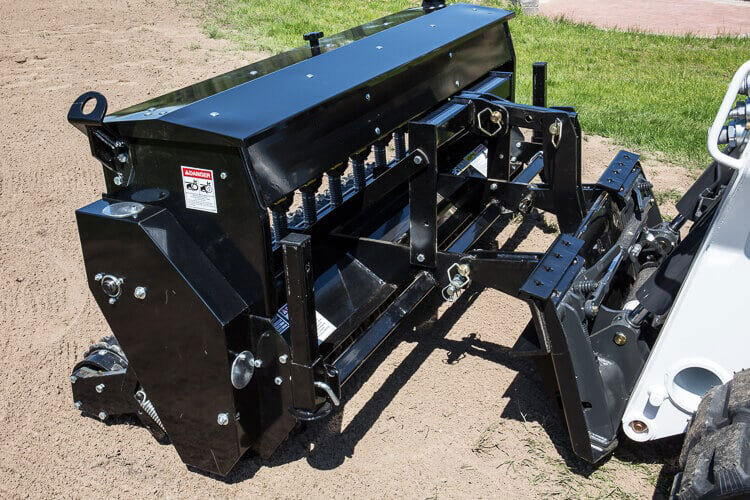

Quick Hitch Compatible
This product is designed for use with a tractor that has a rear 3-point lift connection and is built to ASAE category 1 standards. Additionally, it is quick hitch compatible which makes connecting the implement to the tractor faster, easier, and safer. ABI recommends the use of a quick hitch system not only for its speed and ease of use, but also for its increased operator safety during the connection and disconnection process. This product is quick hitch compatible, the quick hitch system itself (and required adapter bushings) can be purchased separately from your local tractor dealer.
Request A Quote
Request a quote and an ABI Product Specialist will help you find the right attachment for your equipment.
No obligation. We never sell your data.
Prefer to call? 877-788-7253 (Mon-Fri, 9-5 ET)
Specifications
| Command Seeder | |
|---|---|
| Part # | ASR74CSTRL |
| Overall Width | 80" |
| Seeding Width: | 74" |
| Required Horsepower: | 25-70 HP |
| Hopper Capacity: | 7 cu.ft. |
| Approximate Weight: | 1,387 lbs. |
Attributes | |
| Product Type | Seeding & Fertilizing |
| Connection | CAT I 3-Point |
| Power Range | 23 – 38 h.p. Tractor, 35 – 60 h.p. Tractor, 60 – 75 h.p. Tractor |
| Tow Vehicle | Tractor, Compact Tractor, Utility Tractor, Compact Track Loader |
| Other Attributes | NO Hydraulics Needed, NO PTO Needed, Ground Driven |
| Market | Landscape Contractors |
