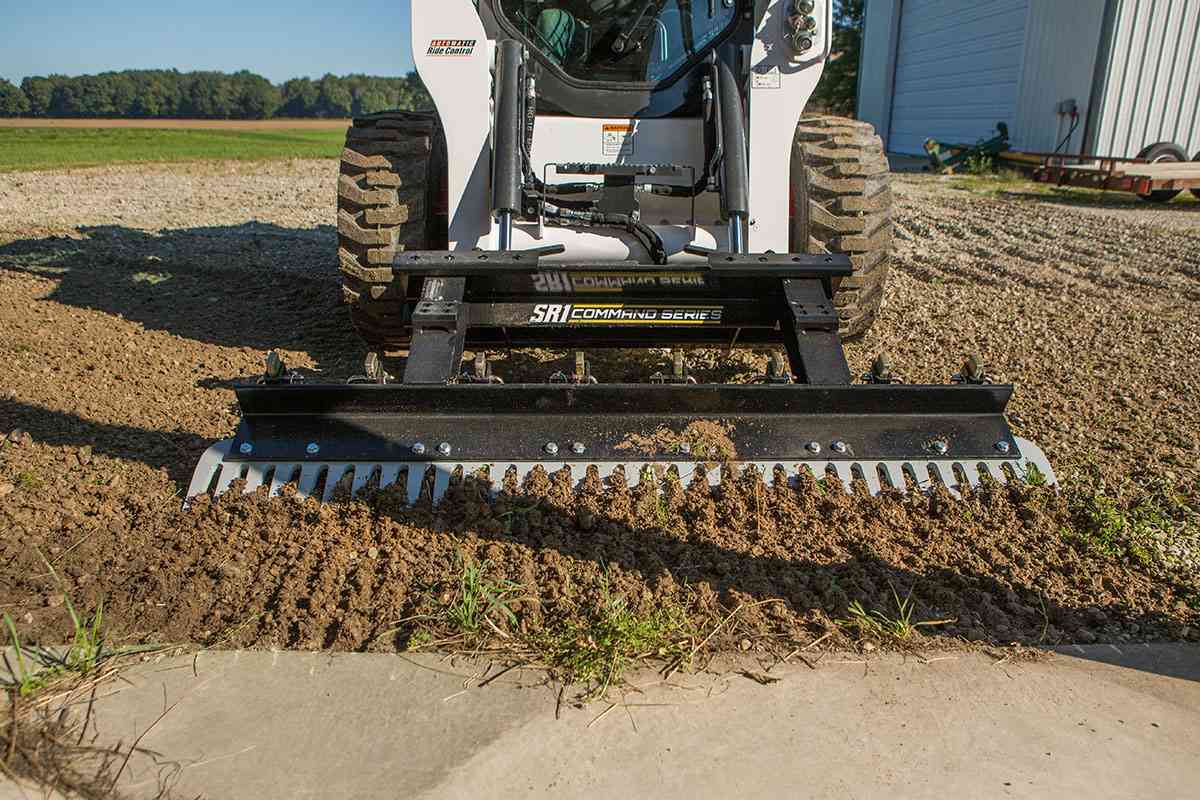

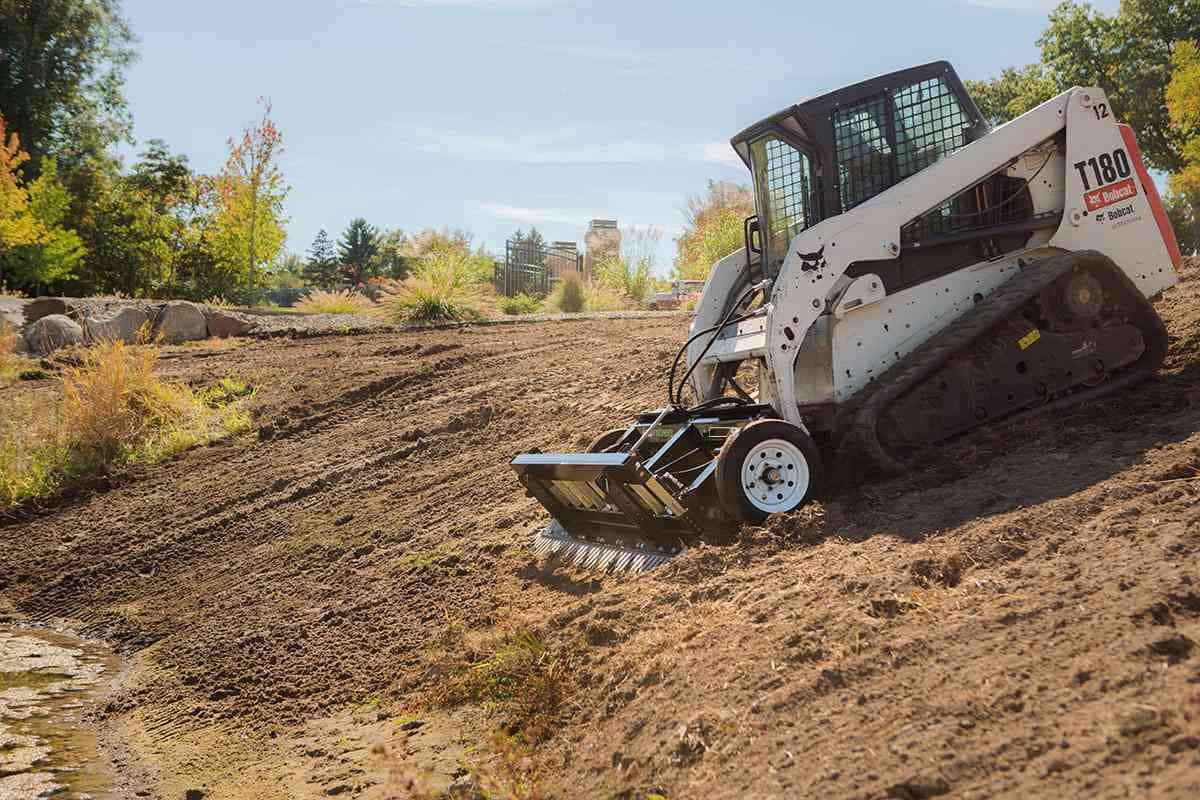

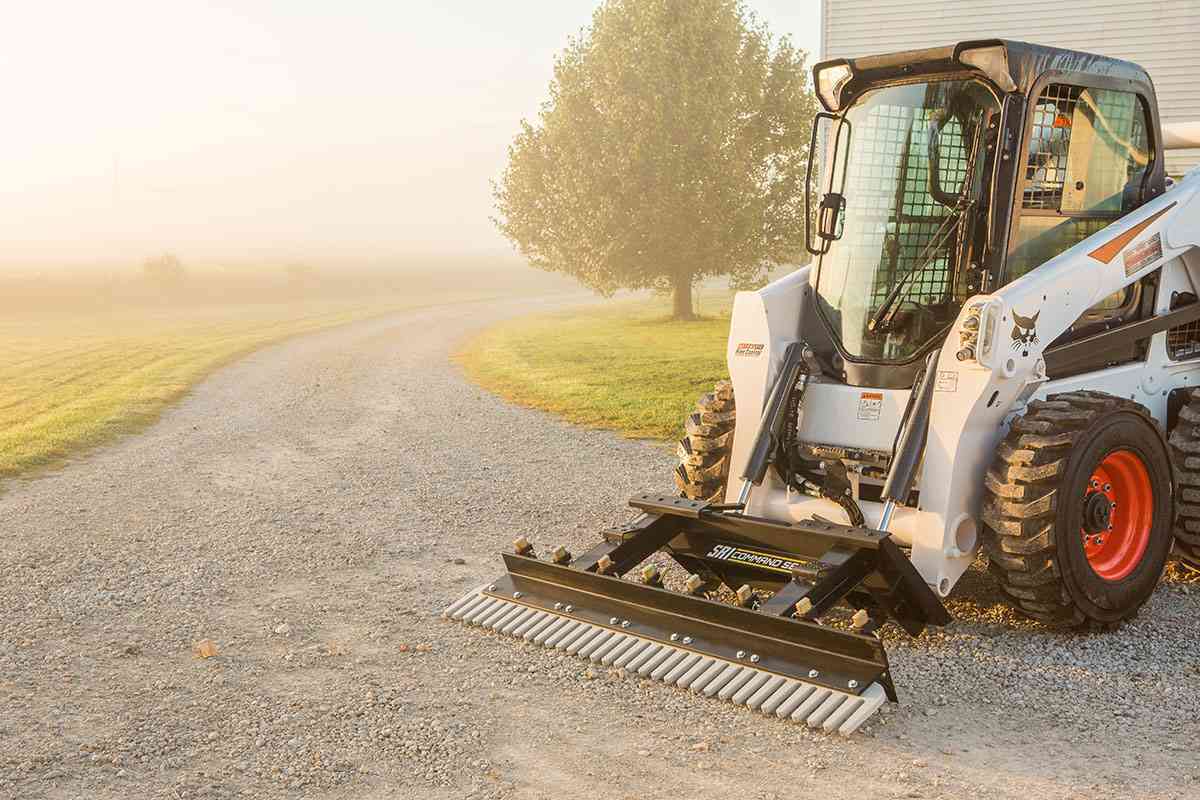

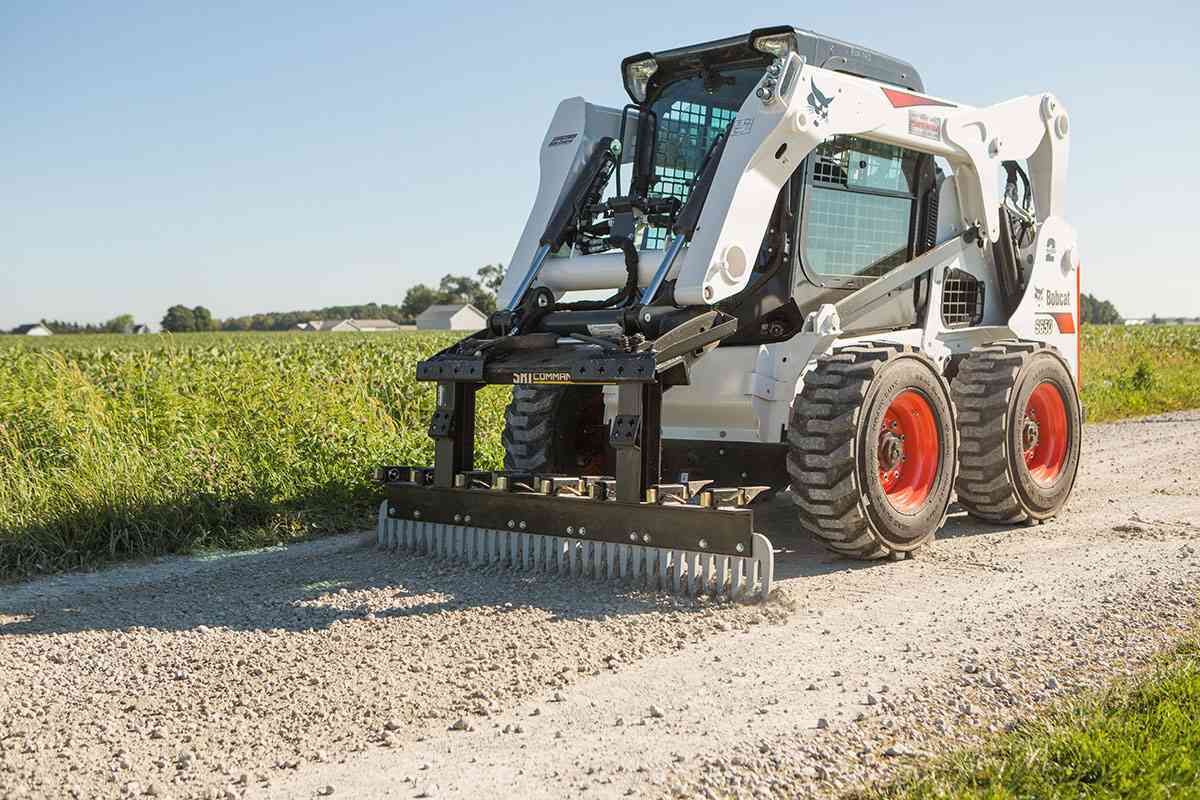

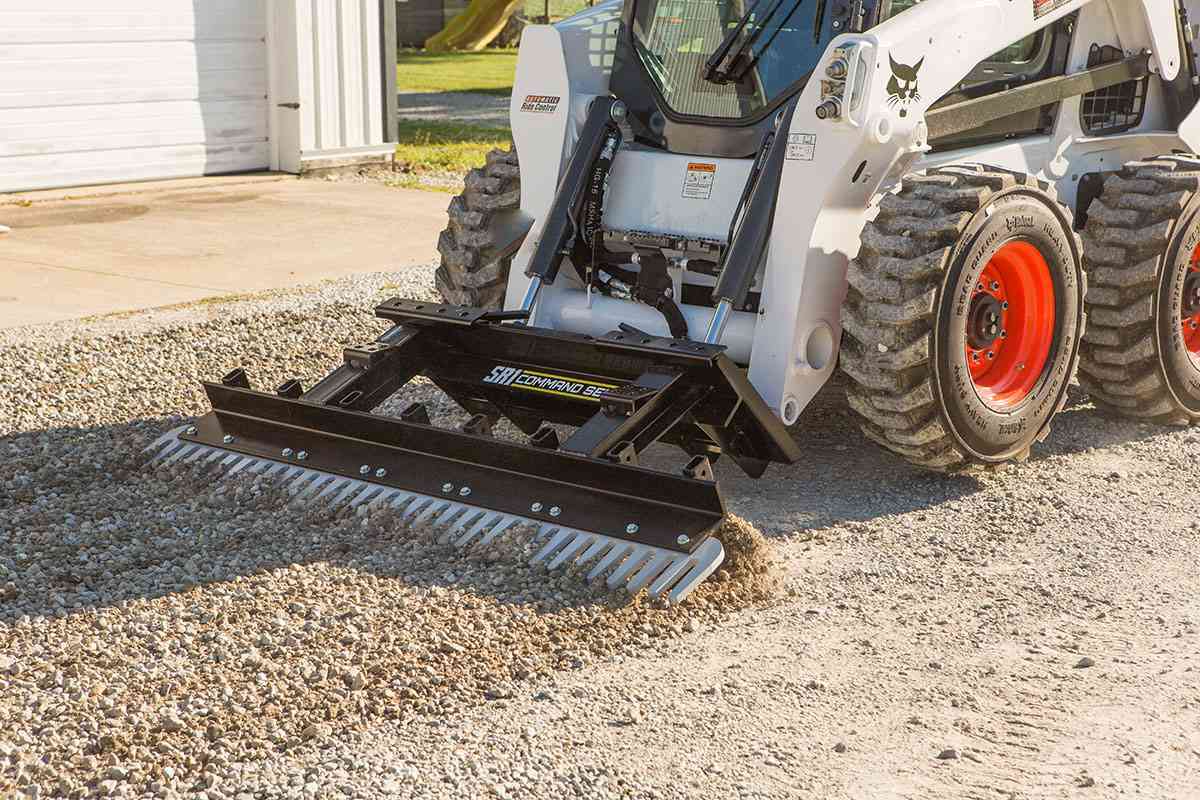

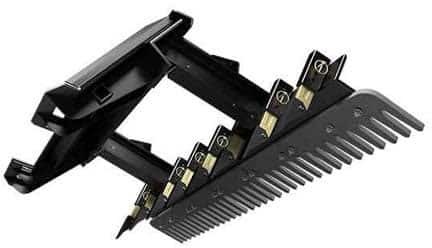

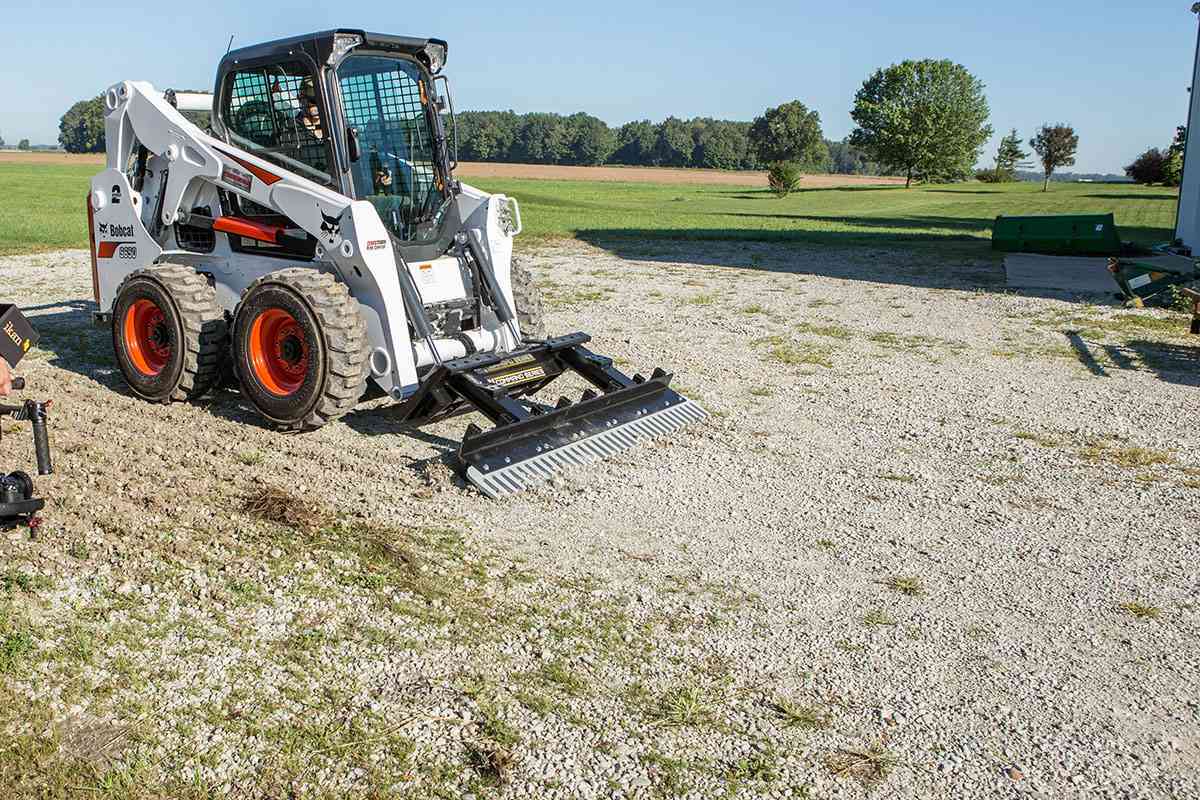

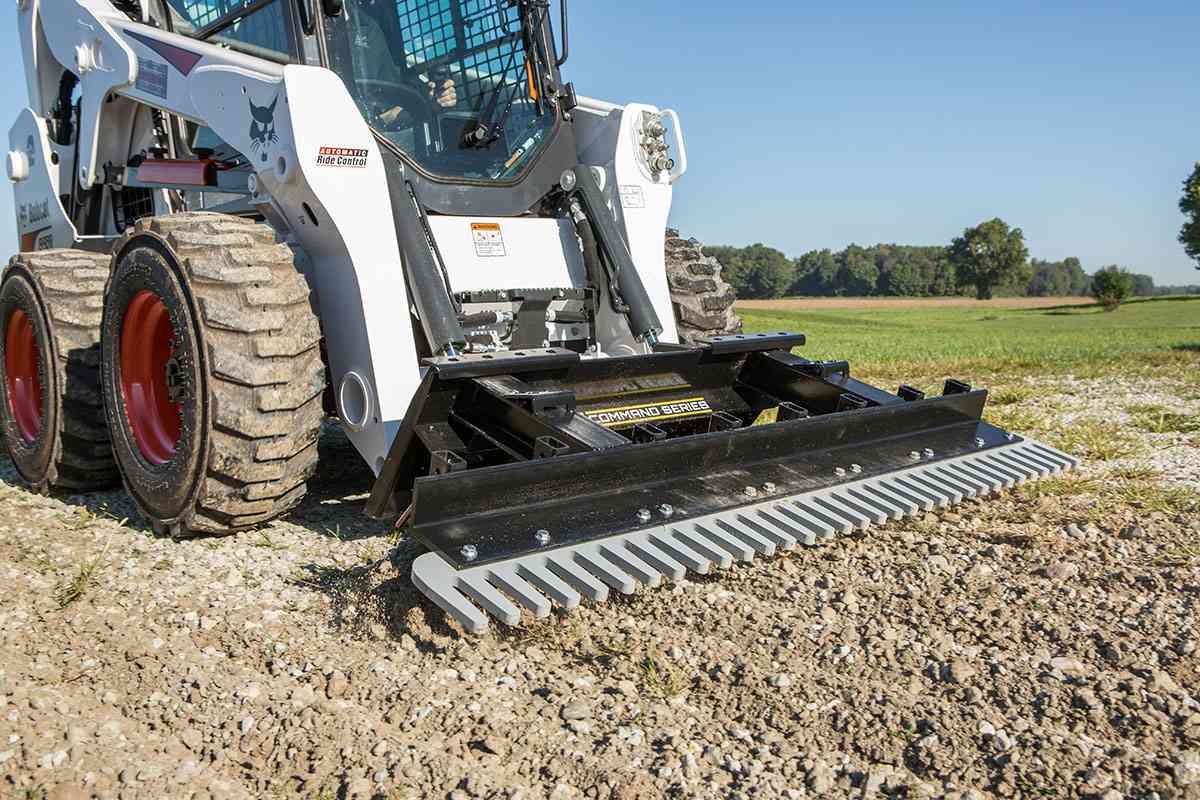

The SR1 combines the best features of a skid steer attached Landscape Rake, Pulverizer, & Scarifier all into one innovative design. This eliminates the need to switch out attachments and delivers vastly superior results, significantly faster than ever before.
Backbreaking manual work along landscape and concrete edges is now a thing of the past. The SR1 is designed to work small areas and along edges and eliminate the back-breaking hand work. Command Your Land with the SR1 from ABI Attachments!
Image Gallery
Henderson Turf Significantly Improves Bottom Line
Trent Gillam with Henderson Turf Farm talks with Scott Holmes with ABI Attachments about the benefits of the TR3 Command Series and the impact it has on seedbed germination.
Trent Gillam
General Manager - Henderson Turf Farm
Soil Decompaction

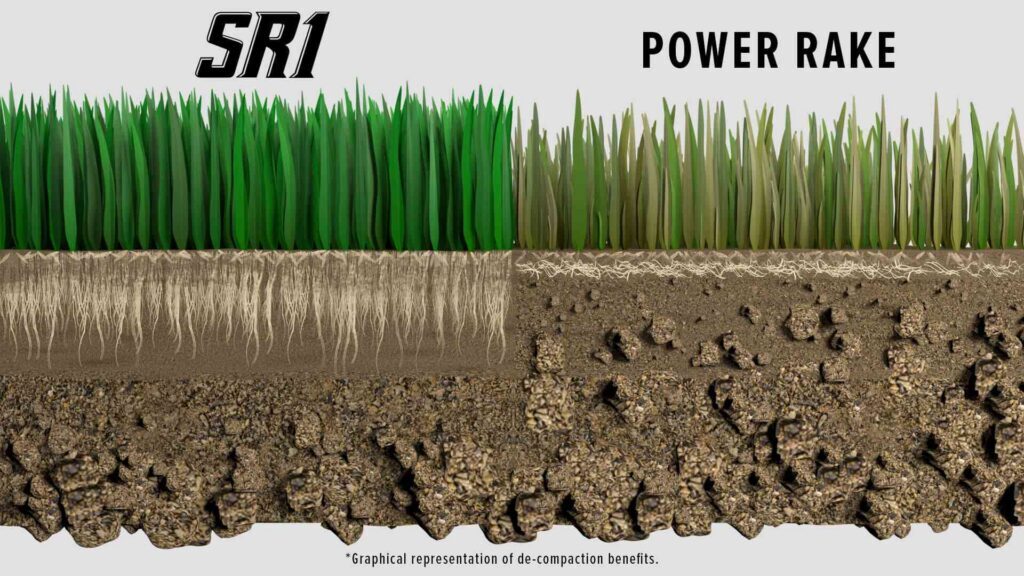

At ABI Attachments we know that there is nothing more important to preparing a proper seedbed than getting rid of the compaction of the soil. A de-compacted soil allows water and air to reach the roots of the seed, giving those roots the ability to anchor deep creating a stable and healthy turf.
SR1 Rake
- Patent Pending
- -
- Ground-Engaging Components
- 2
- H.P. Rating
- 30-75
- Limited Warranty
- 60-Month
Which Skid Steer Rake is right for you?
Scott Holmes and Kevin Keigley with ABI Attachments discuss the differences between each Skid Steer Rake and which one would be right for you.
Features
The SR1 combines the best features of a skid steer attached Landscape Rake, Pulverizer, & Scarifier all into one innovative design. This eliminates the need to switch out attachments and delivers vastly superior results, significantly faster than ever before. Backbreaking manual work along landscape and concrete edges is now a thing of the past.

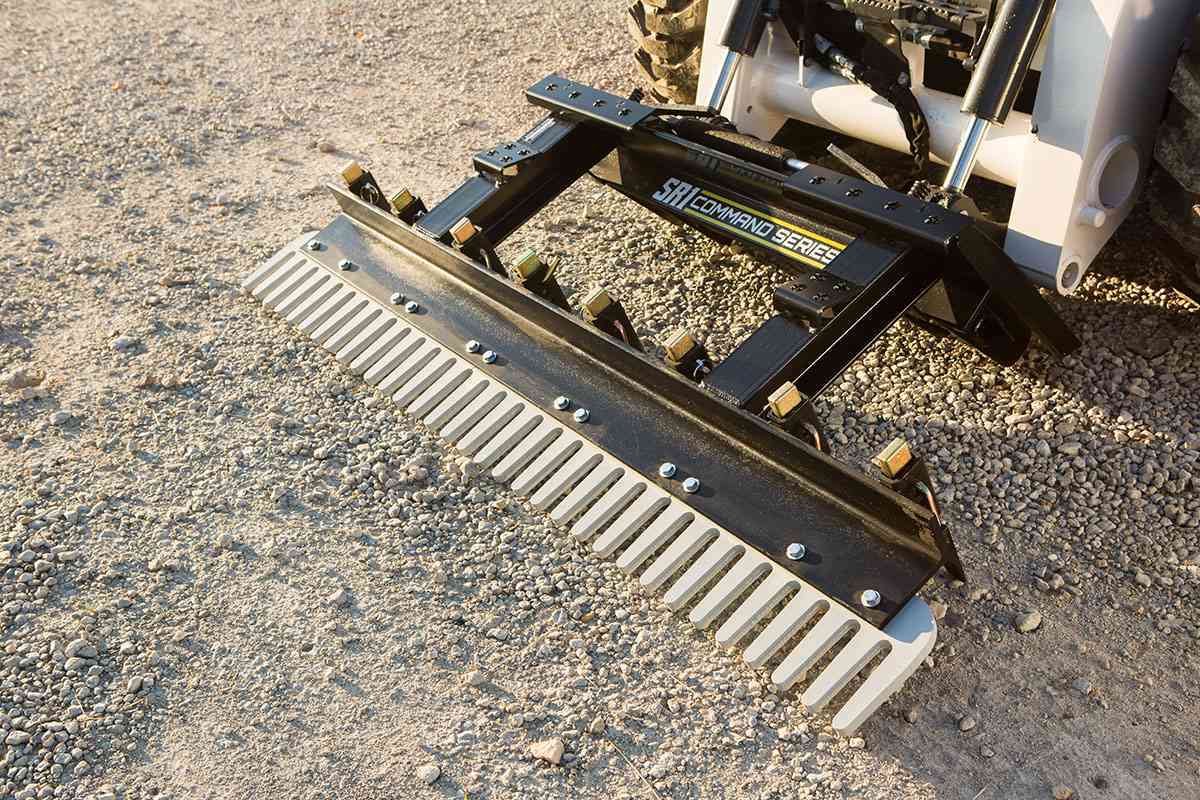

I-Beam Design
Fully welded for the utmost strength and longevity. Our Command Series tools are designed to work under tough conditions all day, every day.
2-In-One Design

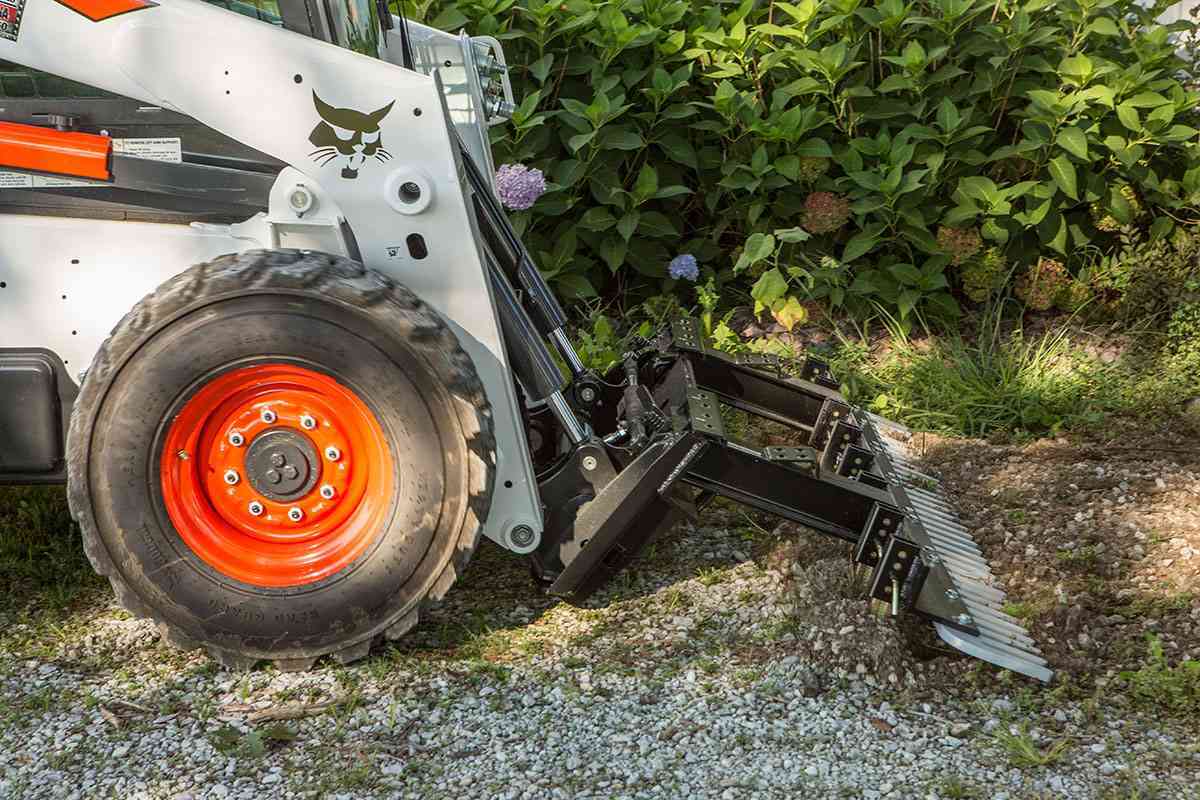

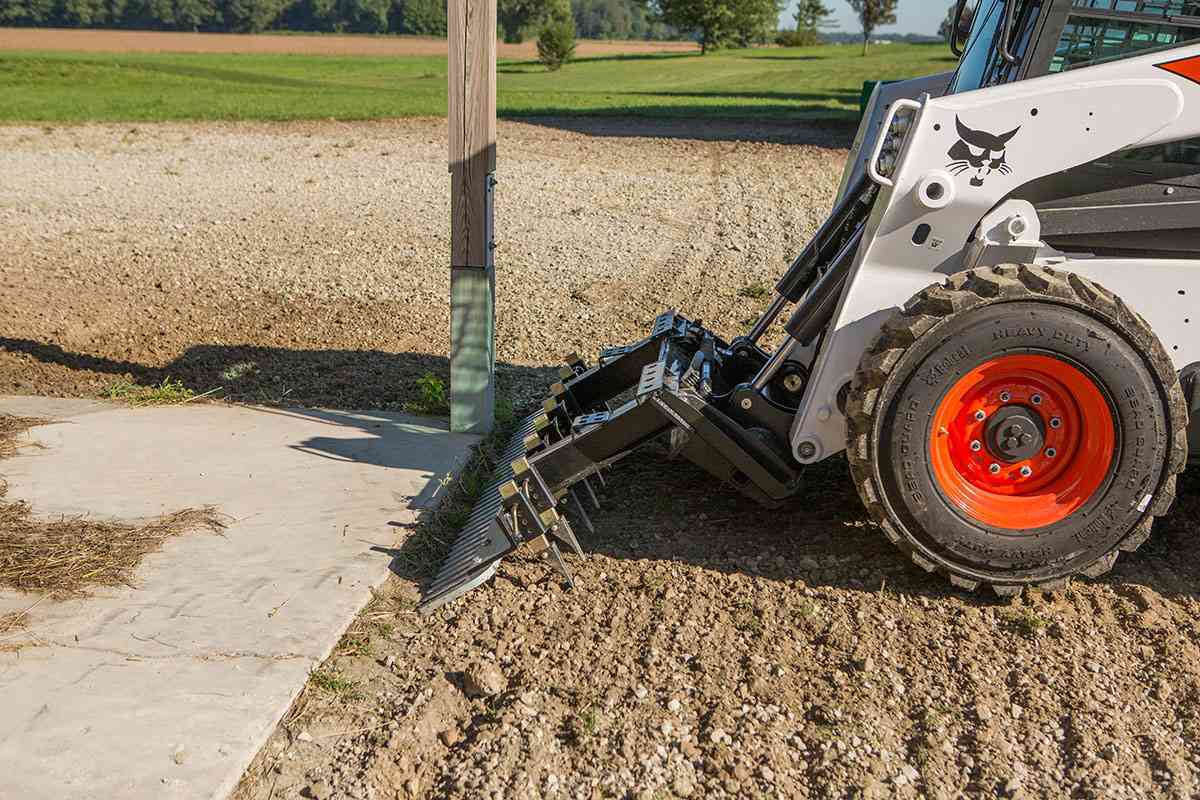

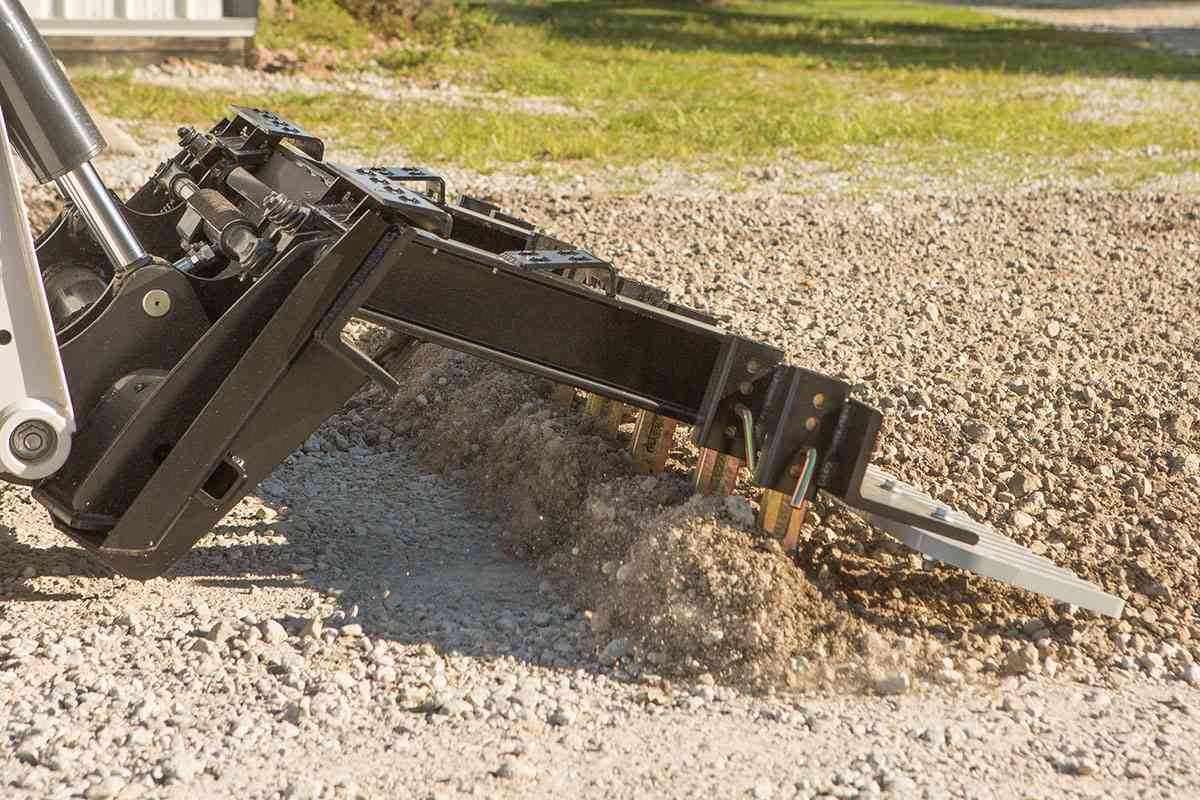

Designed to operate at an angle, the SR1 is an attachment with scarifiers and a rake that work together to create the ideal seedbed, especially along edges.

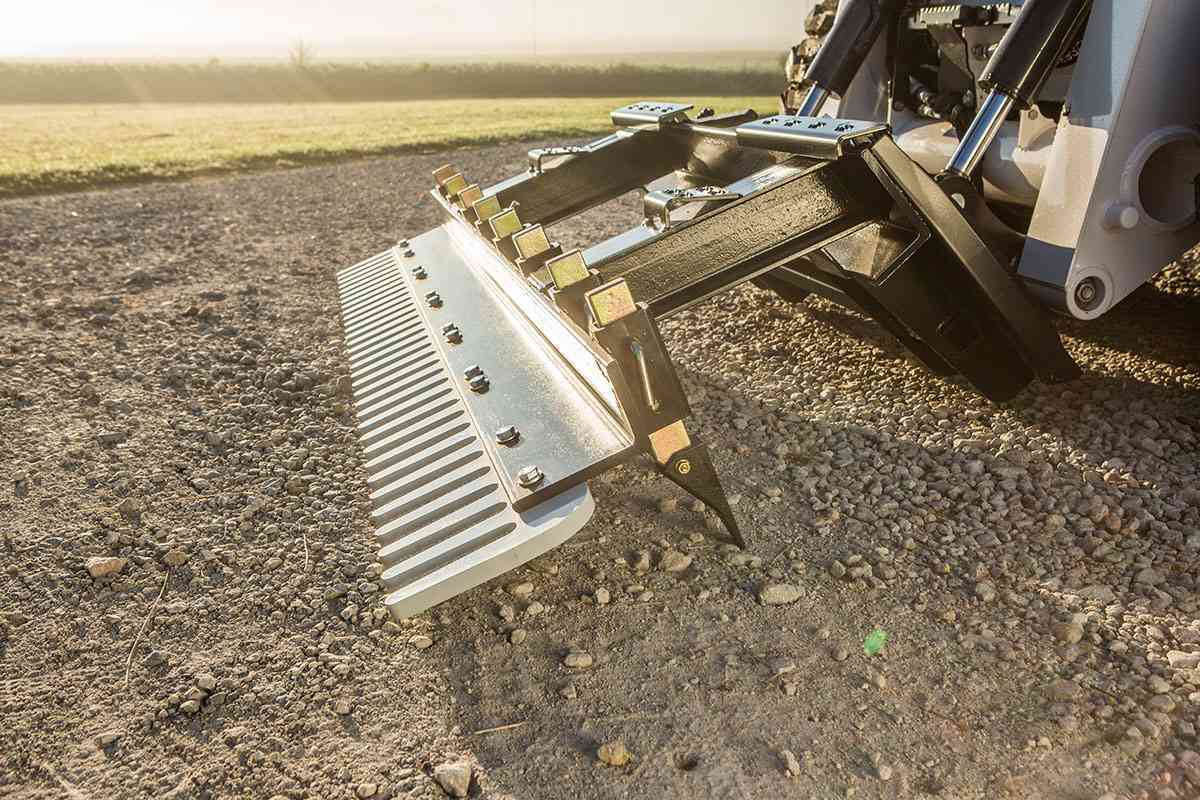

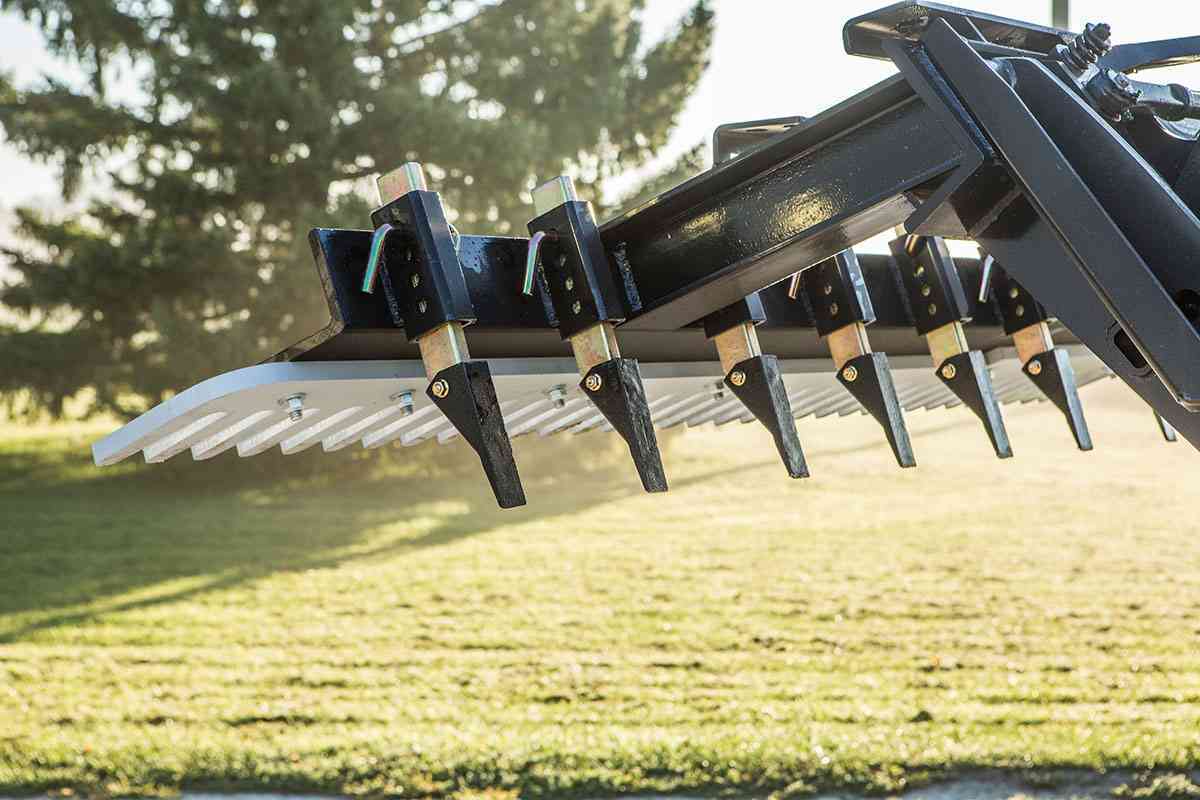

Adjustable Scarifiers
Loosens the ground from 0-5" deep with adjustable depth control. Durable cast teeth penetrate the hardest of conditions and bolt-on tips keep maintenance costs low.

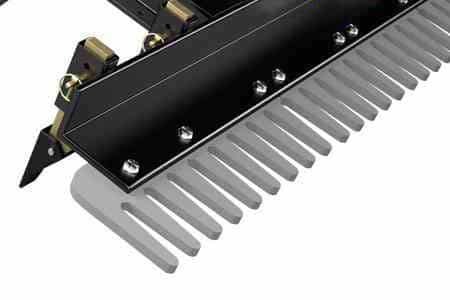

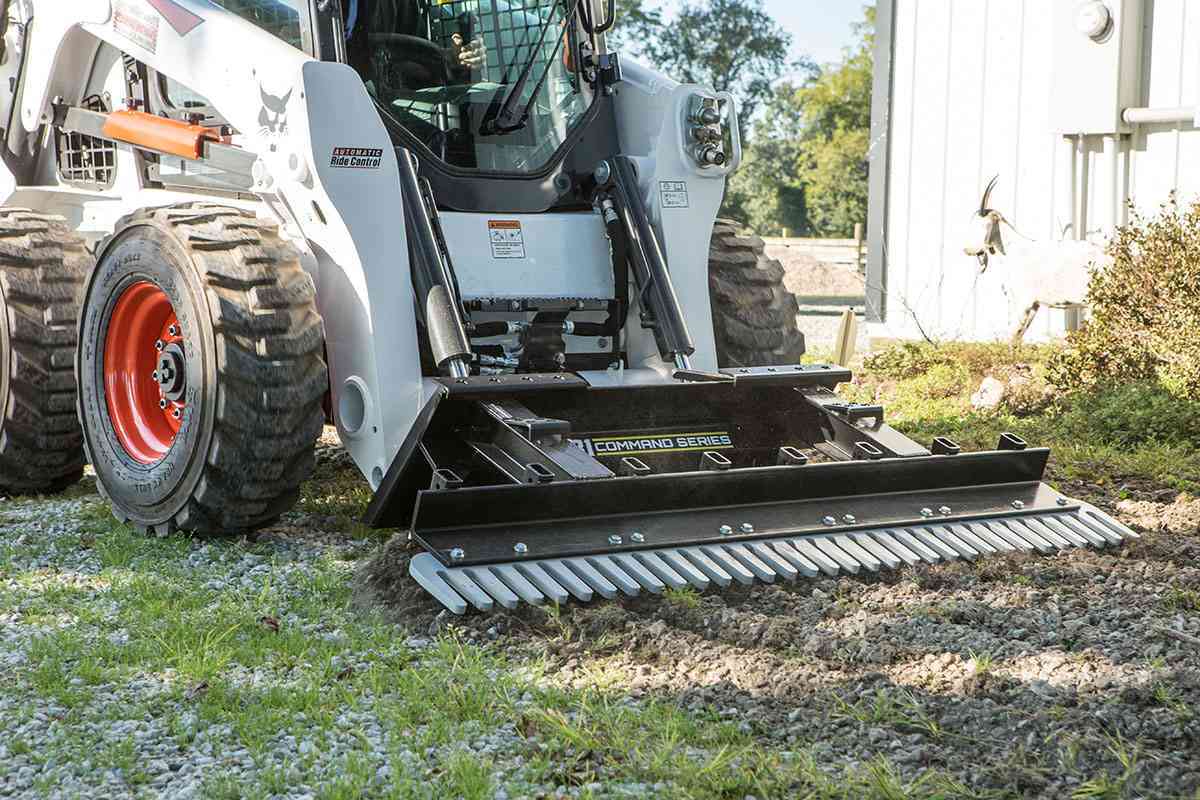

HD Finish Rake
The 3/4"-thick hardened-steel rake gives the SR1 finesse and strength. Push forward to clear vegetation & debris and pull backward to smash dirt clods and leave an ideal seed- or sod-ready finish. Replaceable in 1' sections.
Request A Quote
Request a quote and an ABI Product Specialist will help you find the right attachment for your equipment.
No obligation. We never sell your data.
Prefer to call? 877-788-7253 (Mon-Fri, 9-5 ET)
Specifications
| SR1 Grading Rake | |
|---|---|
| Vehicle Type | Skid Steer |
| Min. Horse Power | 30 |
| Unit Weight | 460 lbs. |
| Max Operating Weight | 7,000 lbs. |
| Raking Width | 78" |
| Grading Width | - |
| Scarifying Width | 66" |
| # of Scarifiers | 8 |
| Hydraulic Scarifiers | - |
| Scarifier Spacing | 9-10" |
| Scarifying Depth | 0-5" |
| Scarifying Tip | Yes - Replaceable (Bolt-On) |
| Hydraulic Ports Needed | - |
| Construction | I-Beam & Angle Iron |
| Rake Material | 3/4" AR Steel - Laser Cut - (Replaceable in sections) |
| Wheels | - |
| 3-Point Tractor Mount | No |
| Skid Steer Mount | Universal |
| Unit Dimensions | 78" W x 39" D x 19" H |
| Warranty | 60-month Warranty |
| We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will continue making you money for a long time. And to back that up, we offer a 60-month limited commercial warranty on this product. That's right, this product is designed for daily use, is built tough enough for commercial applications, and is backed by the longest standard commercial warranty we are aware of in the industry! Rental usage 12-months. See warranty documentation for details. | |
Attributes | |
| SR1 Grading Rake | |
| Connection | Universal (Skid-Steer) |
| Tow Vehicle | Skid-Steer, Compact Track Loader |
| Power Range | 30 – 60 h.p. Skid Steer |
3 Reviews
I received my SR1 yesterday evening. I am more than happy with it. Far exceeded my expectations. After looking at all the different types of these rakes on the market this one stood out for its quality and now that I have it sticking off the end of my machine and have gotten to use it for a couple of hours I could not be happier with it. I was able to take my lower driveway and take it from an uneven lumpy mess and turn it into a surface fit to land a plane on in just a couple hours. The teeth had no issue breaking up the hard pack dirt, and the rake worked perfectly to back drag the surface and get it super flat. I am sure that this thing will pay for itself in no time. Thank you for helping me through this process.
Took only 10-15 minutes to get this adjusted and then it was just amazing how this performed!! It came in a shipping crate that was built just for it and it arrived perfect. Casey was great help with his knowledge. I have never been happier with any tool that I have purchased!! If you are thinking about buying one you must have one ! Quality and Performance unmatched!! Thanks again, Jon @ Indian Trail Garden Center
Took only 10-15 minutes to get this adjusted and then it was just amazing how this performed!! It came in a shipping crate that was built just for it and it arrived perfect. Casey was great help with his knowledge. I have never been happier with any tool that I have purchased!! If you are thinking about buying one you must have one ! Quality and Performance unmatched!! Thanks again, Jon @ Indian Trail Garden Center
