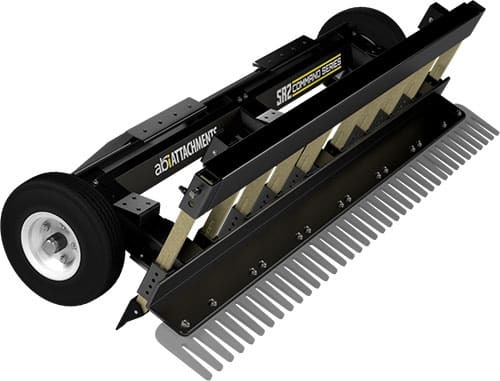

Work Smarter, Not Harder with the ABI SR2
The SR2 is our trusted skid steer attachment for the western market. The SR2 has the versatility to take on any rodeo arena box or practice pen for any footing combination. It is also a pro at clearing and preparing outside tight spaces, edging a building before seeding, and ripping up weeds and old turf around obstacles like wells, sidewalks, landscape edges, and more.
With an I-beam construction, thick hardened-steel finish rake, and hydraulic scarifiers that don’t pull any punches when it comes to tough roots, lifting out rocks, or clearing debris, taking on dirt work just got a whole lot easier.
With the SR2 in your outdoor work arsenal be prepared to finish jobs quicker and more effectively. The SR2’s smaller profile and trusted work ethic make it a sound investment for a western enthusiast or contractor looking to make a maximum impact in their ground and footing.
Image Gallery

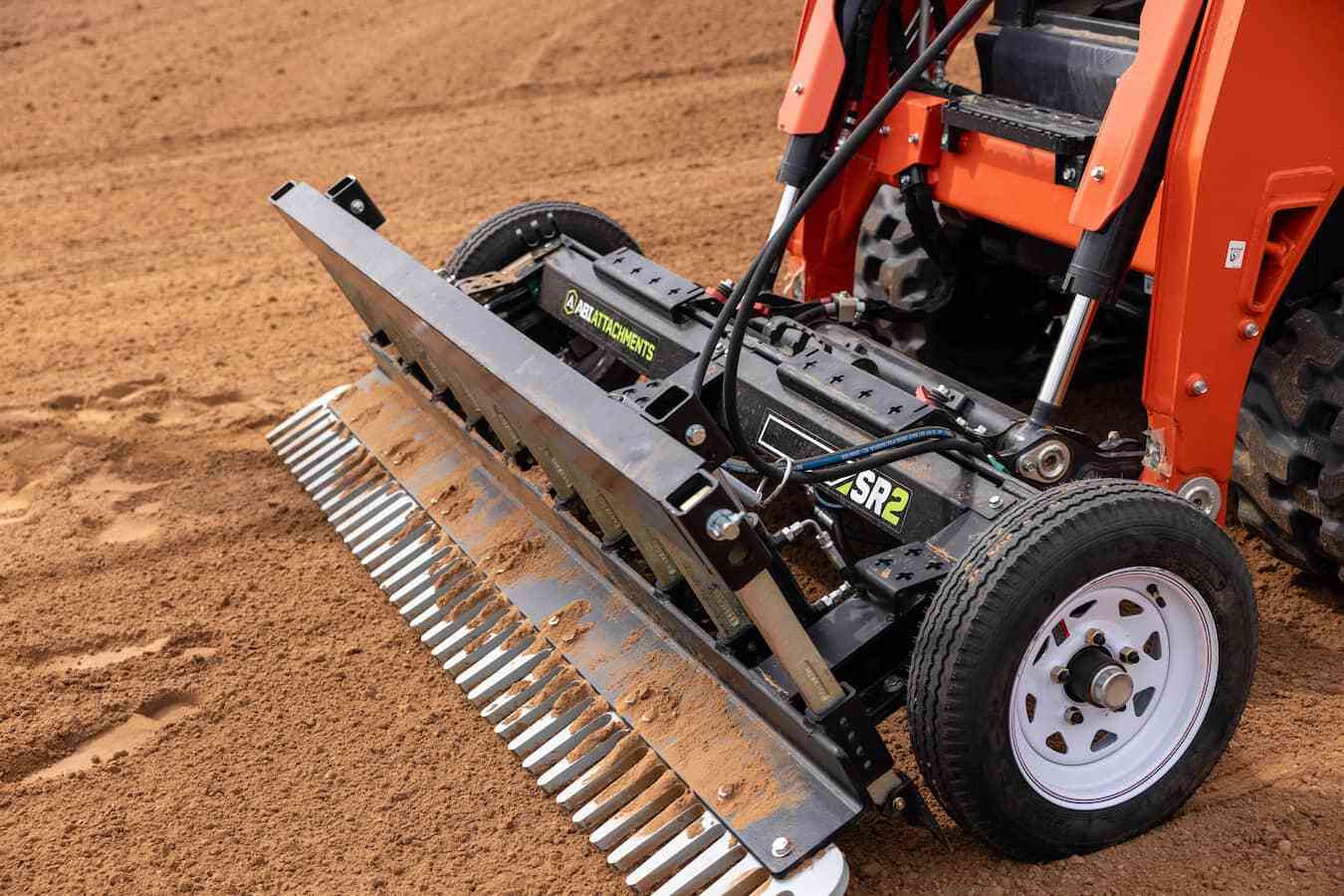

Shad "Money" Mayfield - SR2 Skid Steer Rake
I recommend the SR2 to anybody with a roping arena or barrel racer. It's pretty handy for just about anything.
Shad Mayfield
World Champion Tie-Down Roper

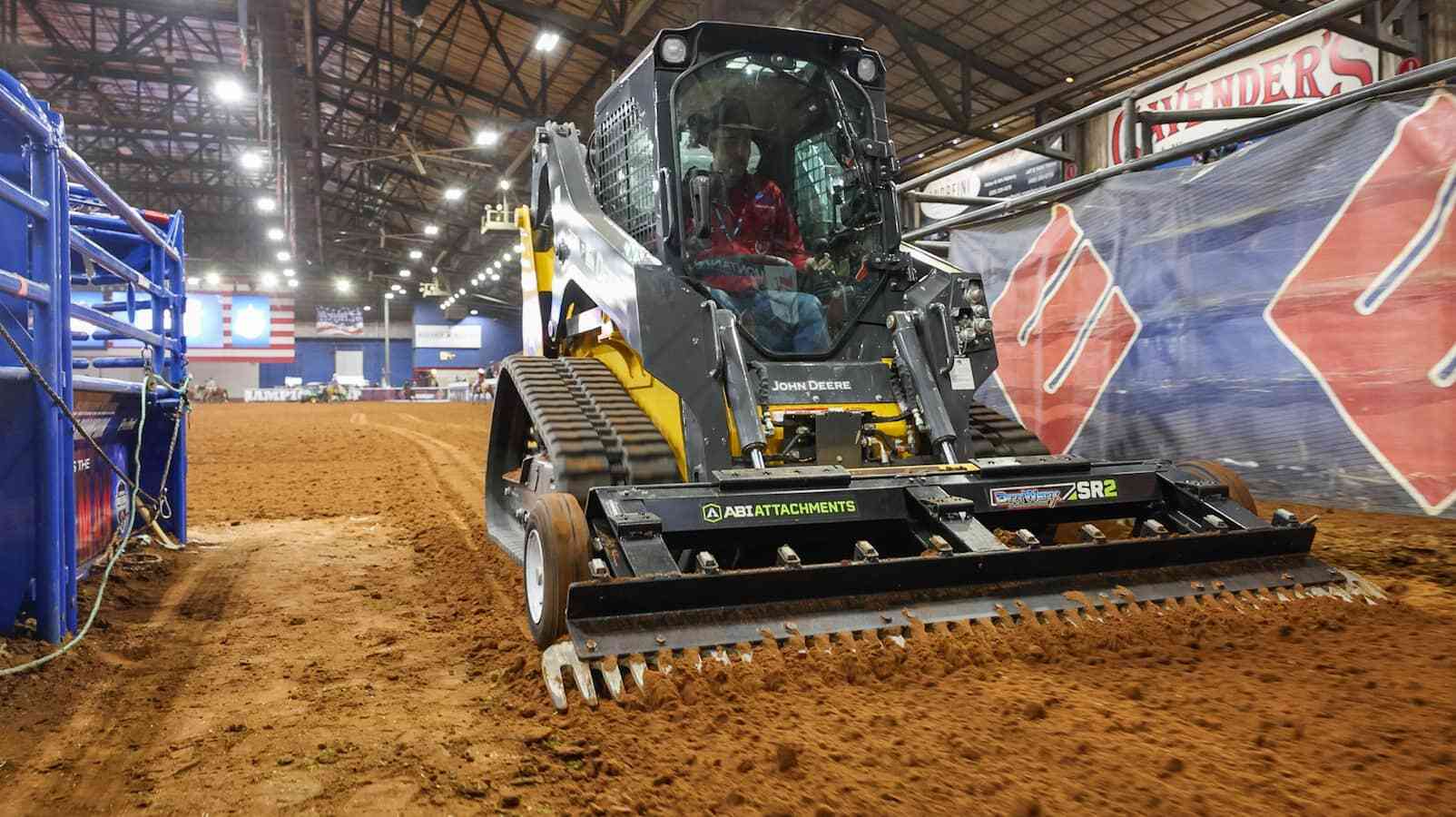

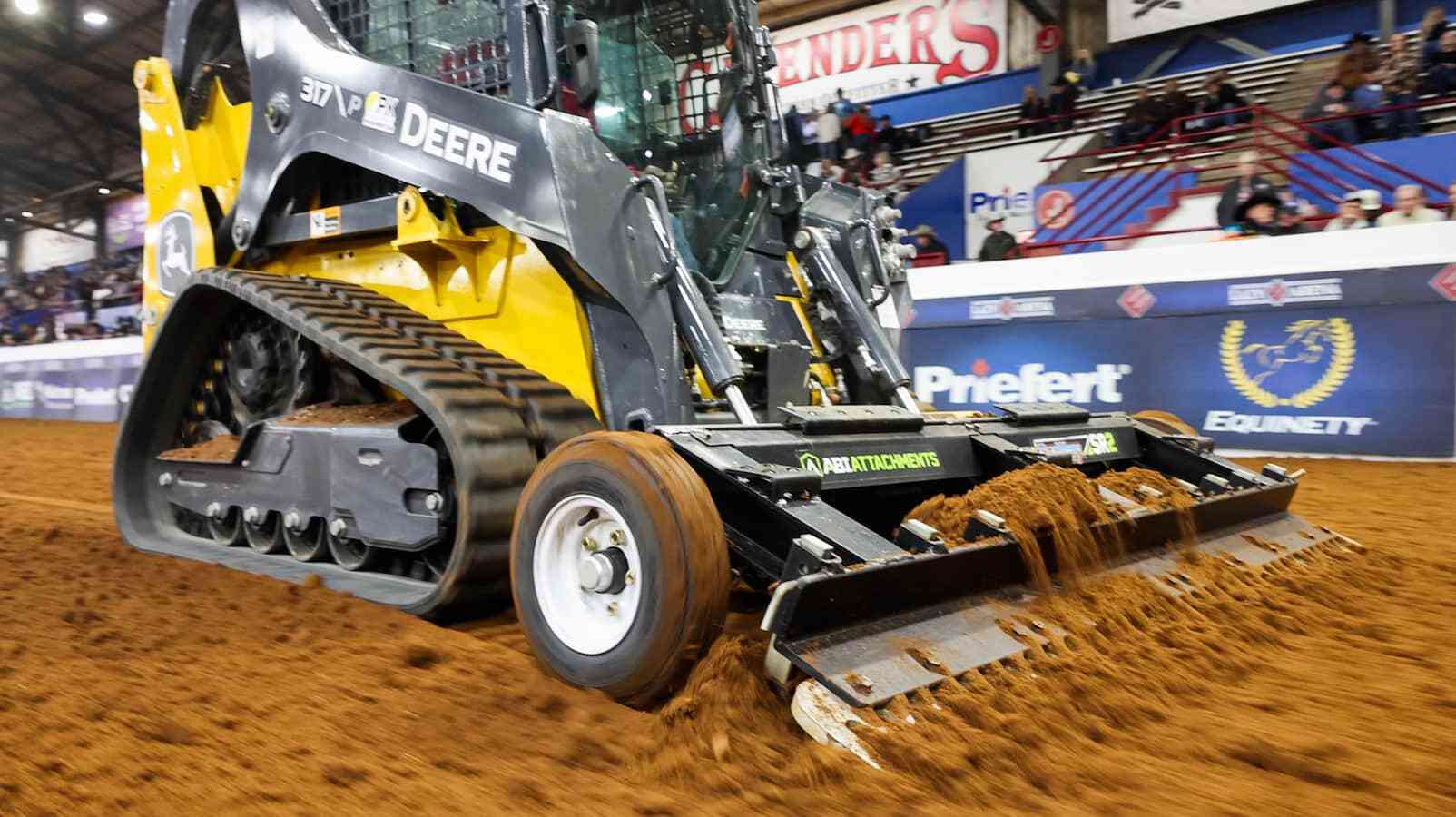

Best in Rodeo - SR2 is the go-to tool for Arena Box Footing
Pens and staging areas break down faster than the arena itself. The SR2 is engineered to rebuild those surfaces by loosening hard-packed footing, restoring depth, and finishing with a level, conditioned surface.
Features

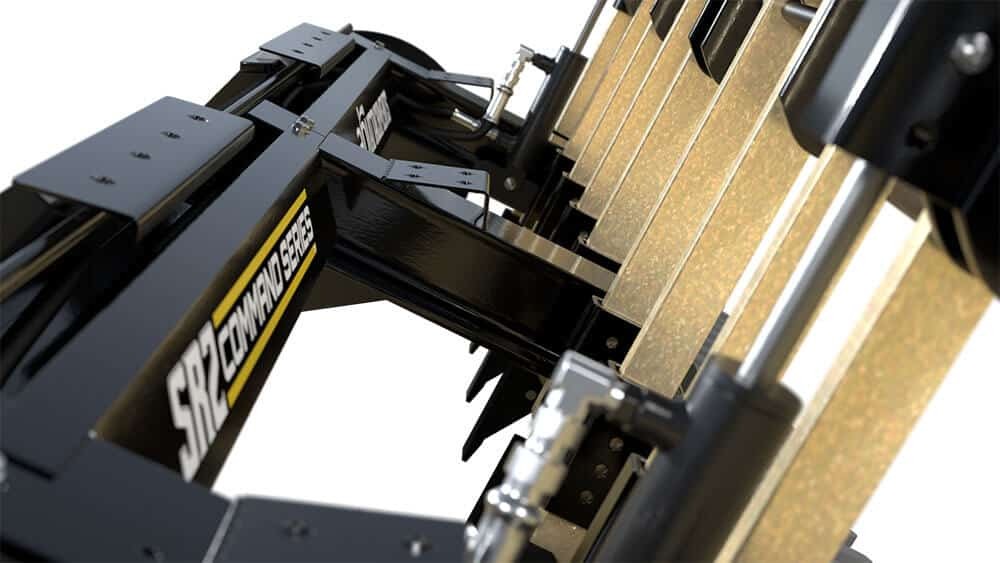

Welded I-Beam Construction
Fully welded for the utmost strength and longevity. The SR2 is designed to work under tough conditions all day, every day.

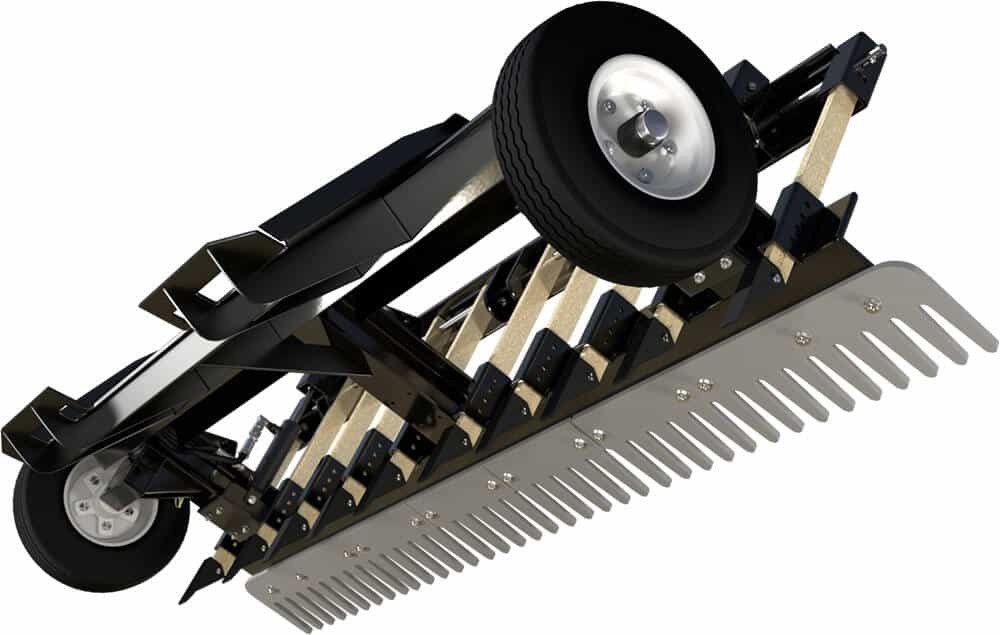

2-in-1 Design
Designed to operate at an angle, the SR2 is an attachment with scarifiers and a rake that work together to create the ideal seedbed, especially along edges.

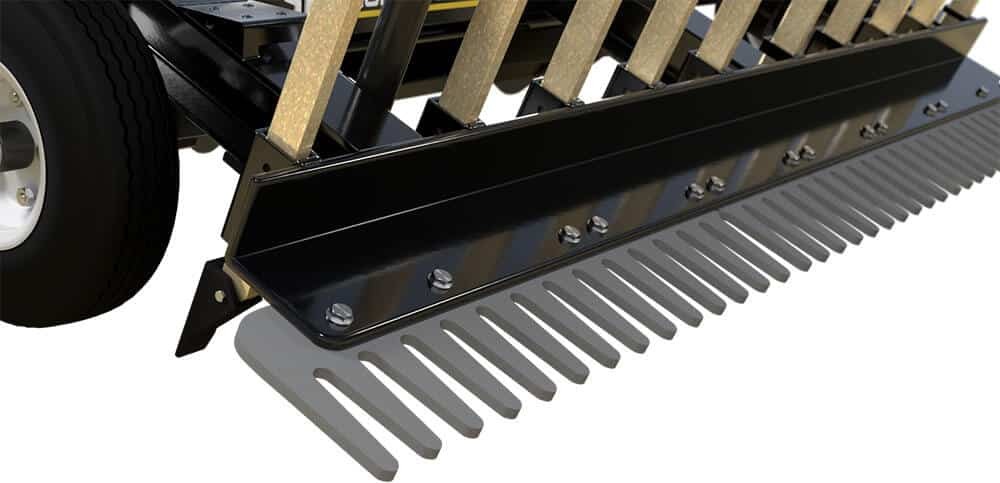

HD Steel Finish Rake
The 3/4"-thick hardened-steel rake gives the SR2 finesse and strength. Push forward to clear vegetation and debris and pull backward to smash dirt clods and leave an ideal seed or sod-ready finish. Replaceable in 1' sections.

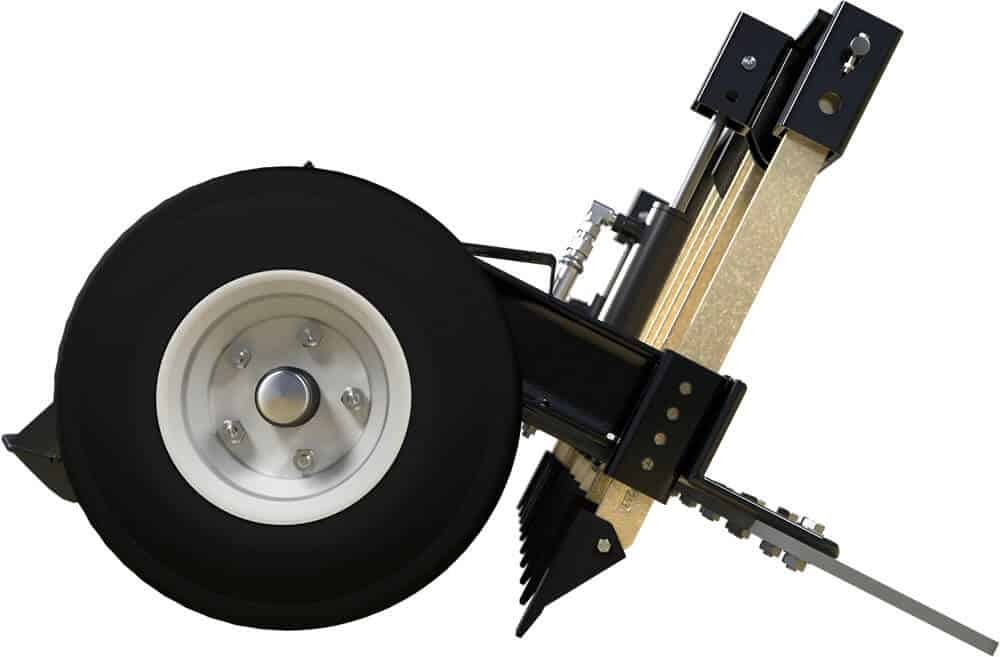

Hydraulic Adjustable Scarifiers
Hydraulic scarifiers loosen the ground from 0-5" with on-the-fly hydraulic depth control. These cast teeth penetrate the hardest of conditions and bolt-on tips keep maintenance costs low.

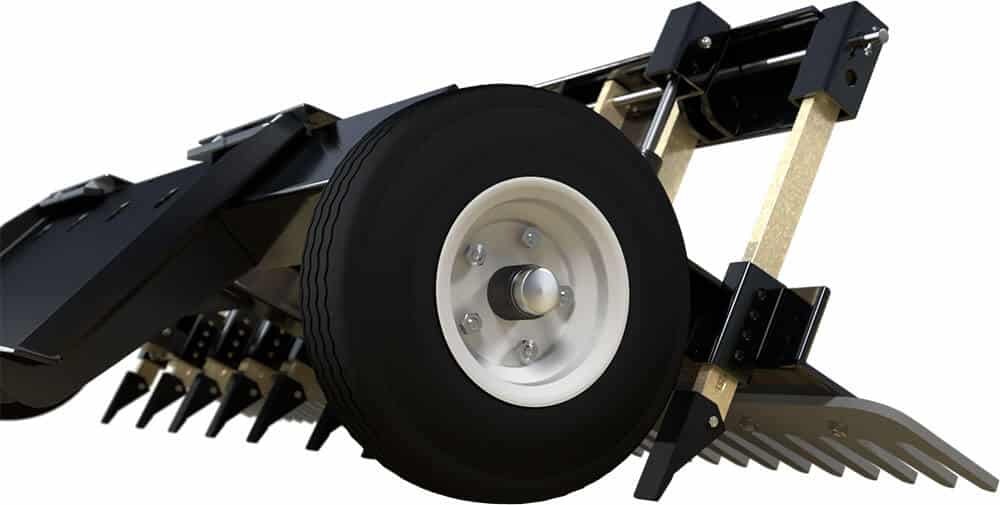

Float & Gauge Tires
12" float and gauge tires allow the skid steer to work in the "float" position to keep the tool consistently engaged with the ground even when operating on rough terrain. The foam-filled tires also provide never-flat durability.
Request A Quote
Request a quote and an ABI Product Specialist will help you find the right attachment for your equipment.
No obligation. We never sell your data.
Prefer to call? 877-788-7253 (Mon-Fri, 9-5 ET)
Specifications
| SR2 Grading Rake | |
|---|---|
| Vehicle Type | Skid Steer |
| Min. Horse Power | 40 |
| Unit Weight | 900 lbs. |
| Max Operating Weight | 10,750 lbs. |
| Raking Width | 89" |
| Grading Width | - |
| Scarifying Width | 79" |
| # of Scarifiers | 10 |
| Hydraulic Scarifiers | Yes |
| Scarifier Spacing | 8-10" |
| Scarifying Depth | 0-3" Adjustable to 5" |
| Scarifying Tip | Yes - Replaceable (Bolt-On) |
| Hydraulic Ports Needed | 1 Set |
| Construction | I-Beam & Angle Iron |
| Rake Material | 3/4" AR Steel - Laser Cut - (Replaceable in sections) |
| Wheels | 12" Foam Filled |
| 3-Point Tractor Mount | No |
| Skid Steer Mount | Universal |
| Unit Dimensions | 90" W x 39" D x 28" H |
| Warranty | 60-month |
| We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will continue making you money for a long time. And to back that up, we offer a 60-month limited commercial warranty on this product. That's right, this product is designed for daily use, is built tough enough for commercial applications, and is backed by the longest standard commercial warranty we are aware of in the industry! Rental usage 12-months. See warranty documentation for details. | |
Attributes | |
| Product Type | Driveway Graders, Landscape Rakes, Grading Blades |
| Connection | Universal (Skid-Steer) |
| Tow Vehicle | Skid-Steer, Compact Track Loader |
| Power Range | 40 – 100 h.p. Skid Steer |
| Size | 7.5Ft (90In) Width |
| Market | Landscape Contractors, Property Owners |
